Images of frustration

Here are some more detailed pictures of the machine. I have started to check out the functionality. The frustration comes from the vacuum switches - as expected.


1024x768    Full size

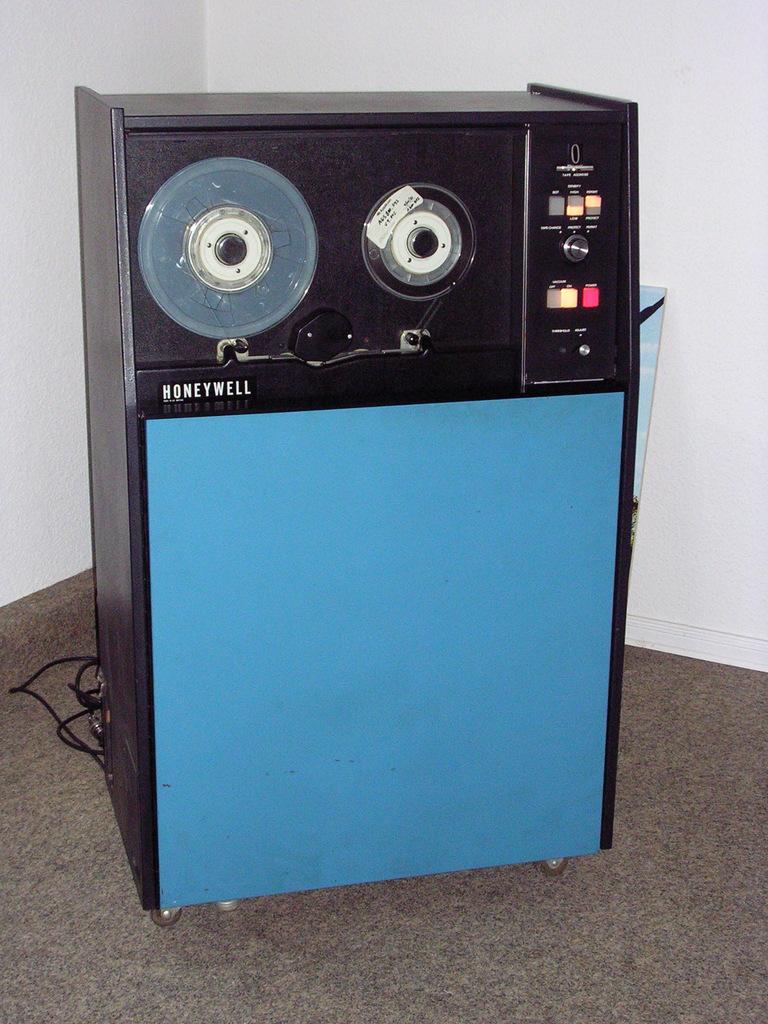

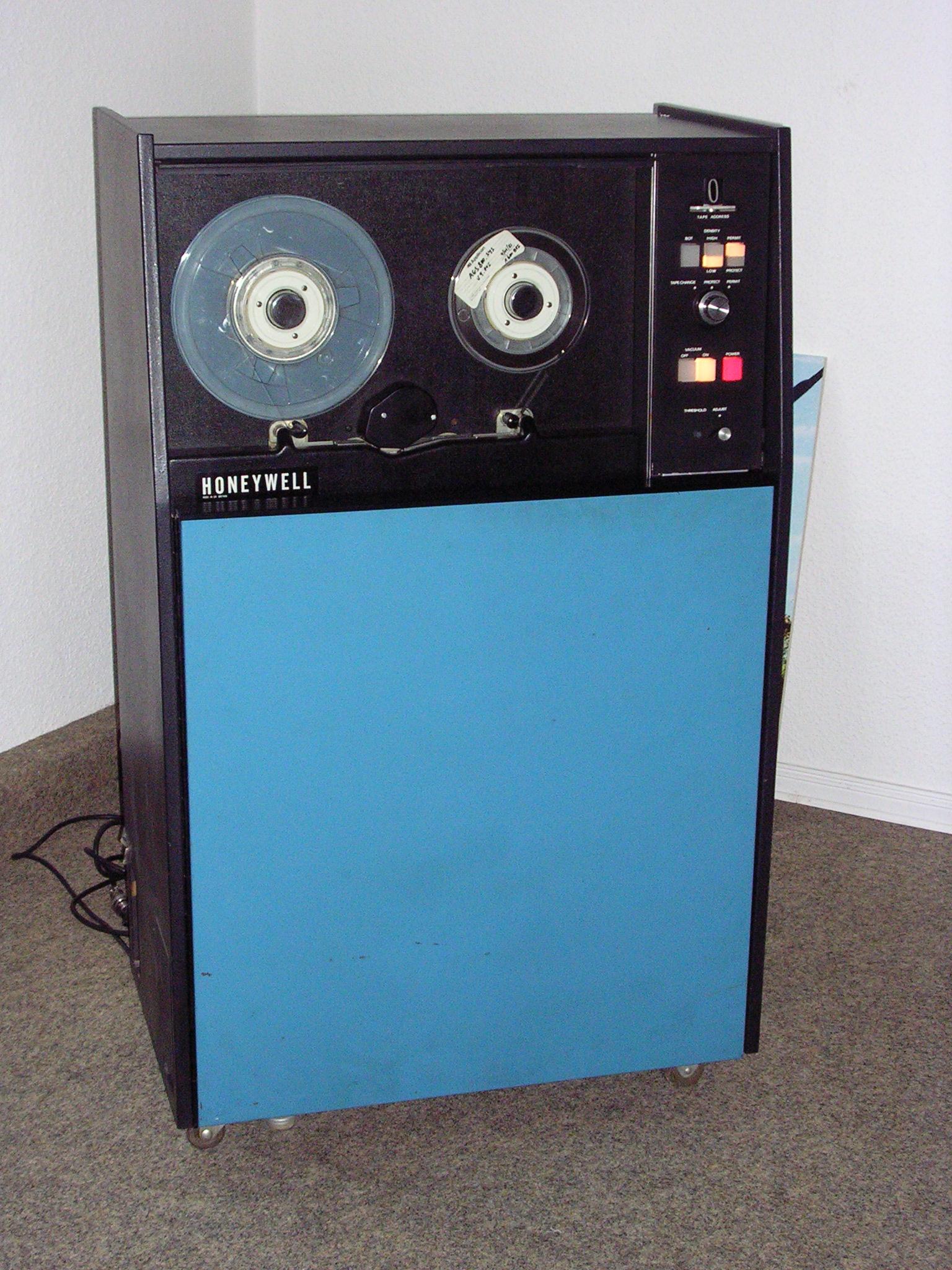

  Here you see a full front view of the machine while powered up.


1024x768    Full size

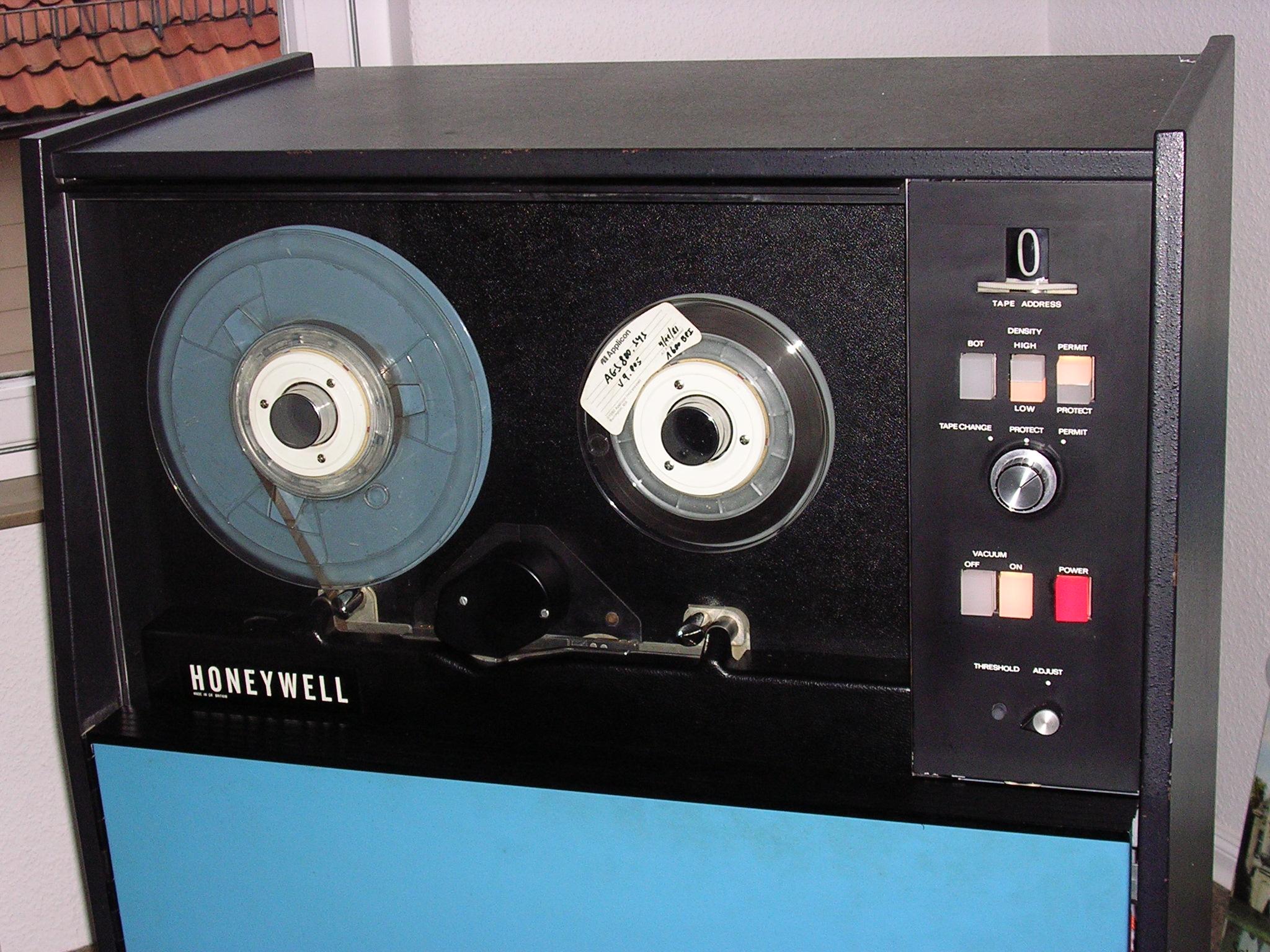

  The upper half of the front.


1024x768    Full size

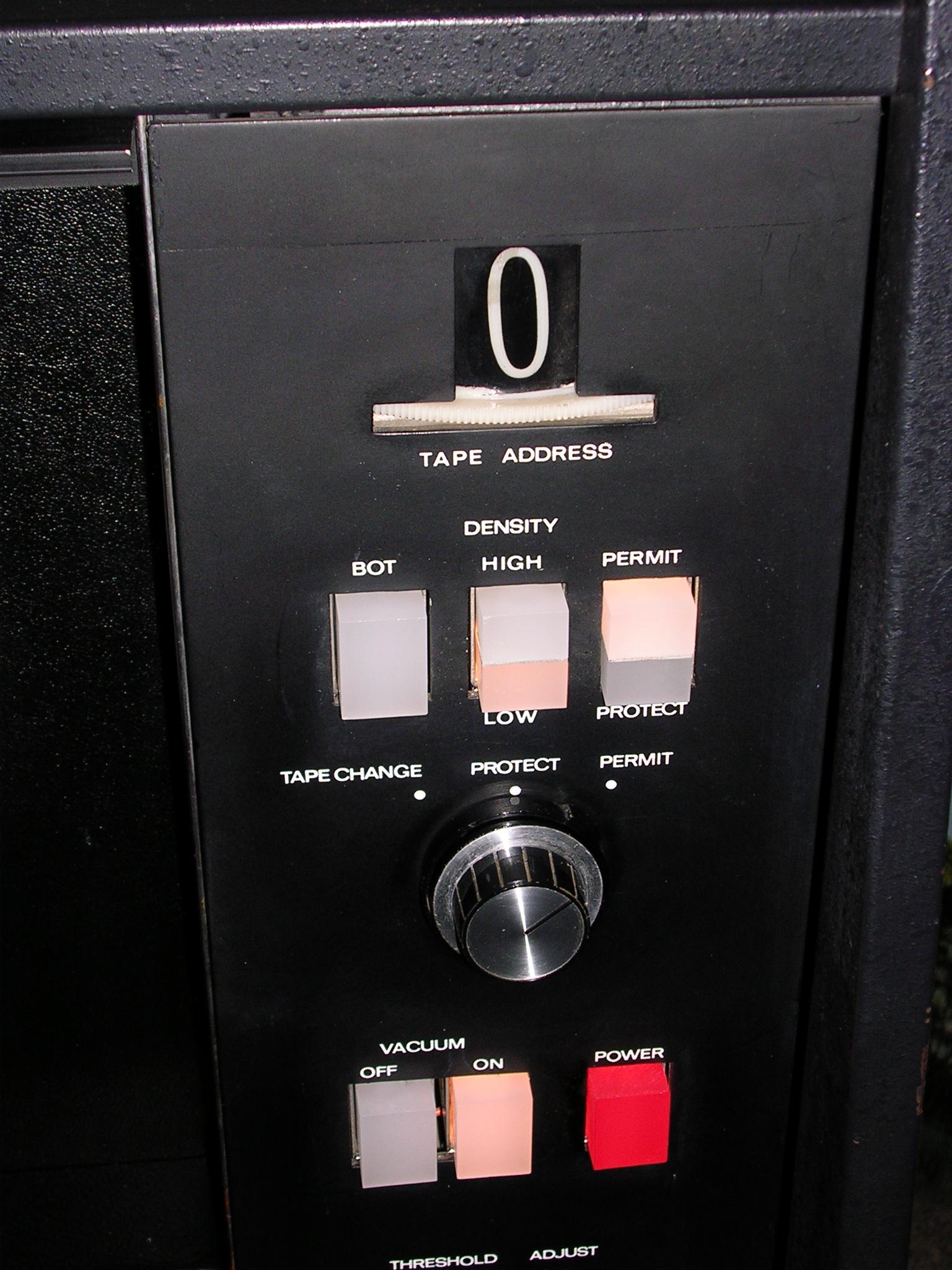

  The front panel controls


1024x768    Full size

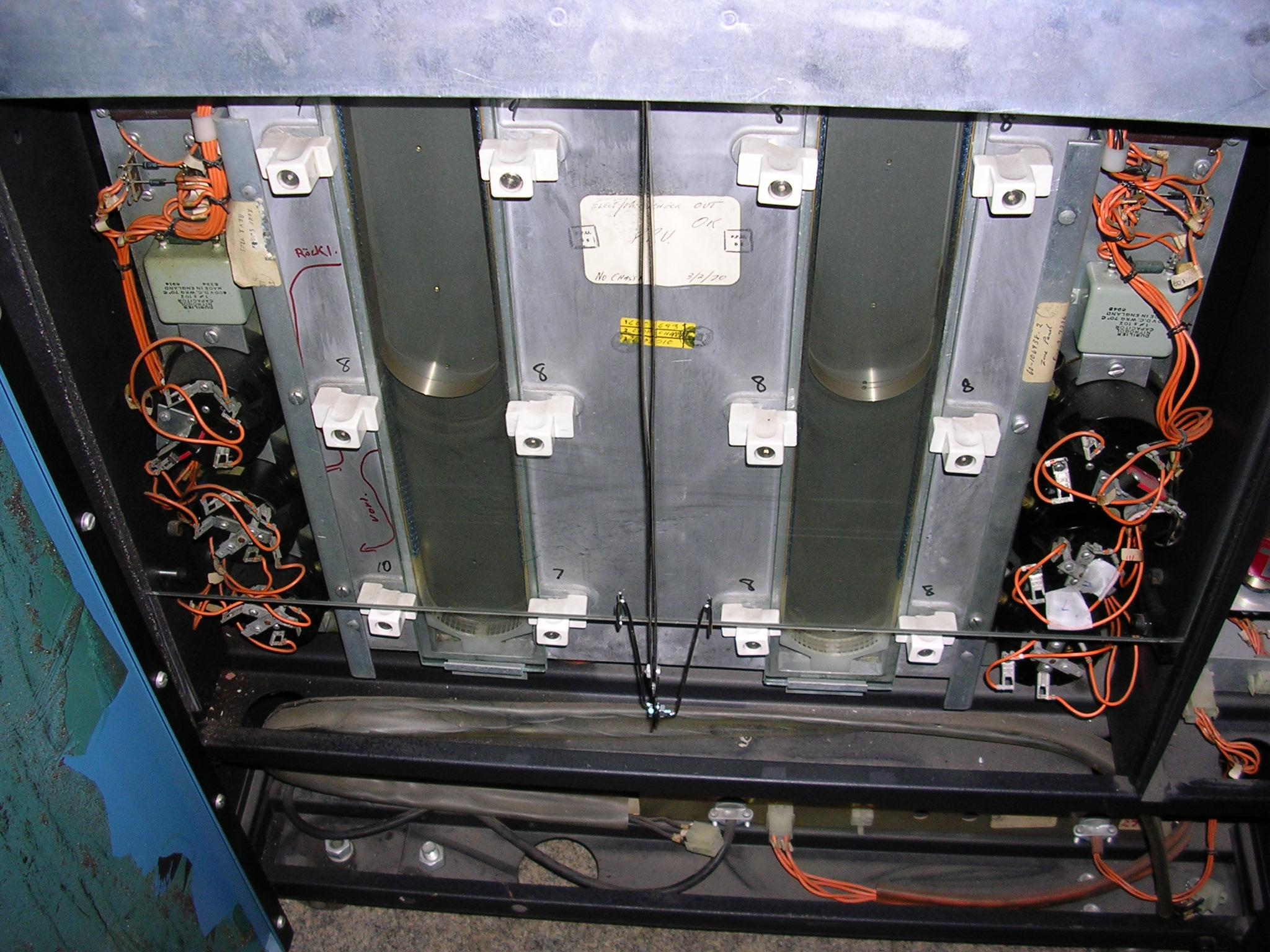

  The vacuum columns with a tape loaded.


1024x768    Full size

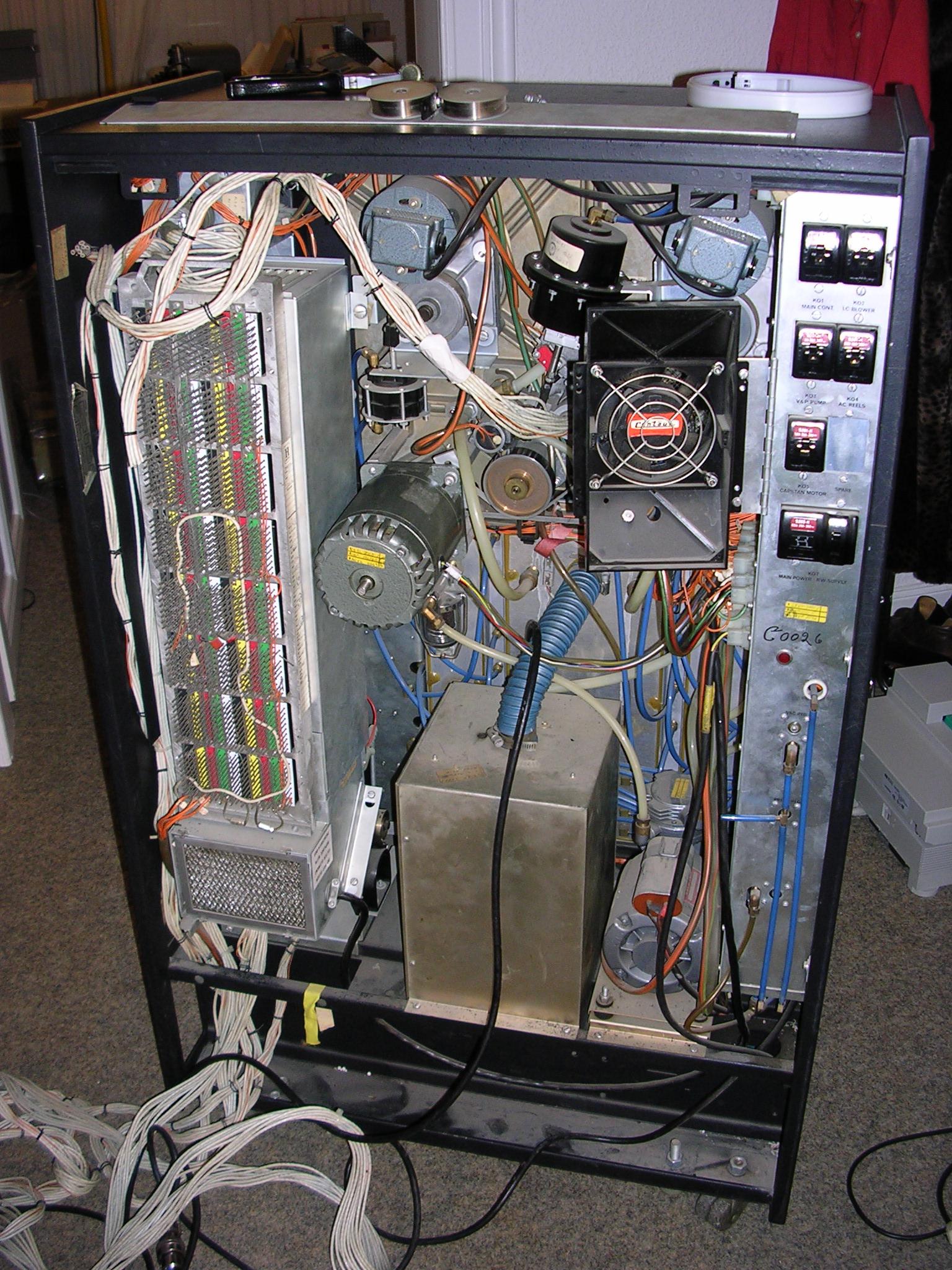

  The machine's backside


1024x768    Full size

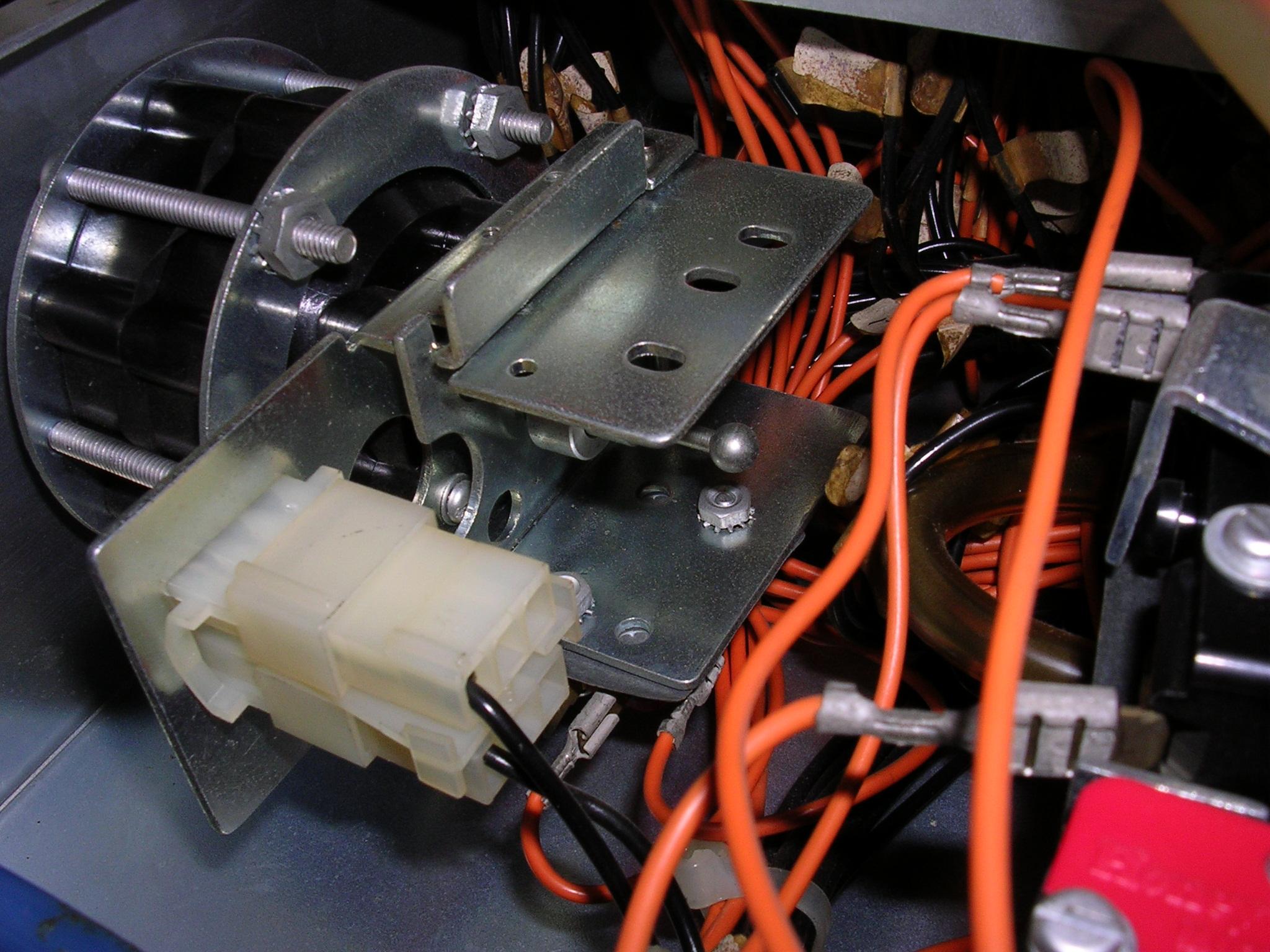

  The capstan belt is back in place, and the motor as well.


1024x768    Full size

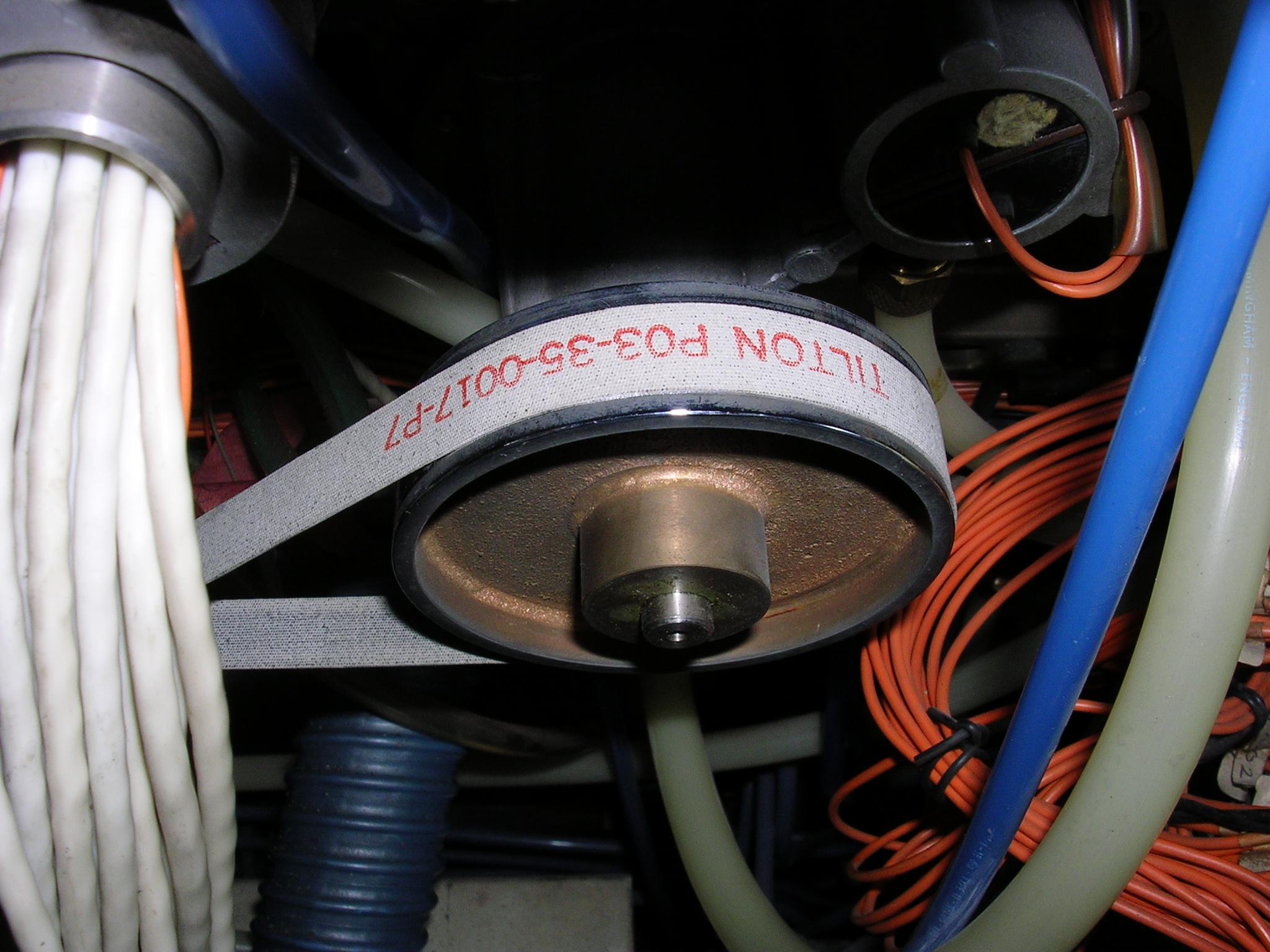

  Where to get such a belt???


1024x768    Full size

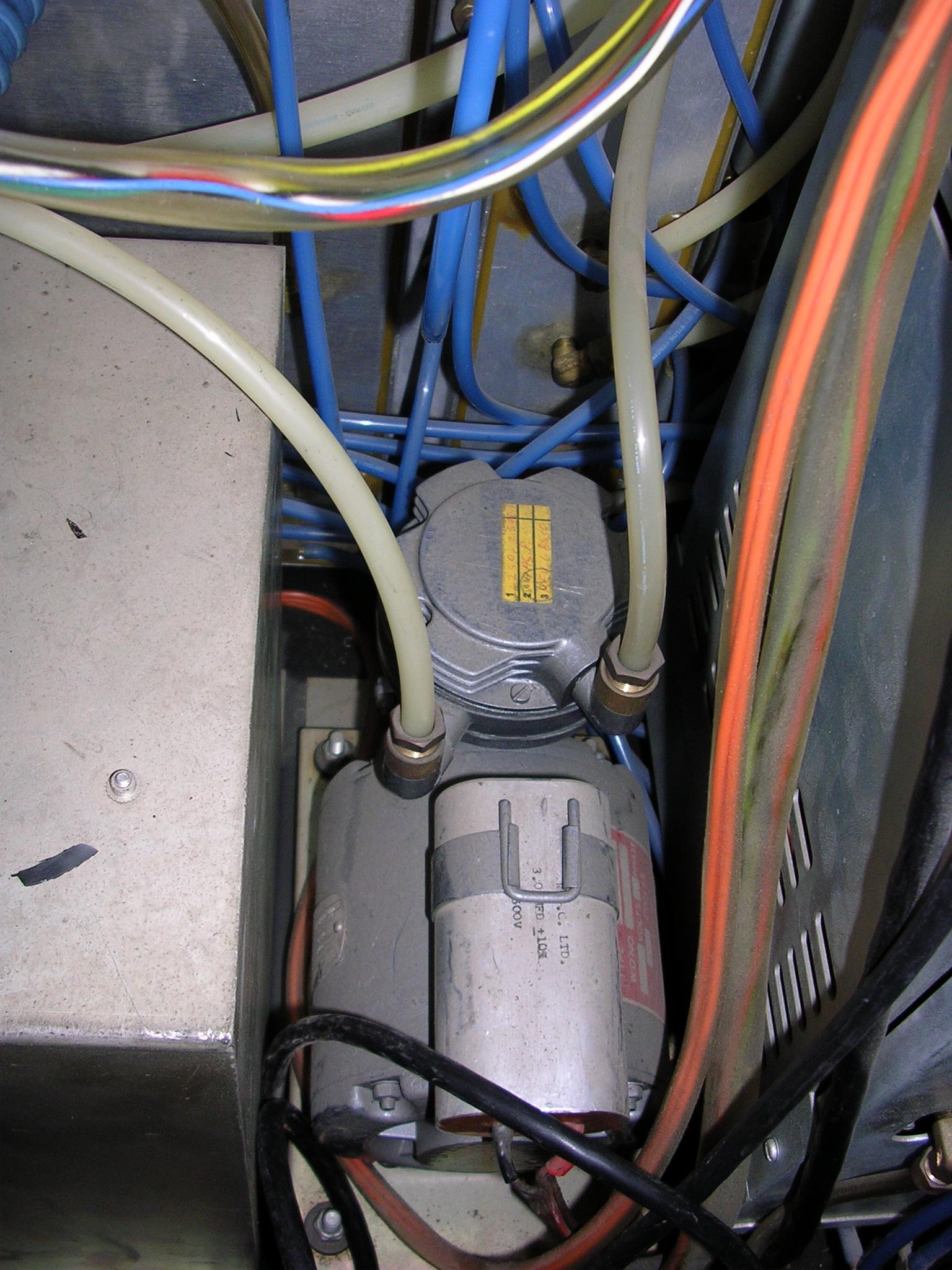

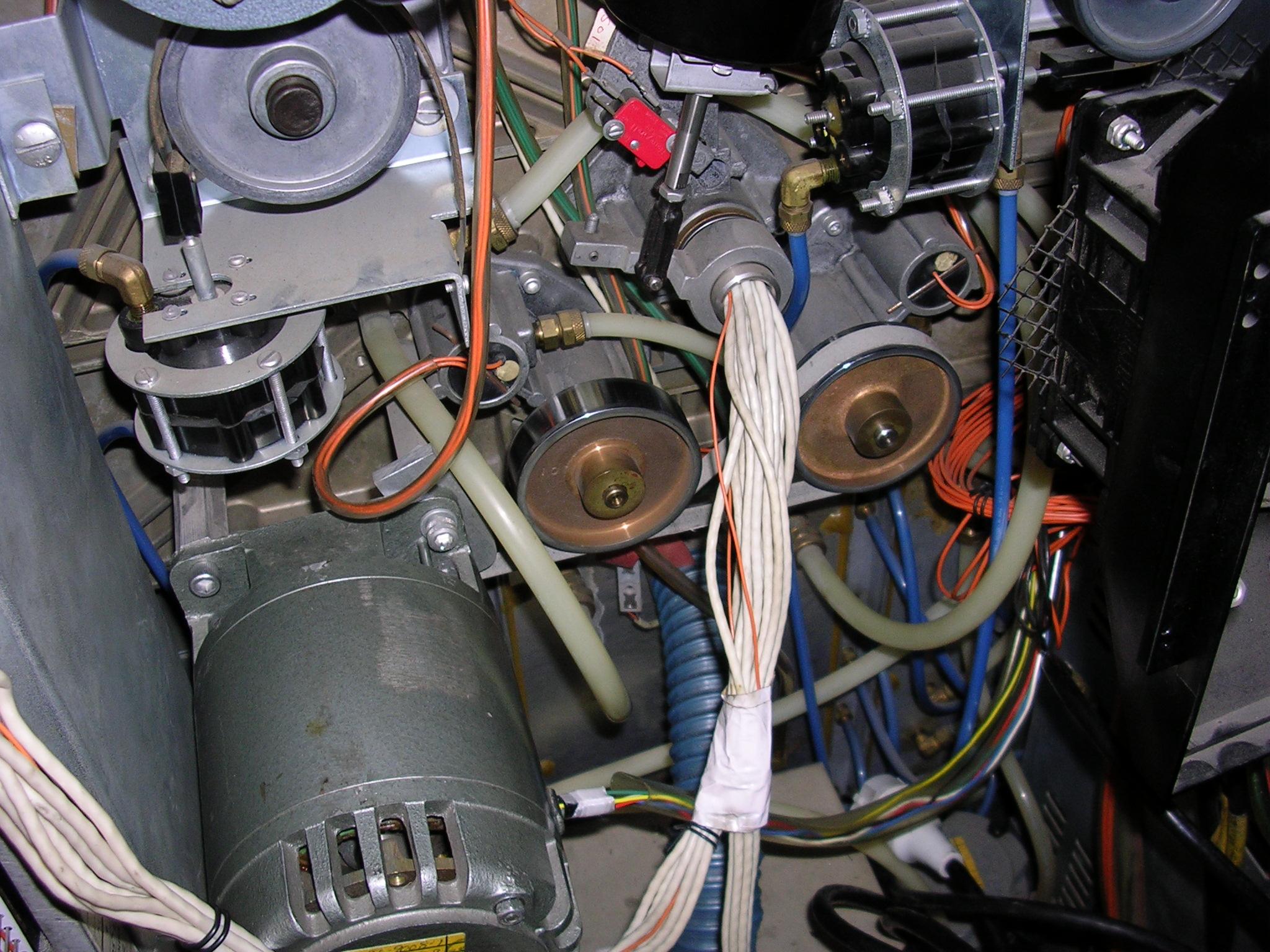

  The compressor/vacuum pump


1024x768    Full size

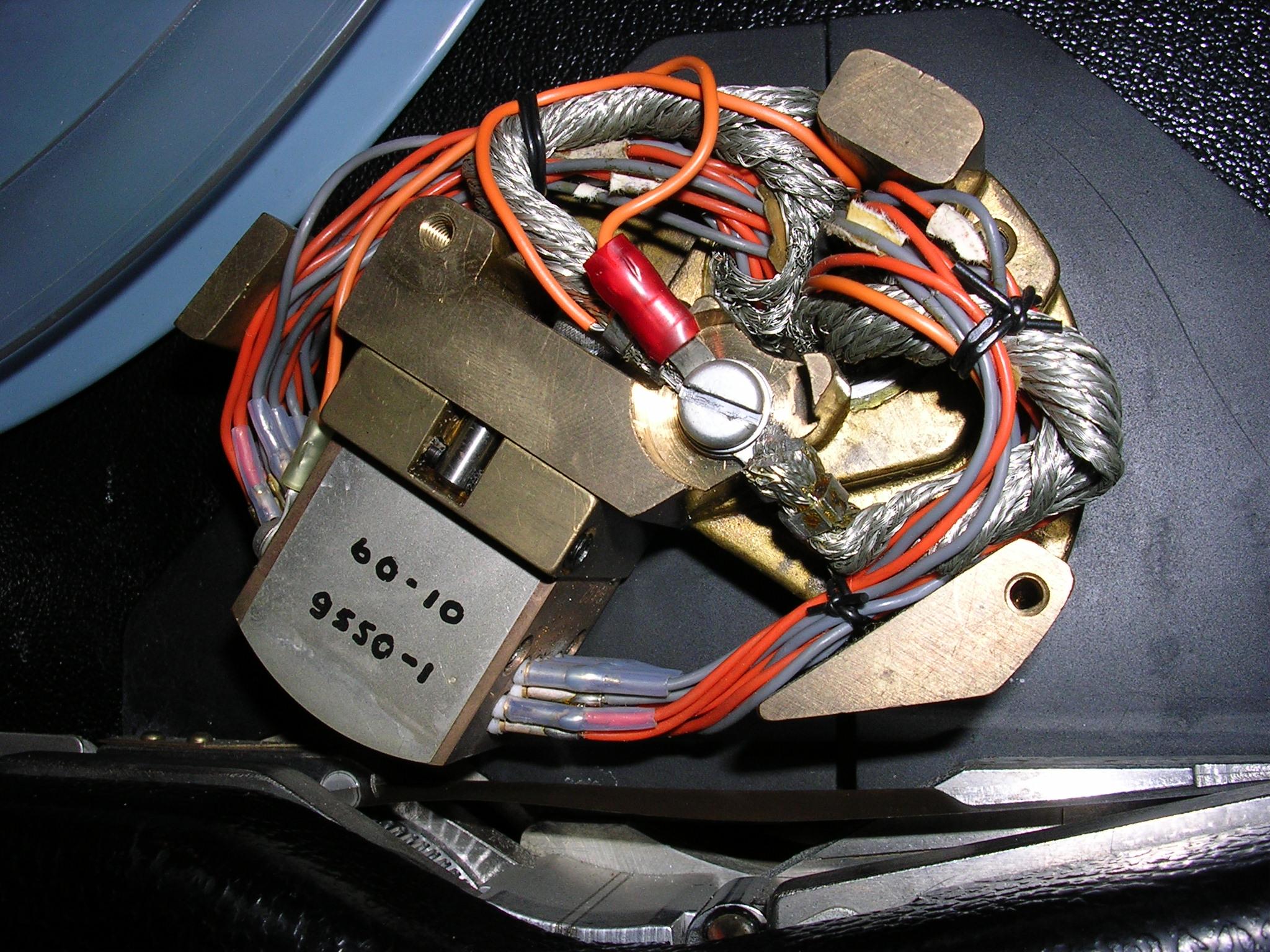

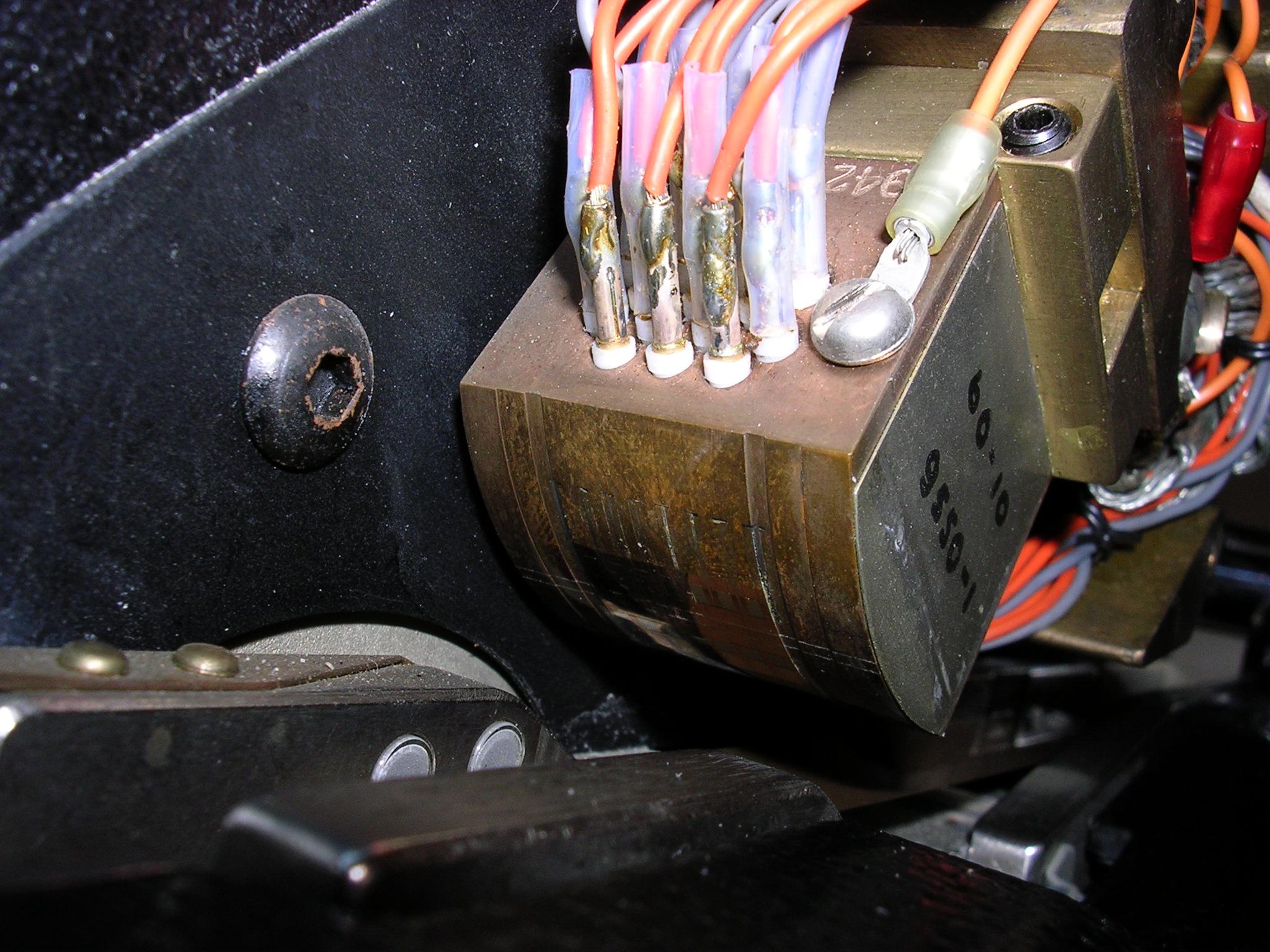

  This is the read-write head assembly in the upper position.


1024x768    Full size
  The head again


1024x768    Full size
  A loop chamber zone switch


1024x768    Full size

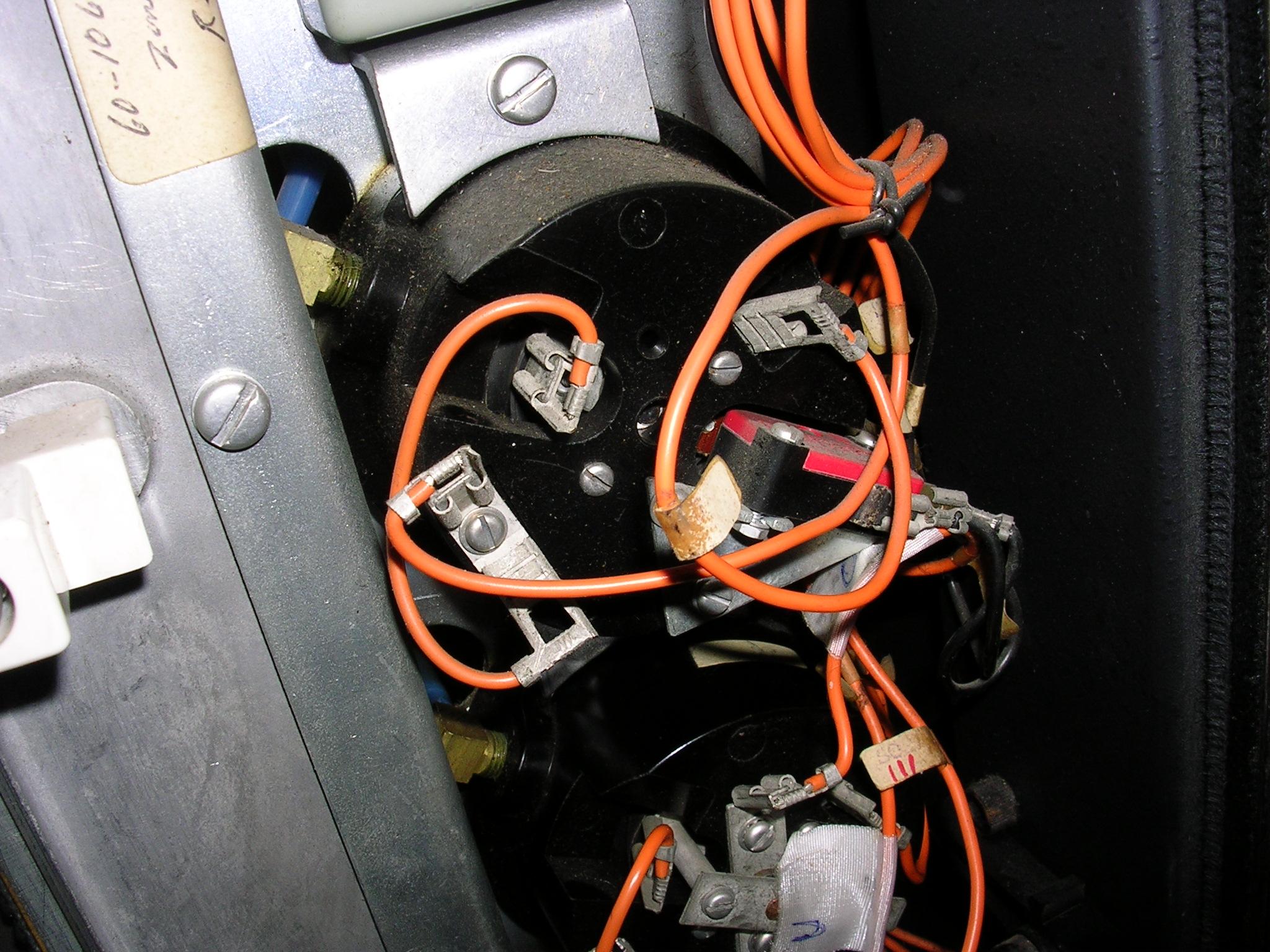

  Column switches... uh oh....


1024x768    Full size

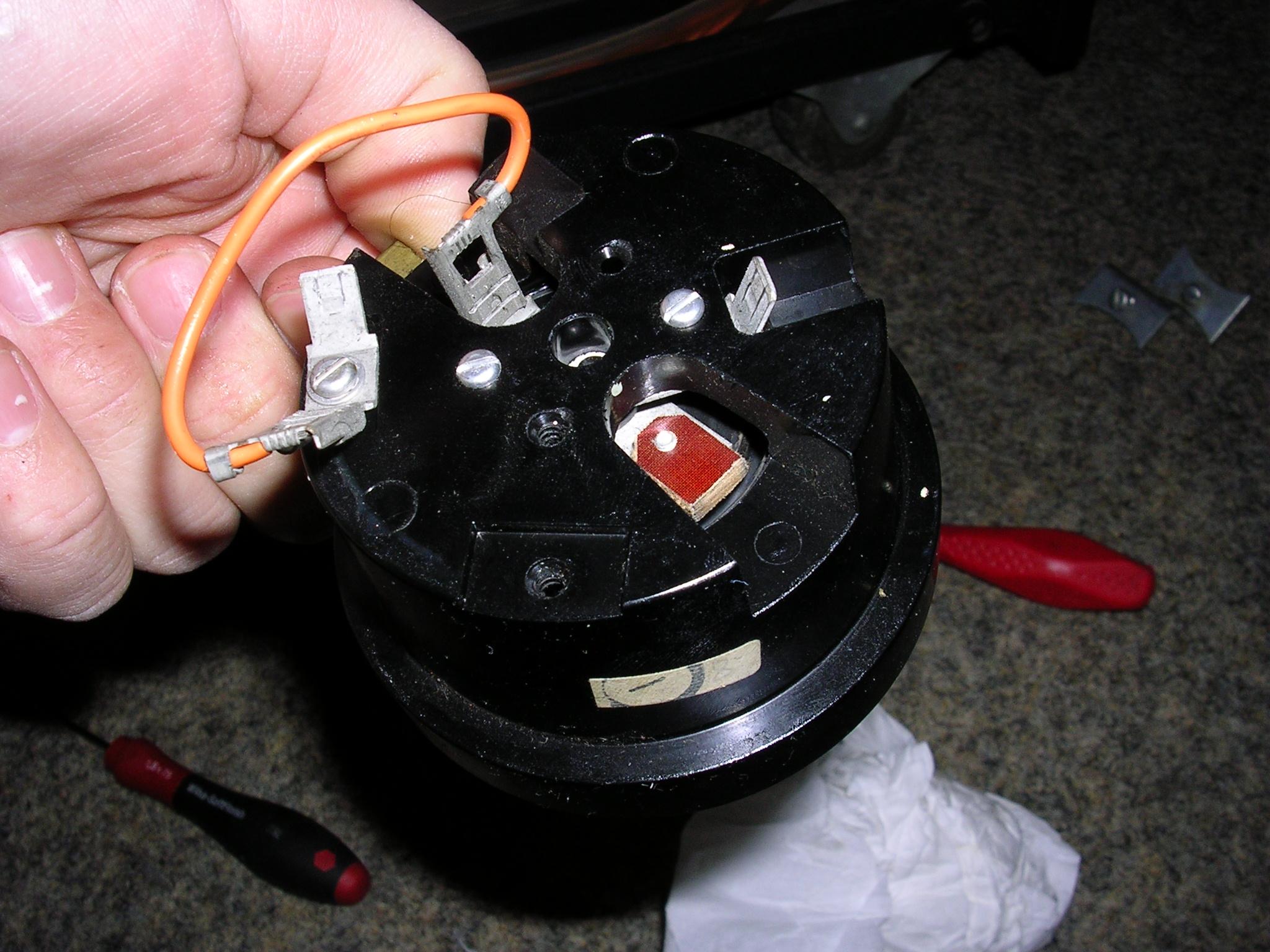

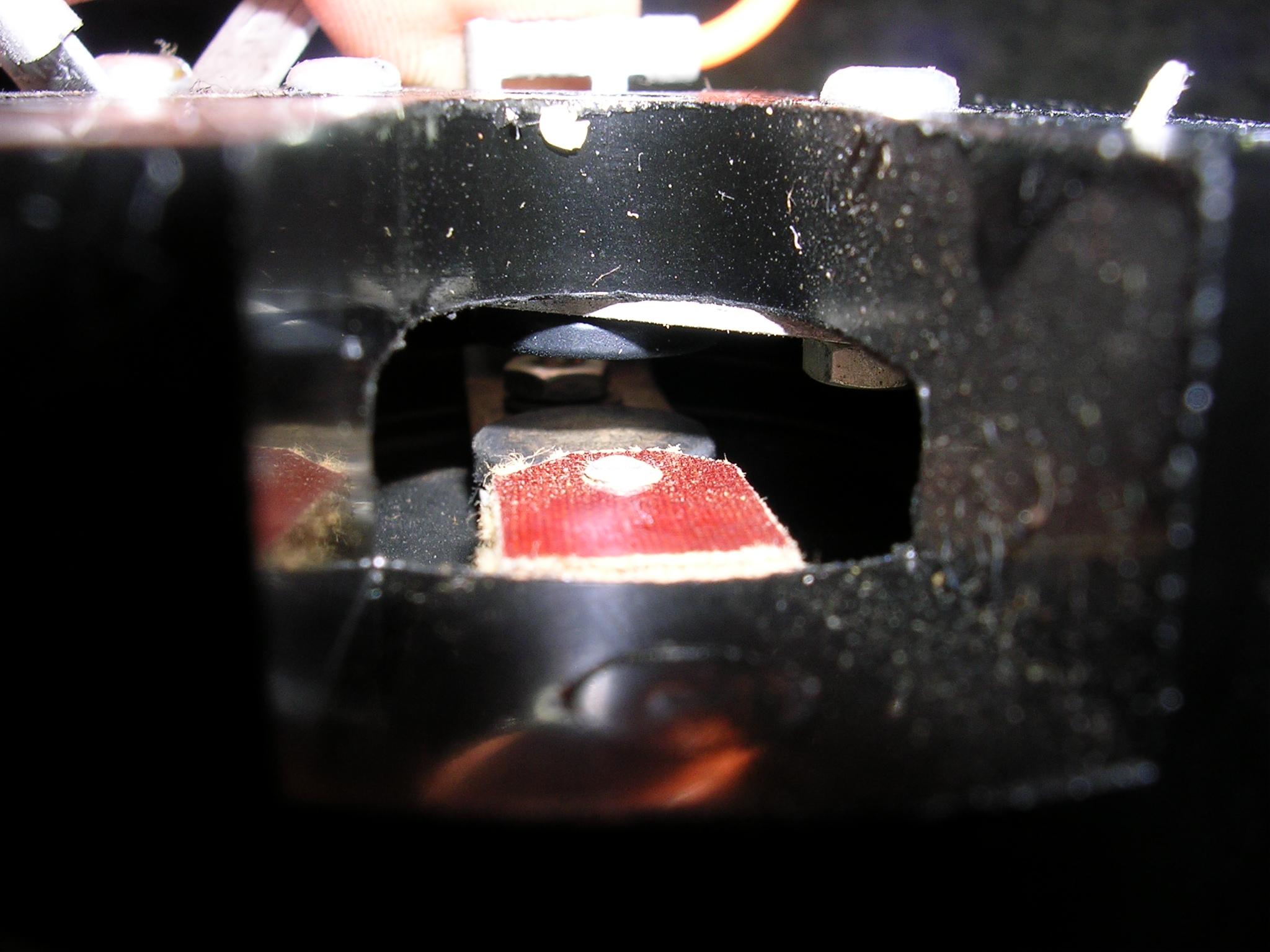

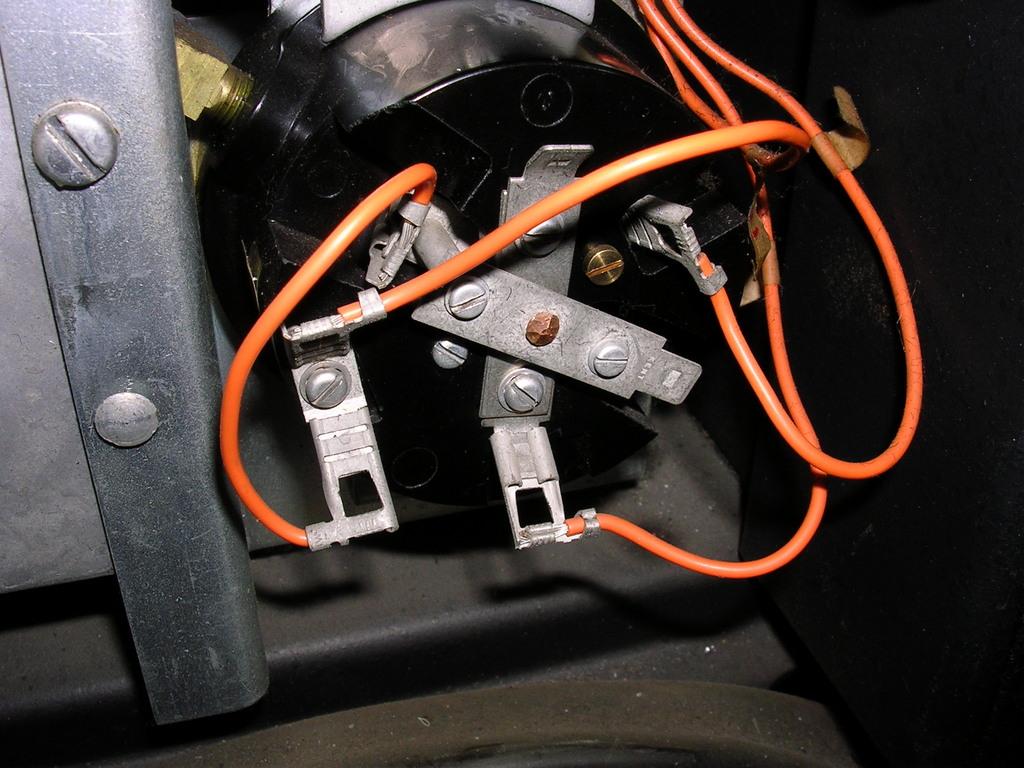

  Here you can see the top contact.


1024x768    Full size
  The place where the swich has been removed from. Oh, you have to turn your head upside-down....


1024x768    Full size

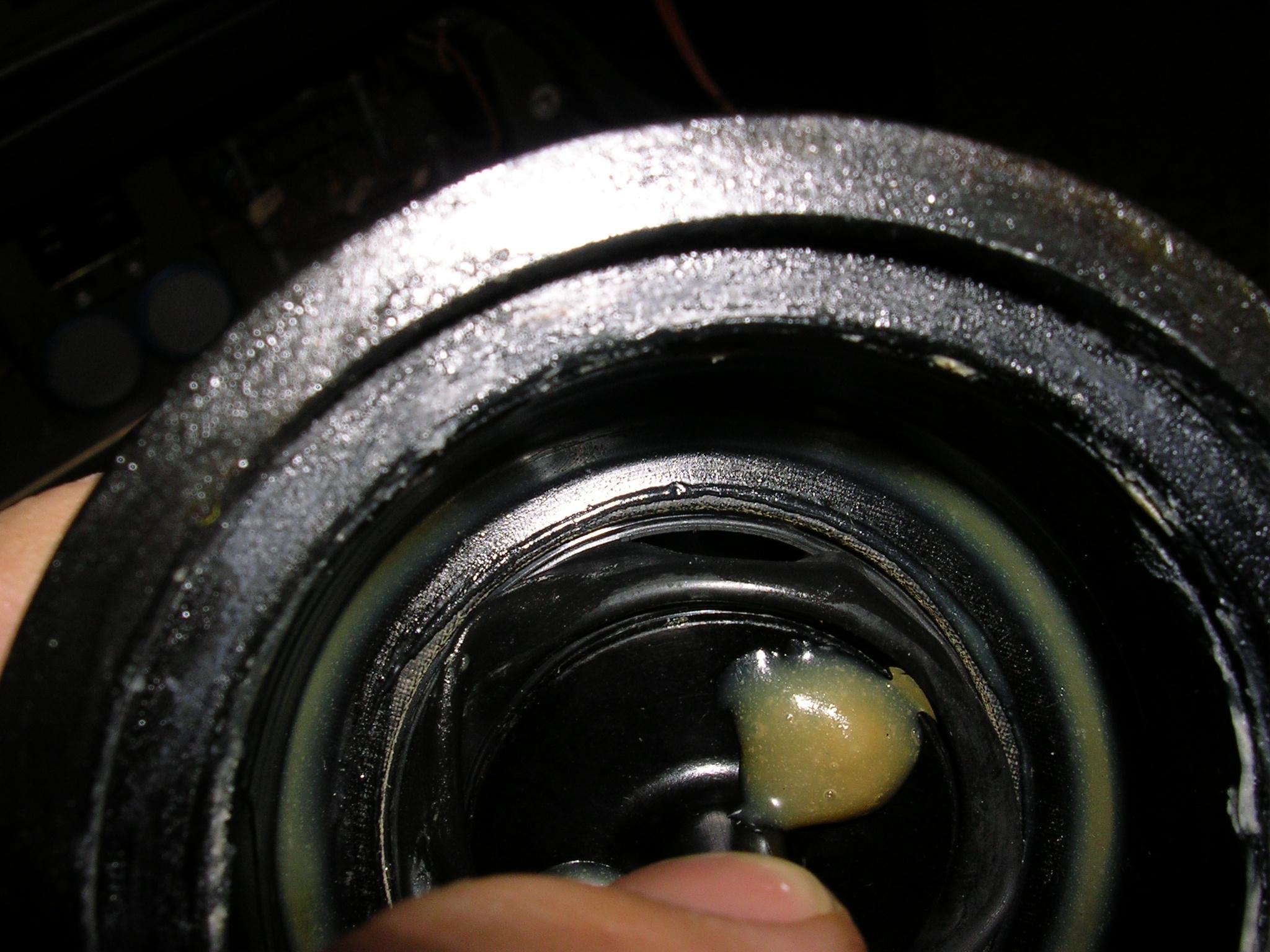

  This is the underside of one of the zone switches. The white greasy stuff is "Dow Corning vacuum grease". Don't know where to buy it. Is needed to correctly reassemble and remount the switches.


1024x768    Full size

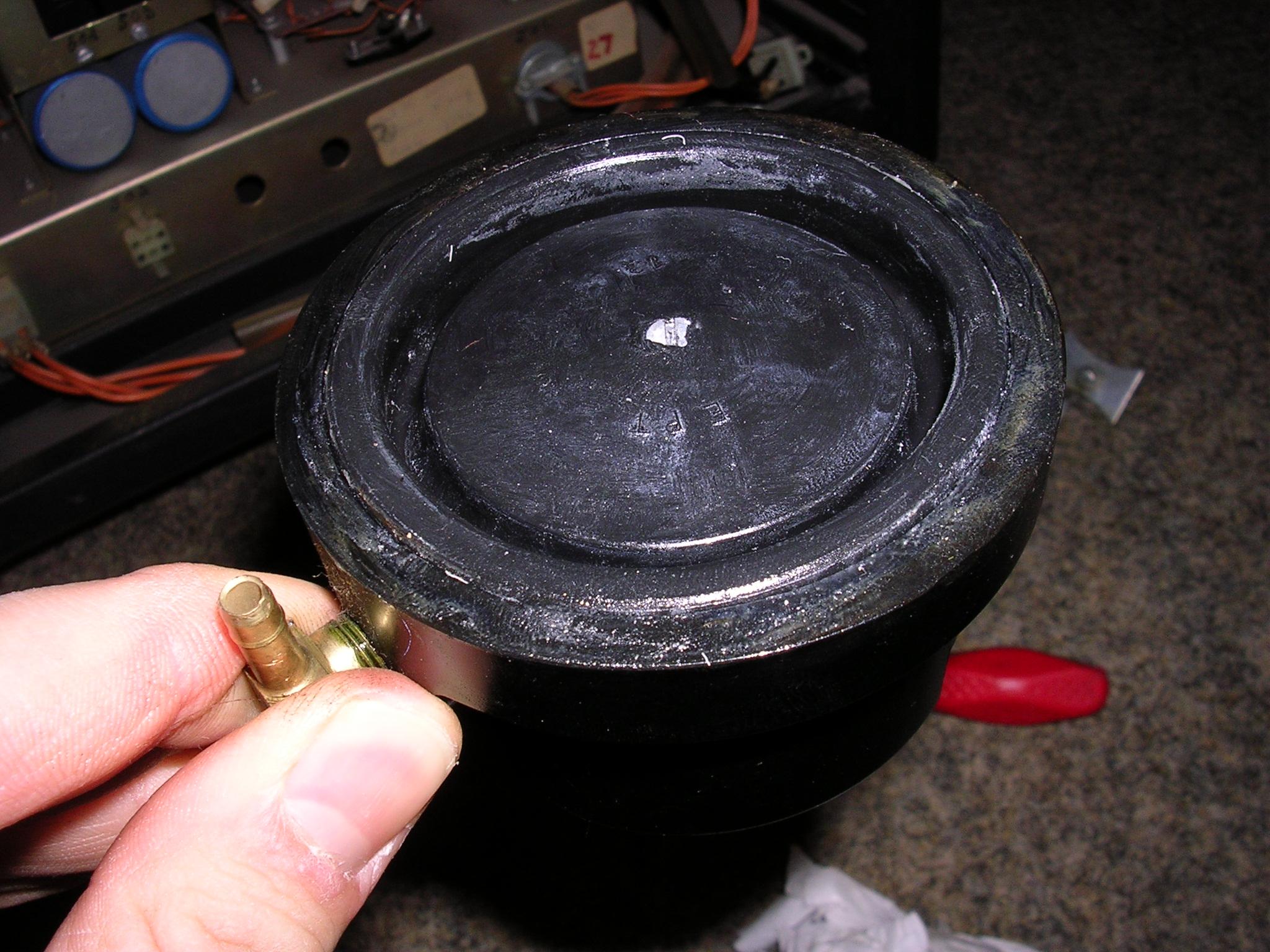

  Upper side of the removed switch


1024x768    Full size

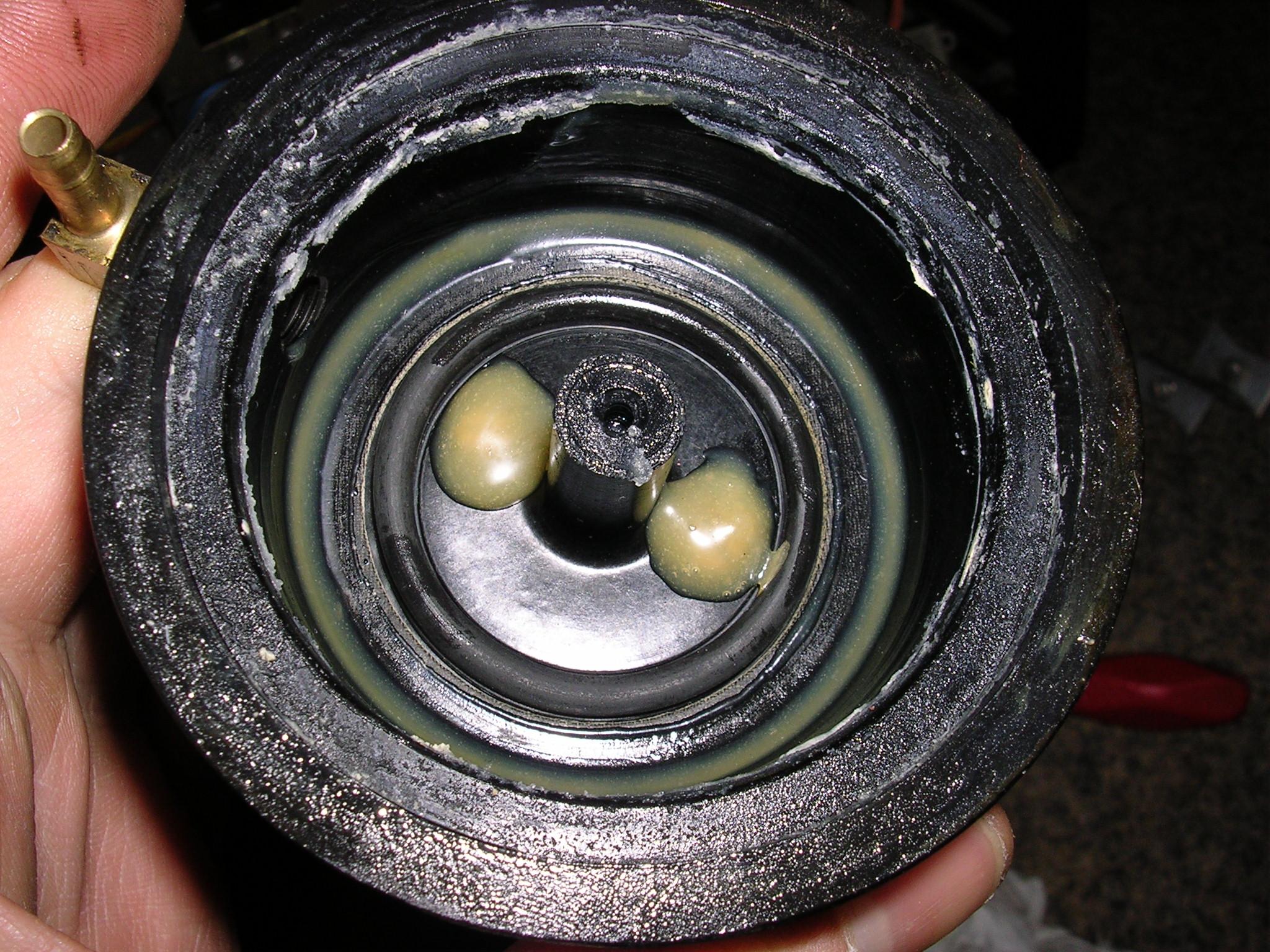

  Interior of the switch after removal of lower membrane (which is not broken). But the upper membrane which is not easily removable (see the glue) is broken.


1024x768    Full size
  There's he whole :-(


1024x768    Full size

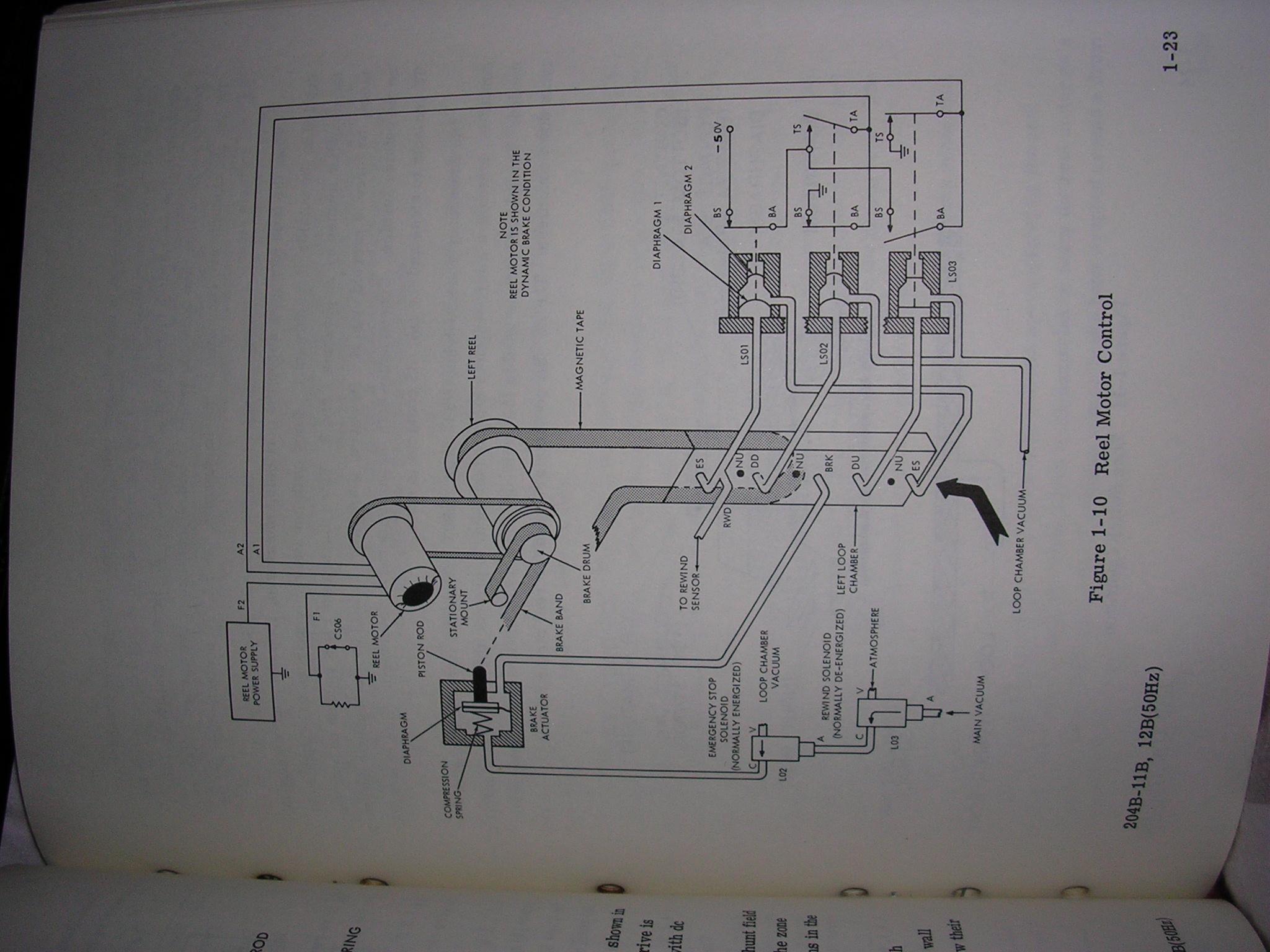

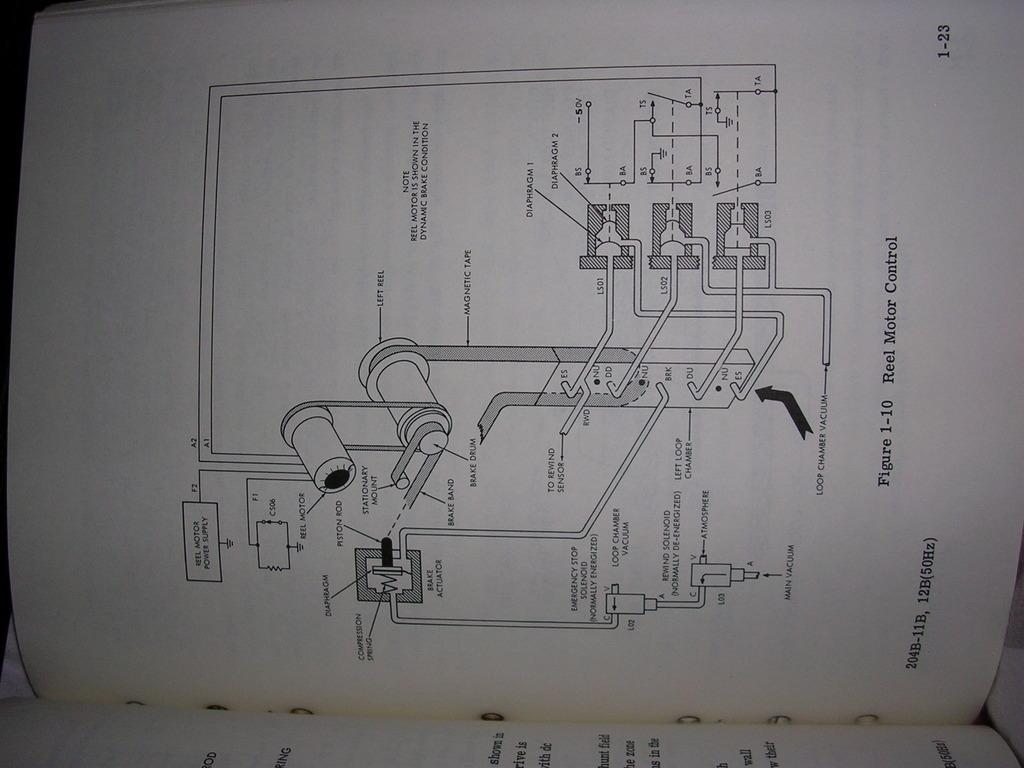

  Some technical background on the loop regulation


1024x768    Full size

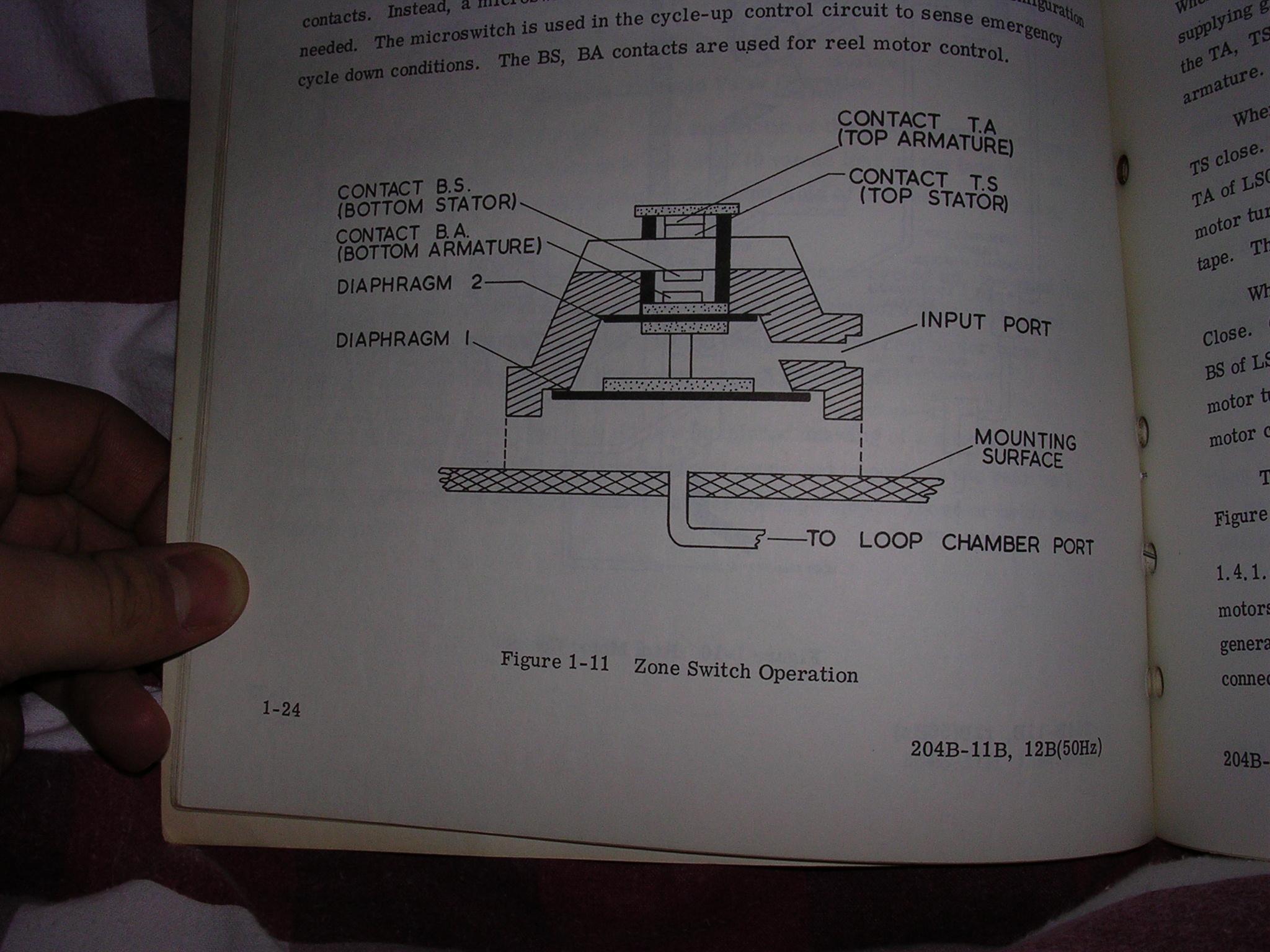

  That's the way the vacuum switches are built. The diaphragms are *not* easily replaced :-(
Any suggestions?


1024x768    Full size
  No comment


1024x768    Full size

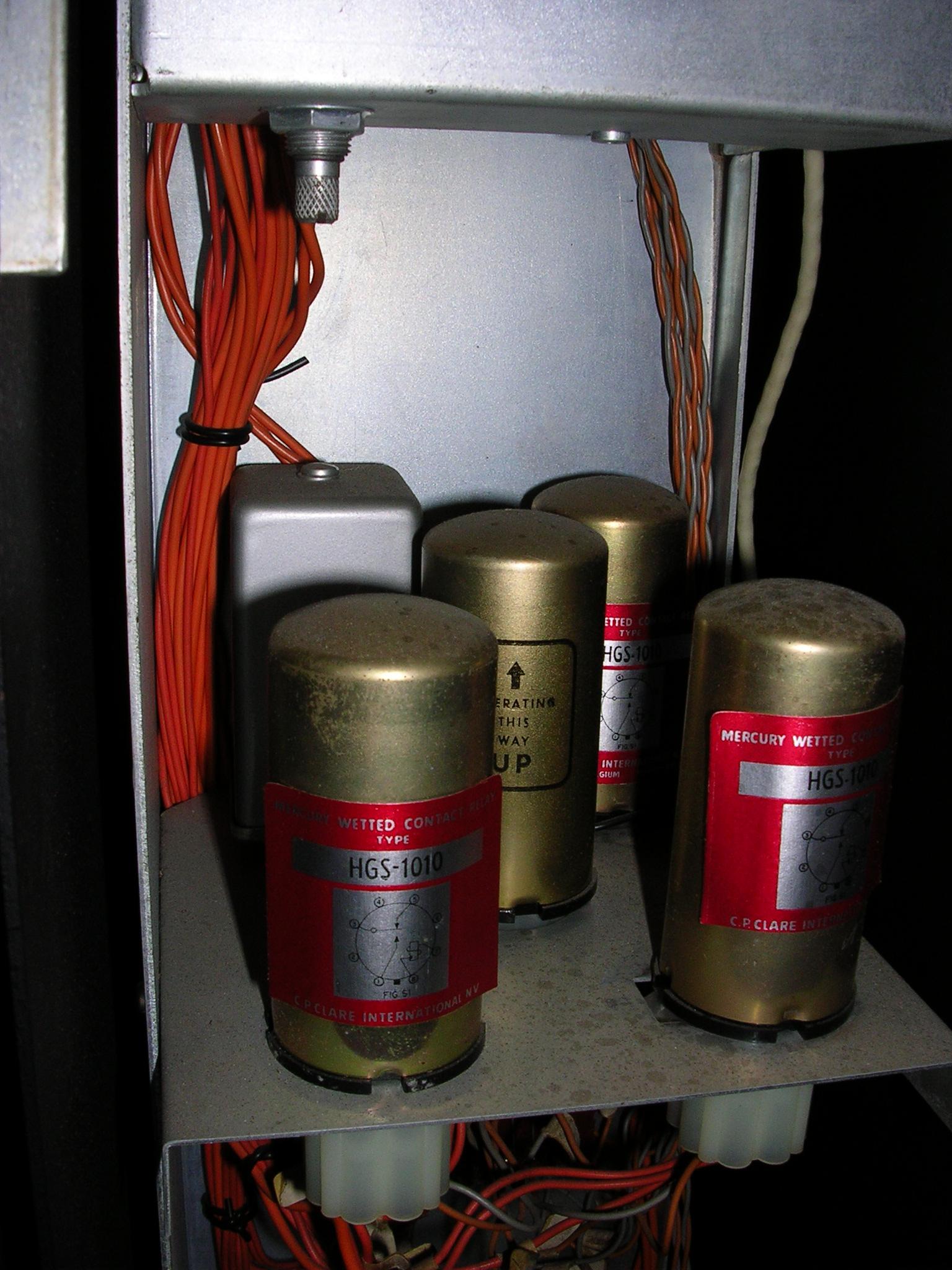

  The whole power-up and power-down sequencing is done via those mercury-wetted contact relays. They sit in sockets like vacuum tubes.


1024x768    Full size
  The drive is not from the sixties. Everything is dated 1970.


1024x768    Full size

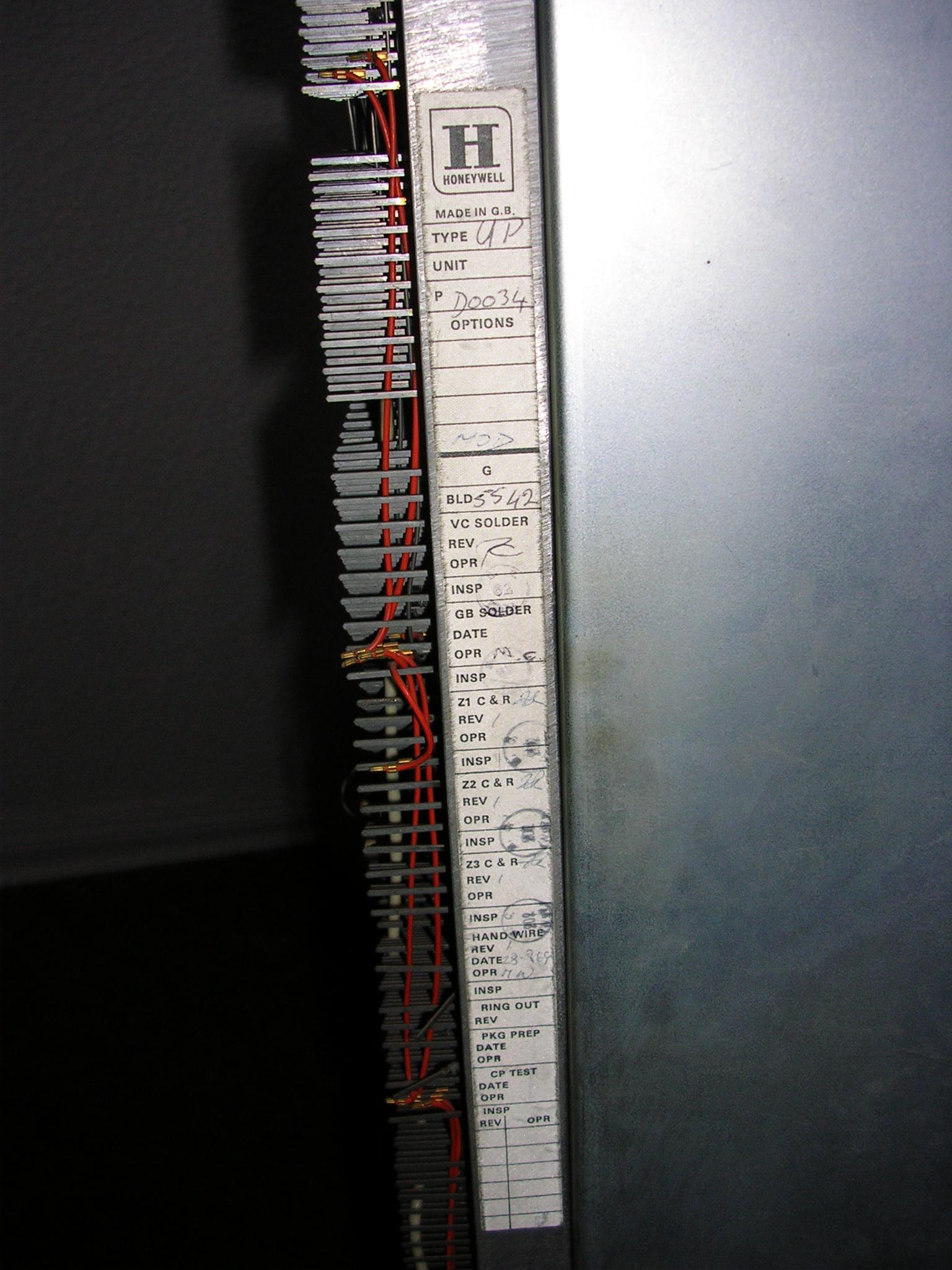

  9101 is the machine number of the second H316 I *think*


1024x768    Full size

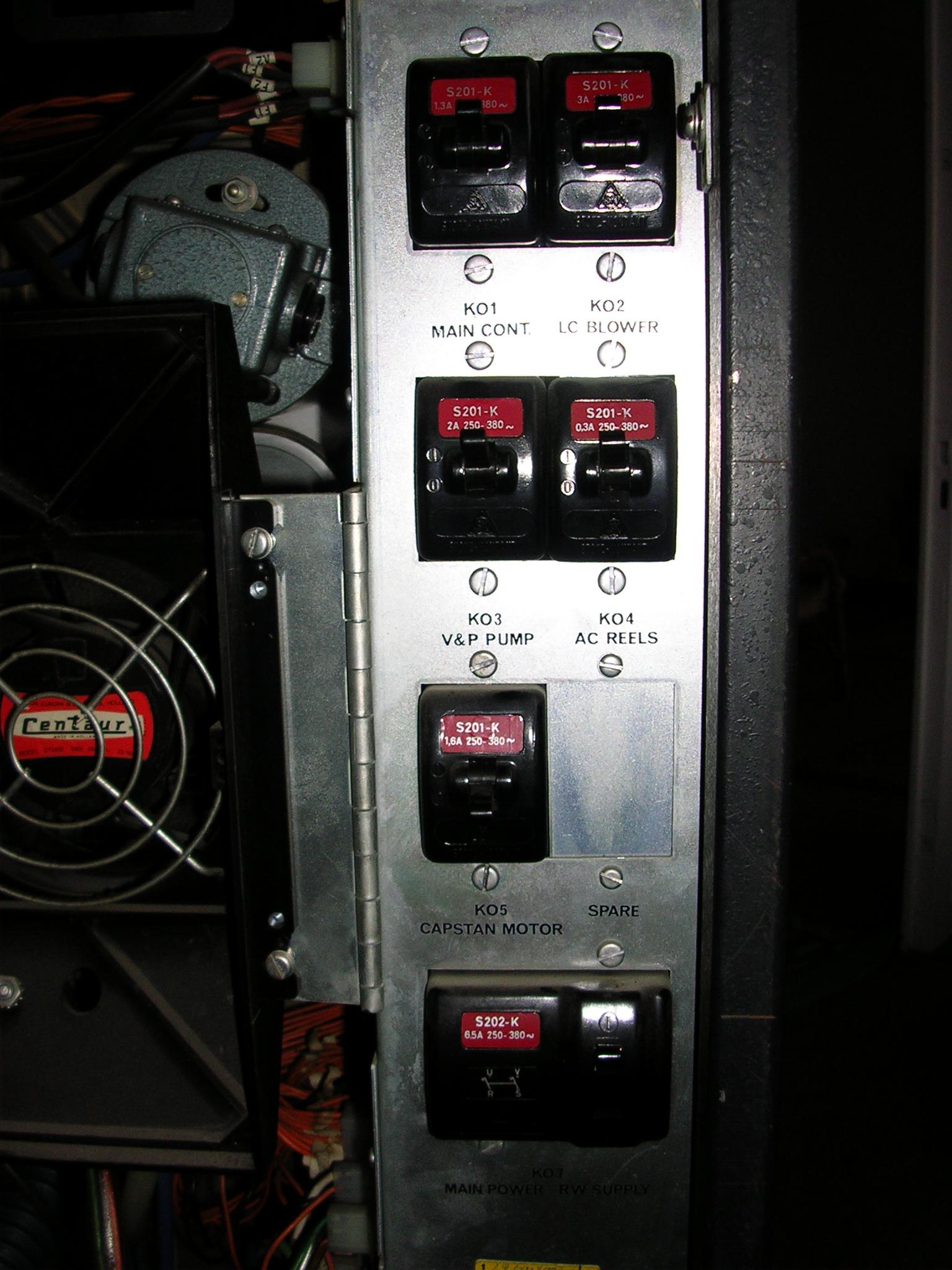

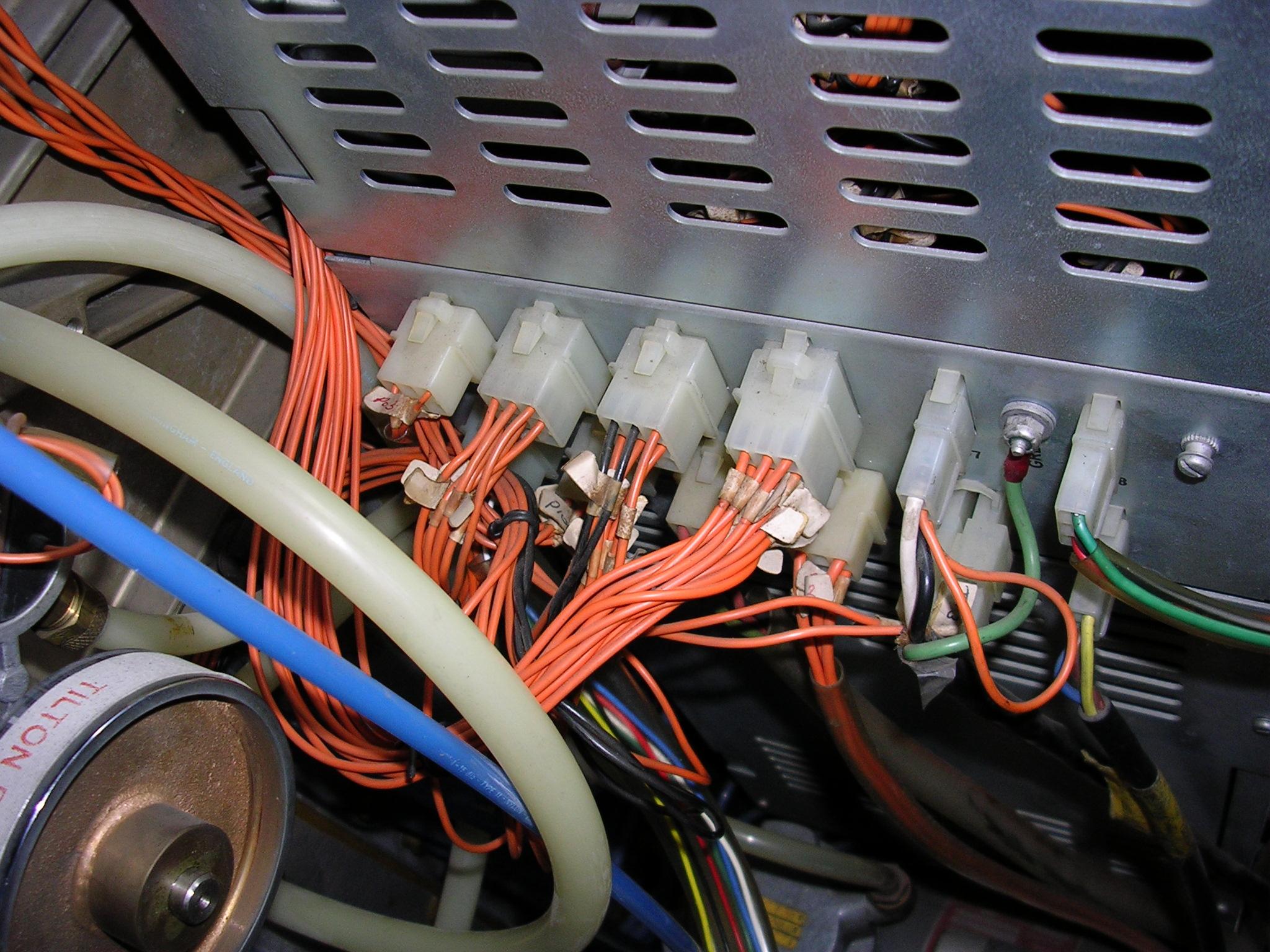

  The circuit breakers in "chassis C"


1024x768    Full size

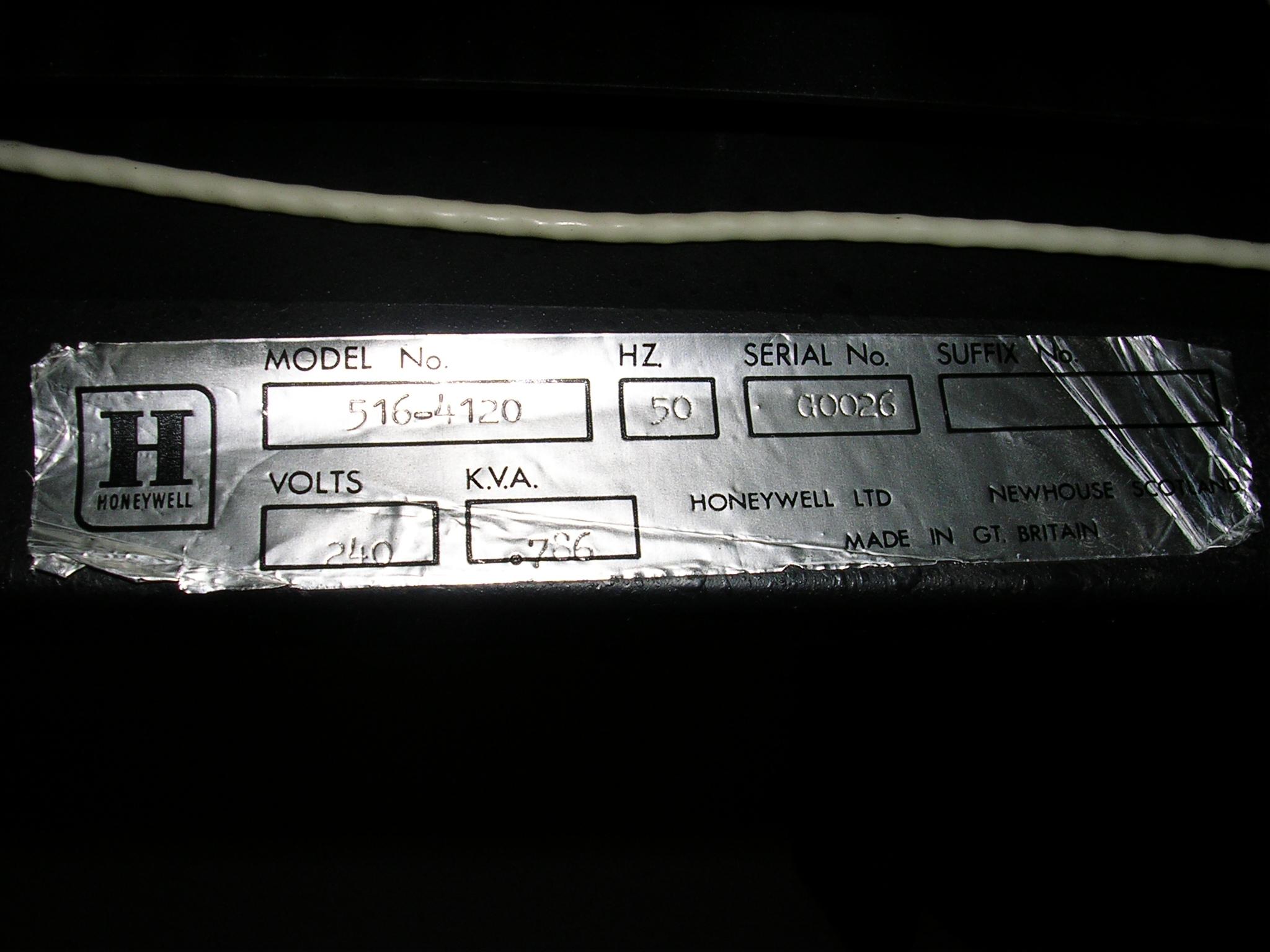

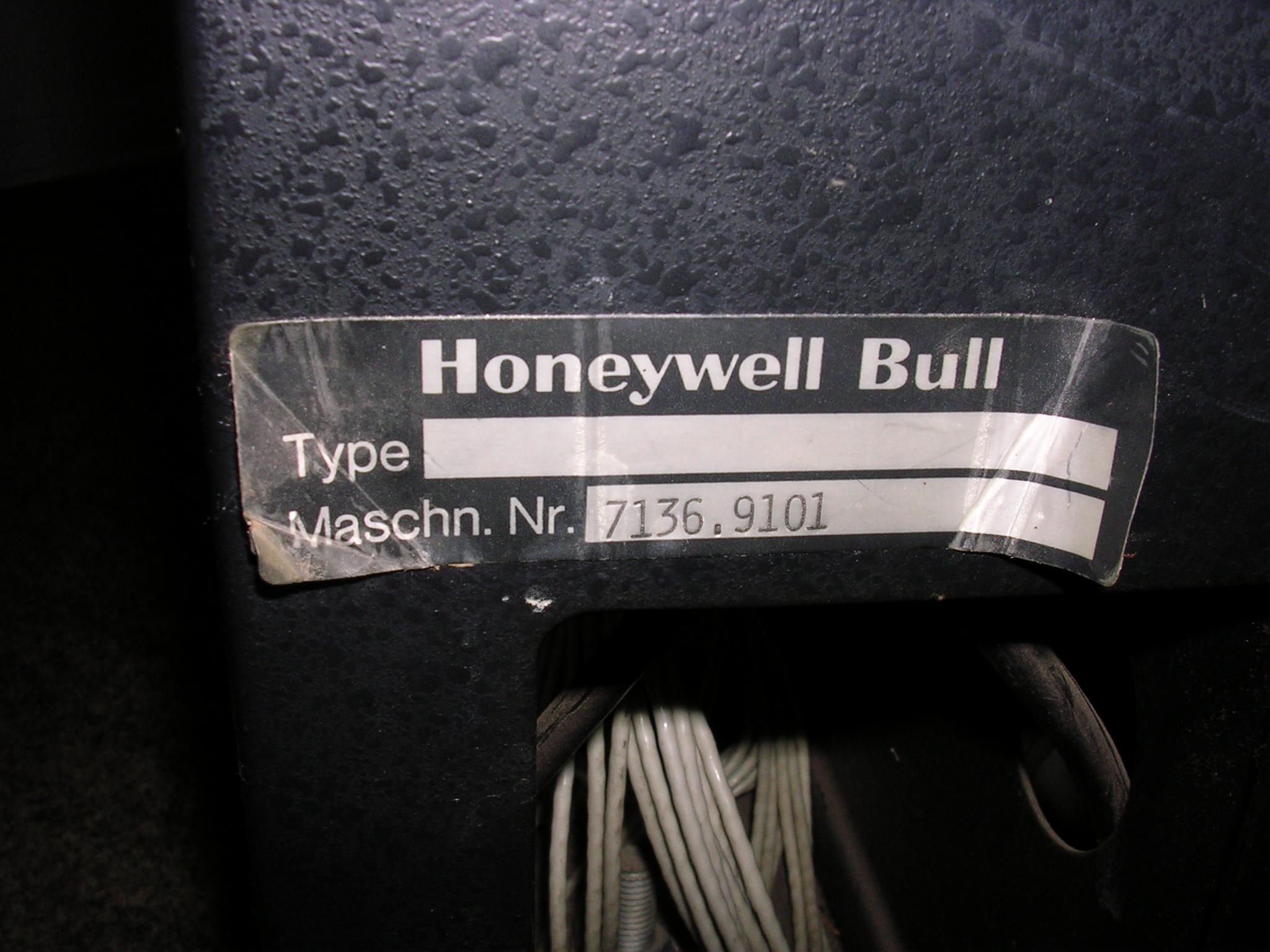

  I have found the type plate.


1024x768    Full size
  No comment


1024x768    Full size
  The loop chamber vacuum sensor. It is not really ok as well. But I *hope* that there's no problem with the membrane....


1024x768    Full size

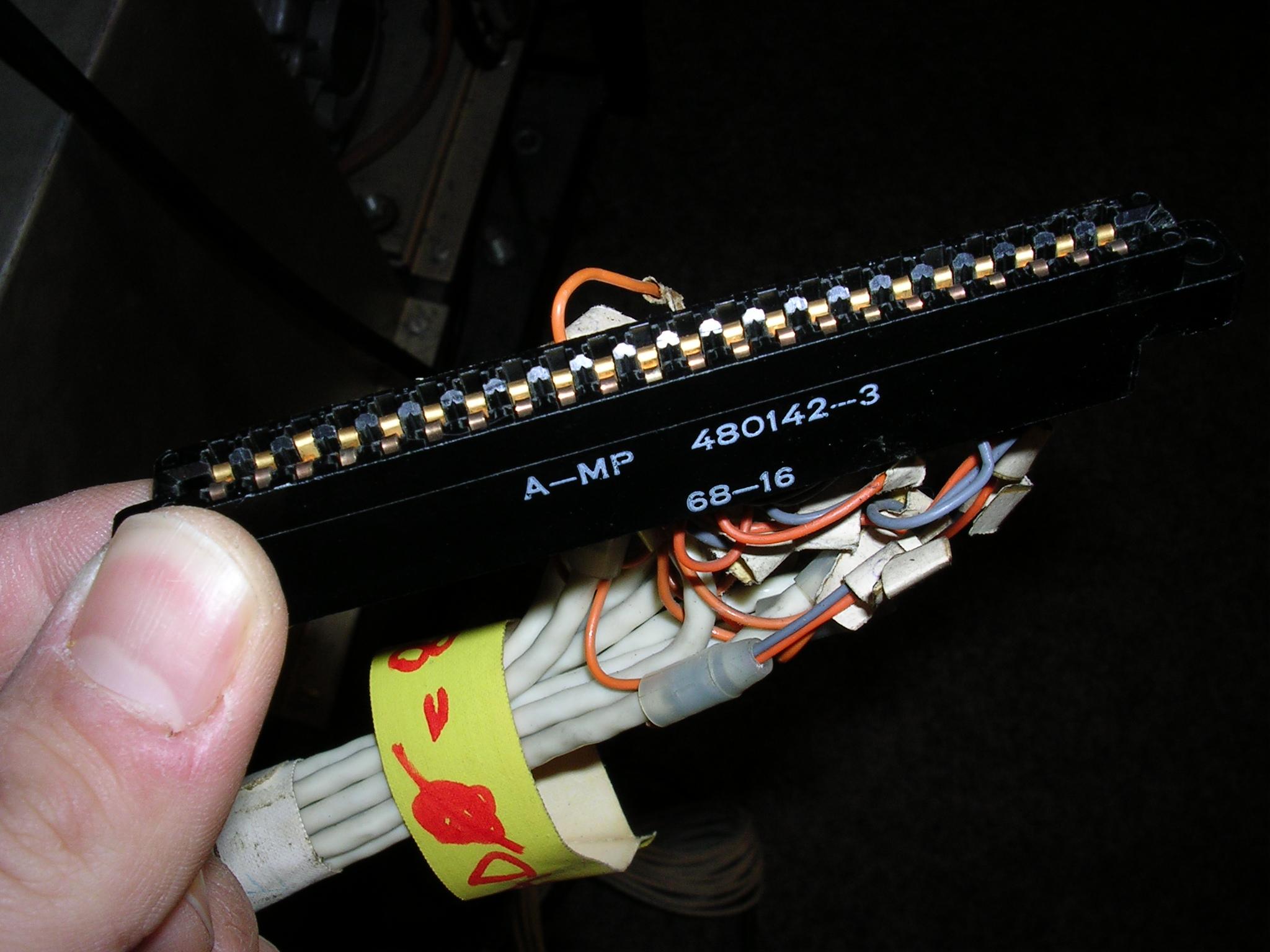

  The TAD package connector - but there's no TAD package :-(


1024x768    Full size

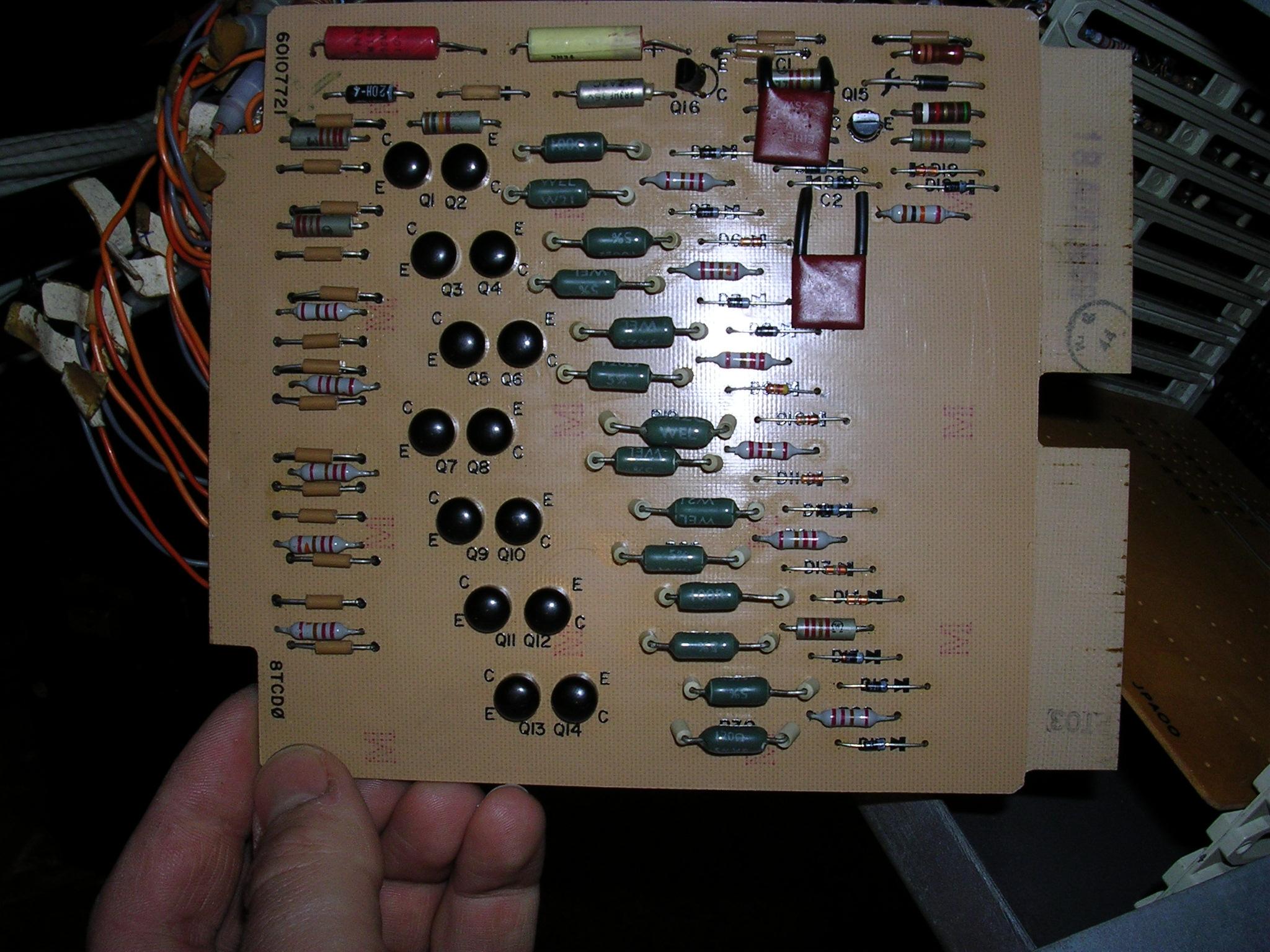

  The write head drivers are *not* missing.


1024x768    Full size

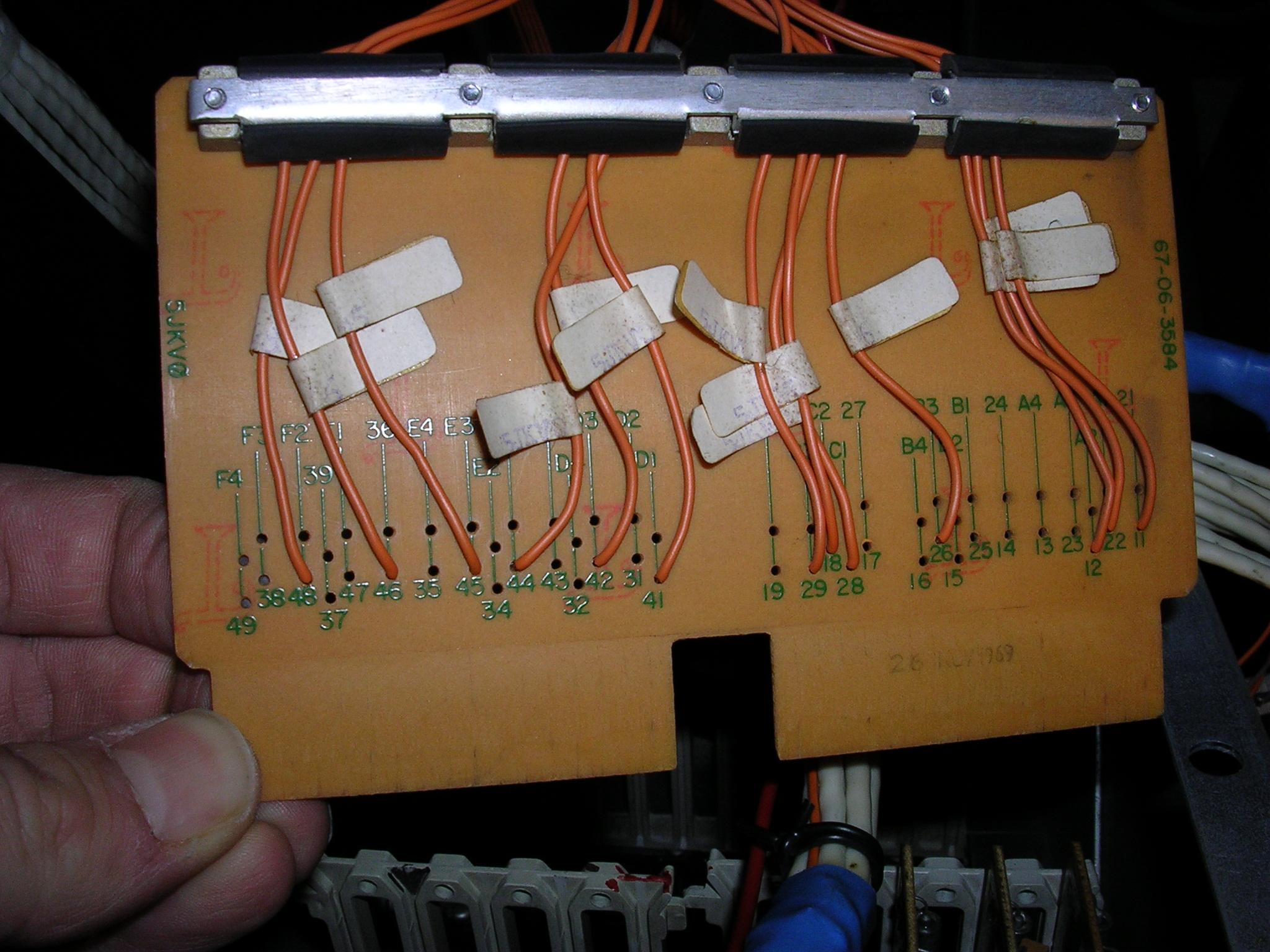

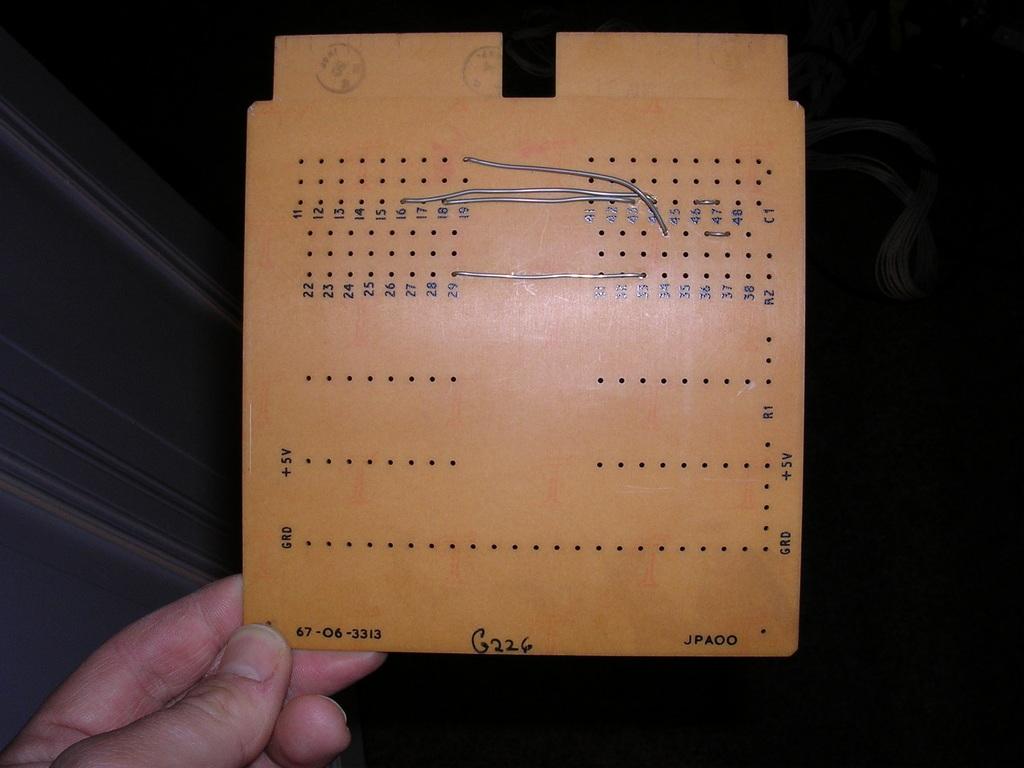

  What do I configure here?


1024x768    Full size

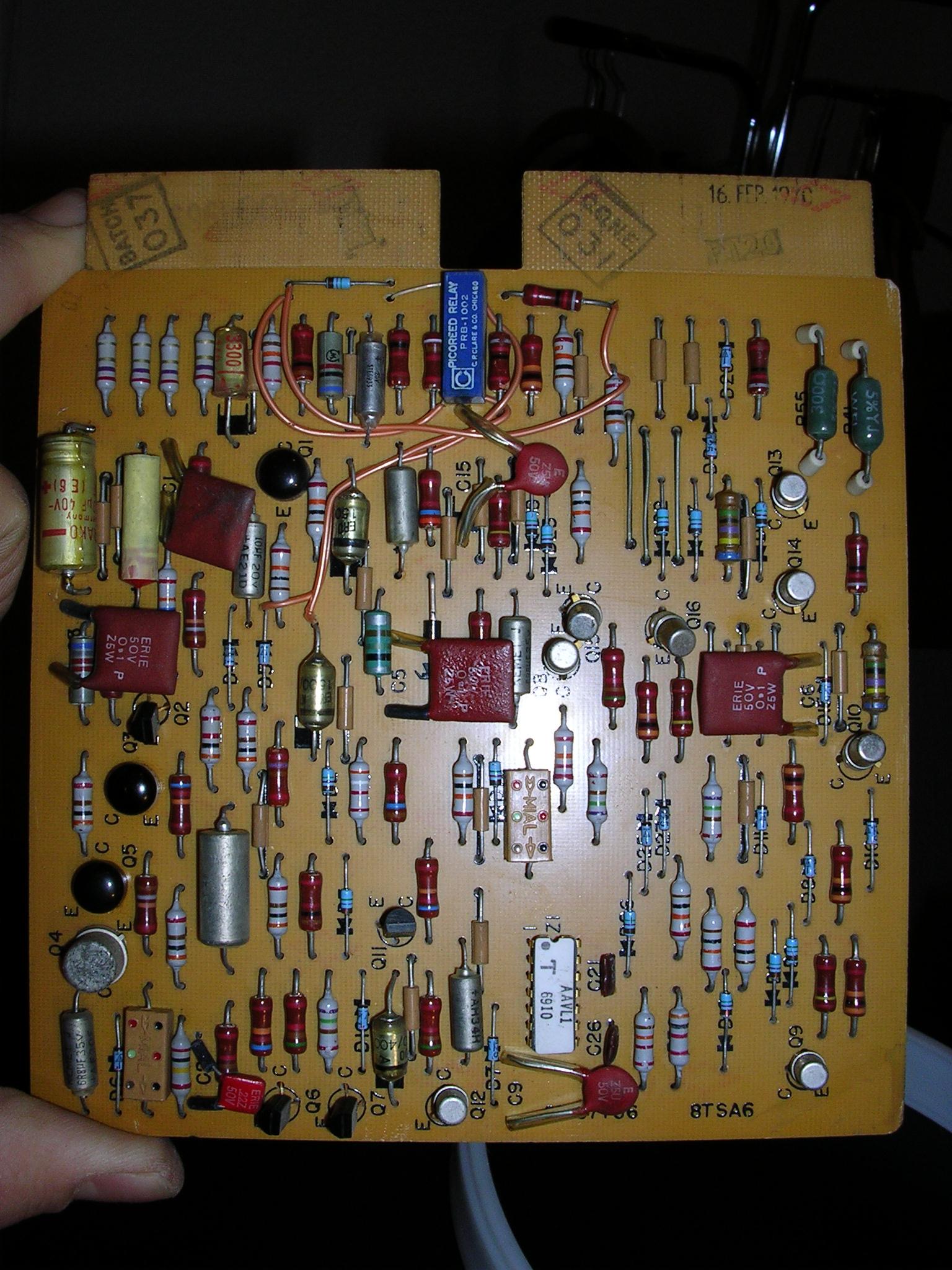

  One of the sense amplifier boards still in the machine


1024x768    Full size
  No comment
