 1024x768 Full size |

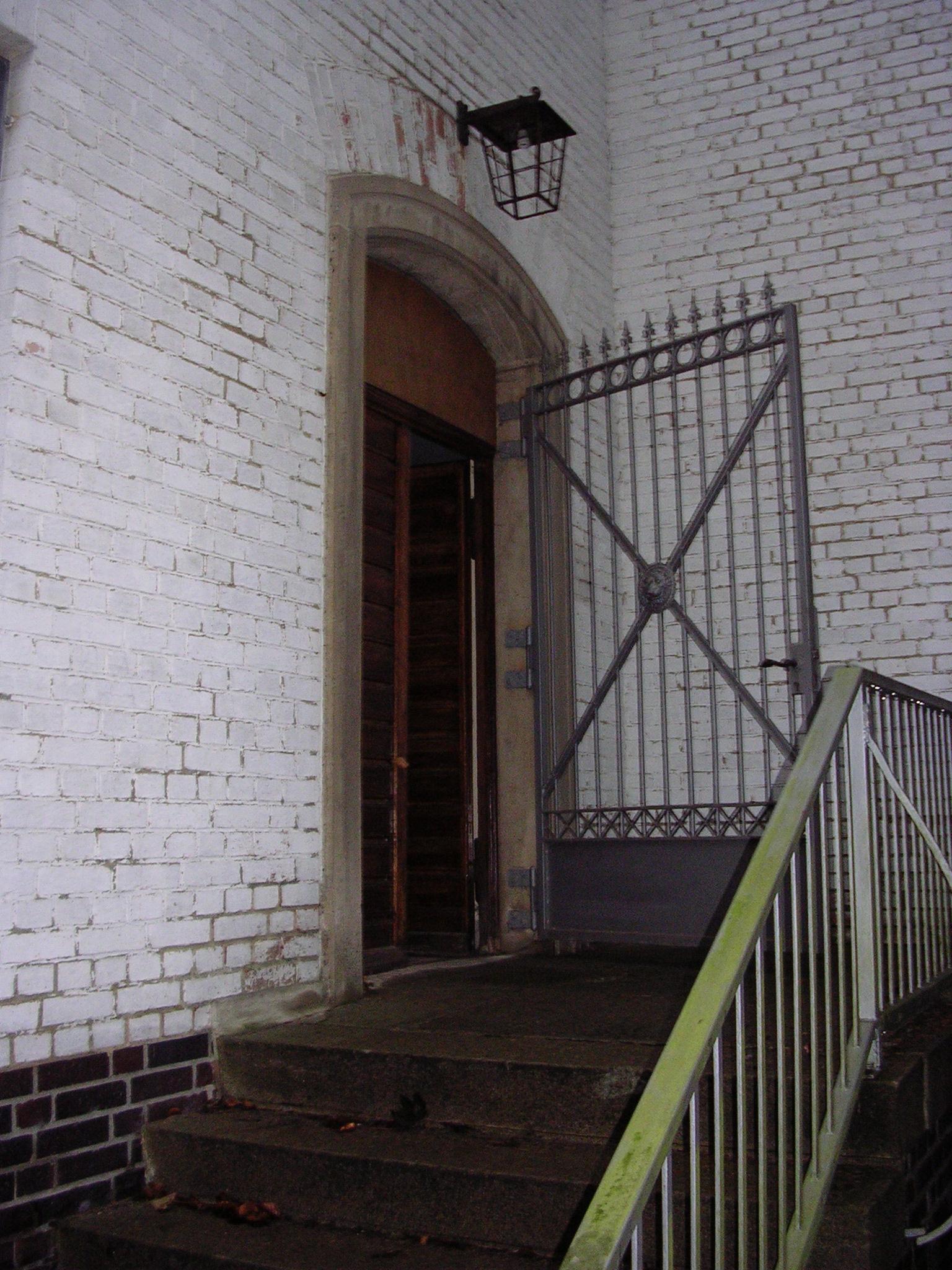

This is the entrance to the observatory in Göttingen. It is always closed. The metal grating, too. | |
 1024x768 Full size |

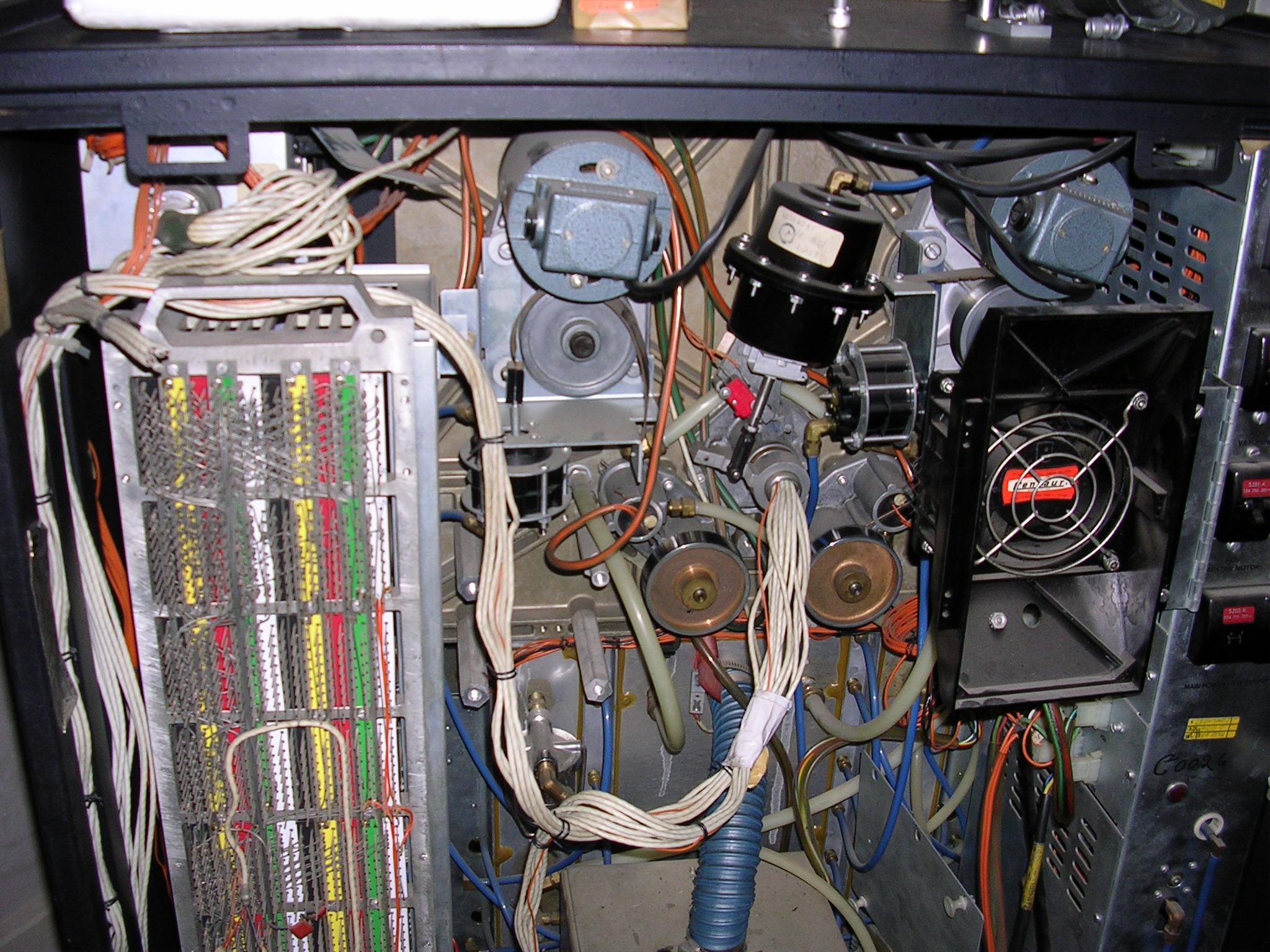

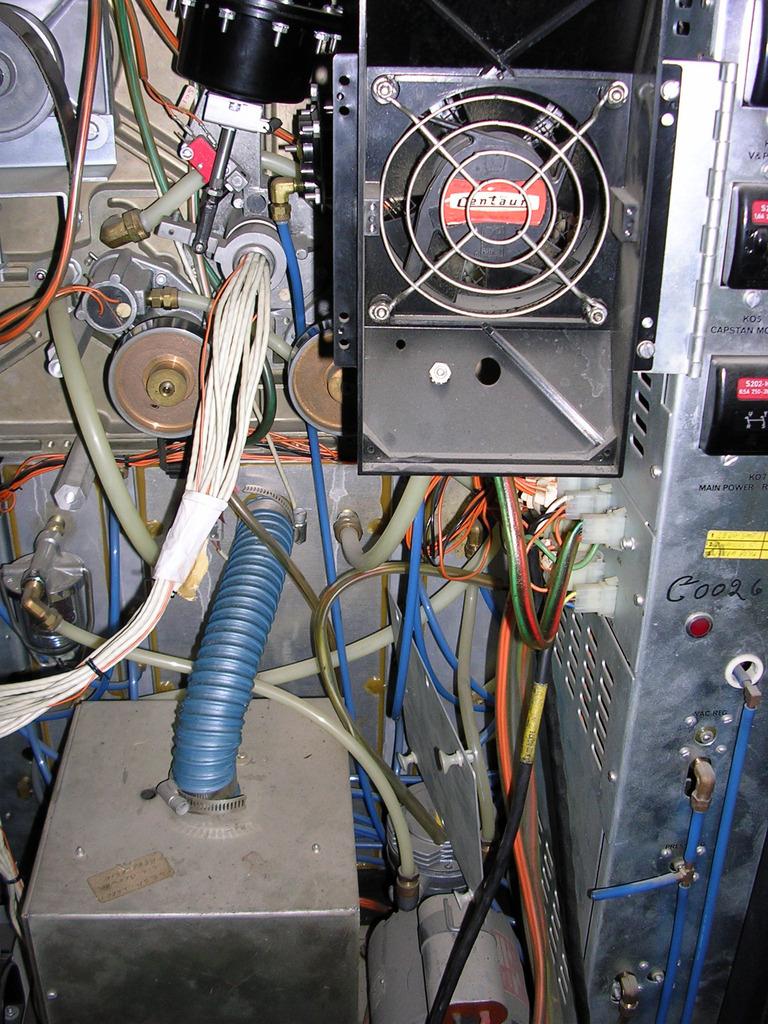

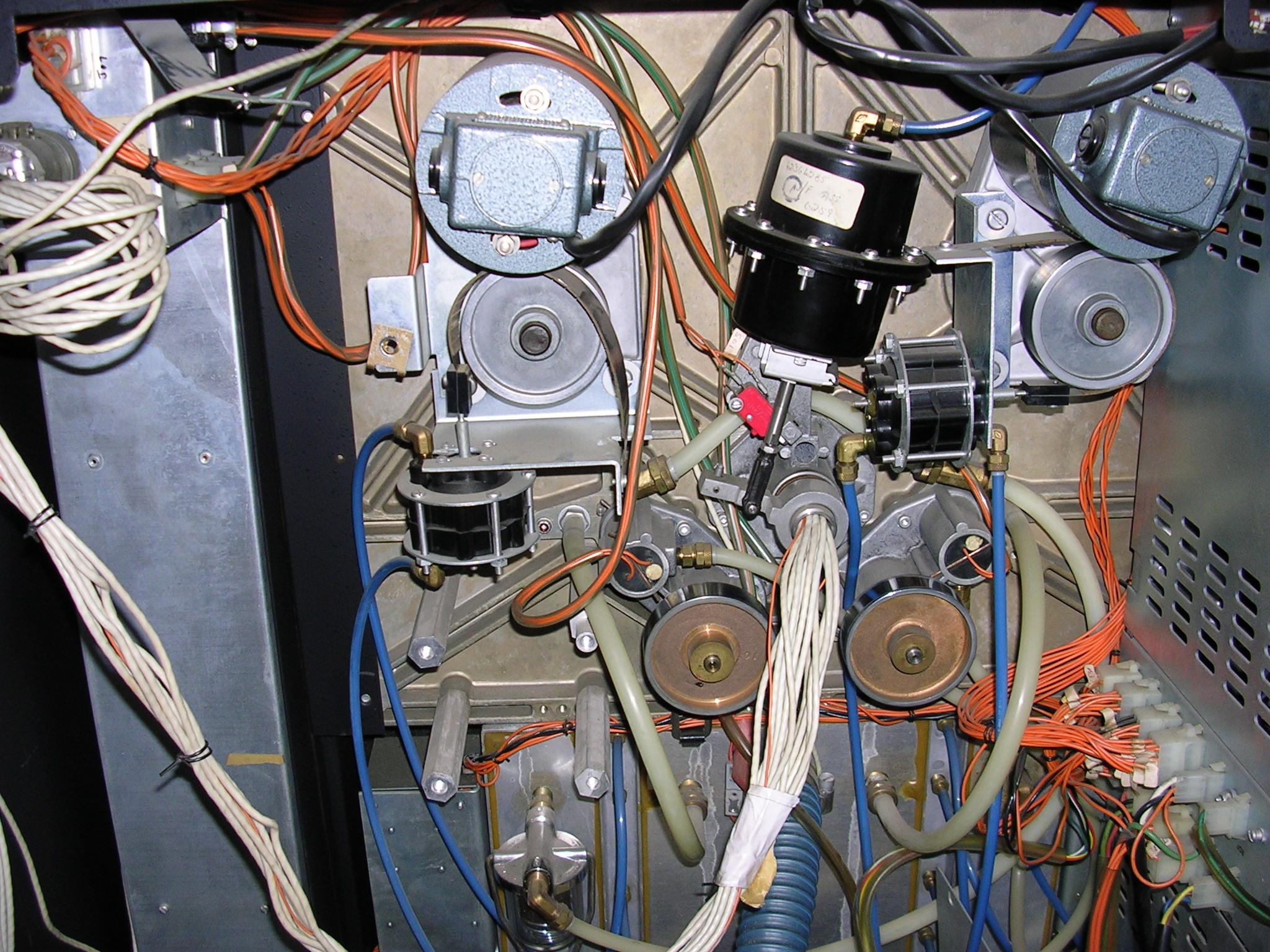

A first view into the back of the tape drive. If you know the device you can see that the capstan motor is missing. That's bad. And you can already see the cut-through cables at the left. They originally went to the heads but someone has cut them to get access to the motor which he wanted to steal. | |
 1024x768 Full size |

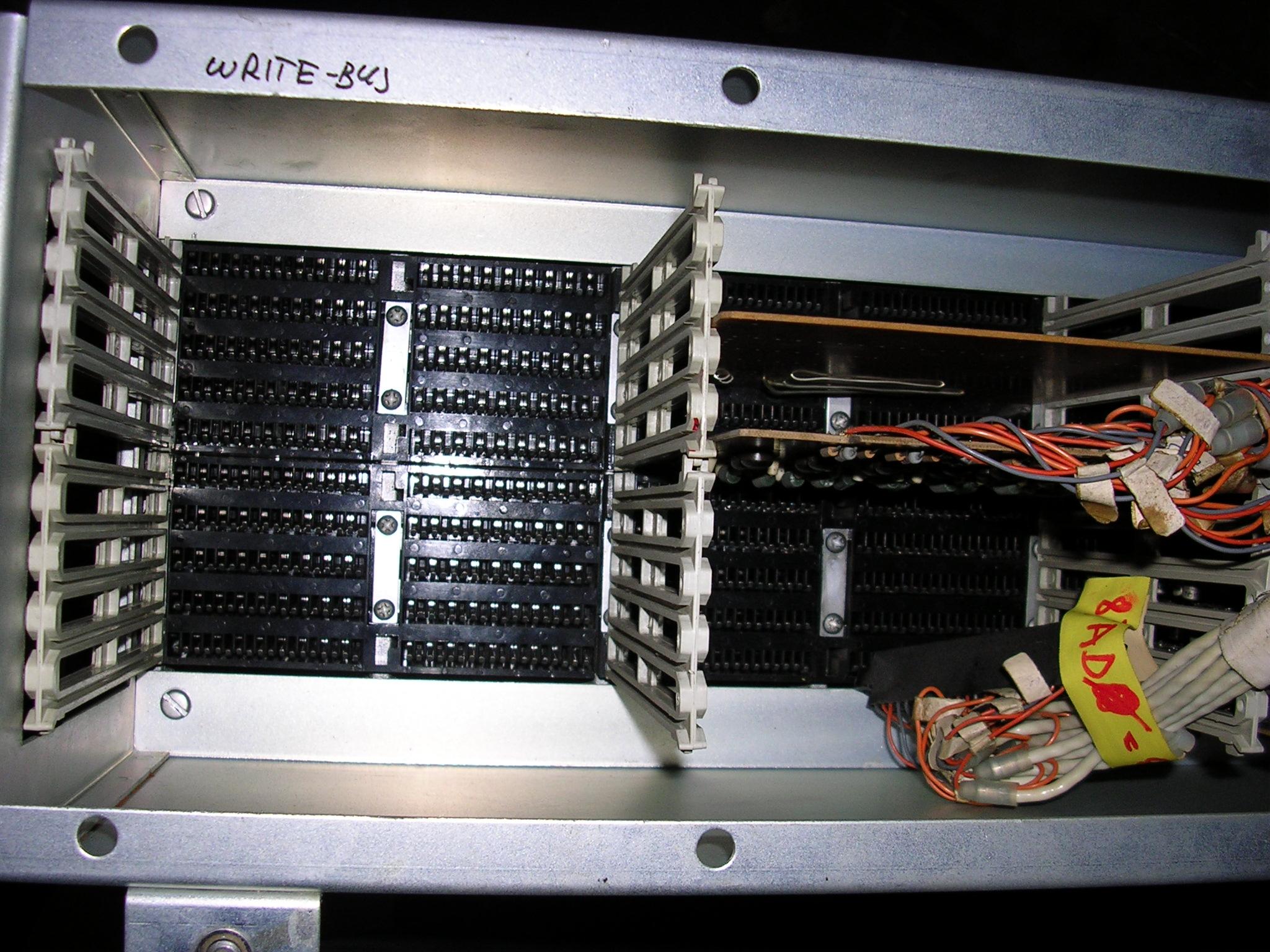

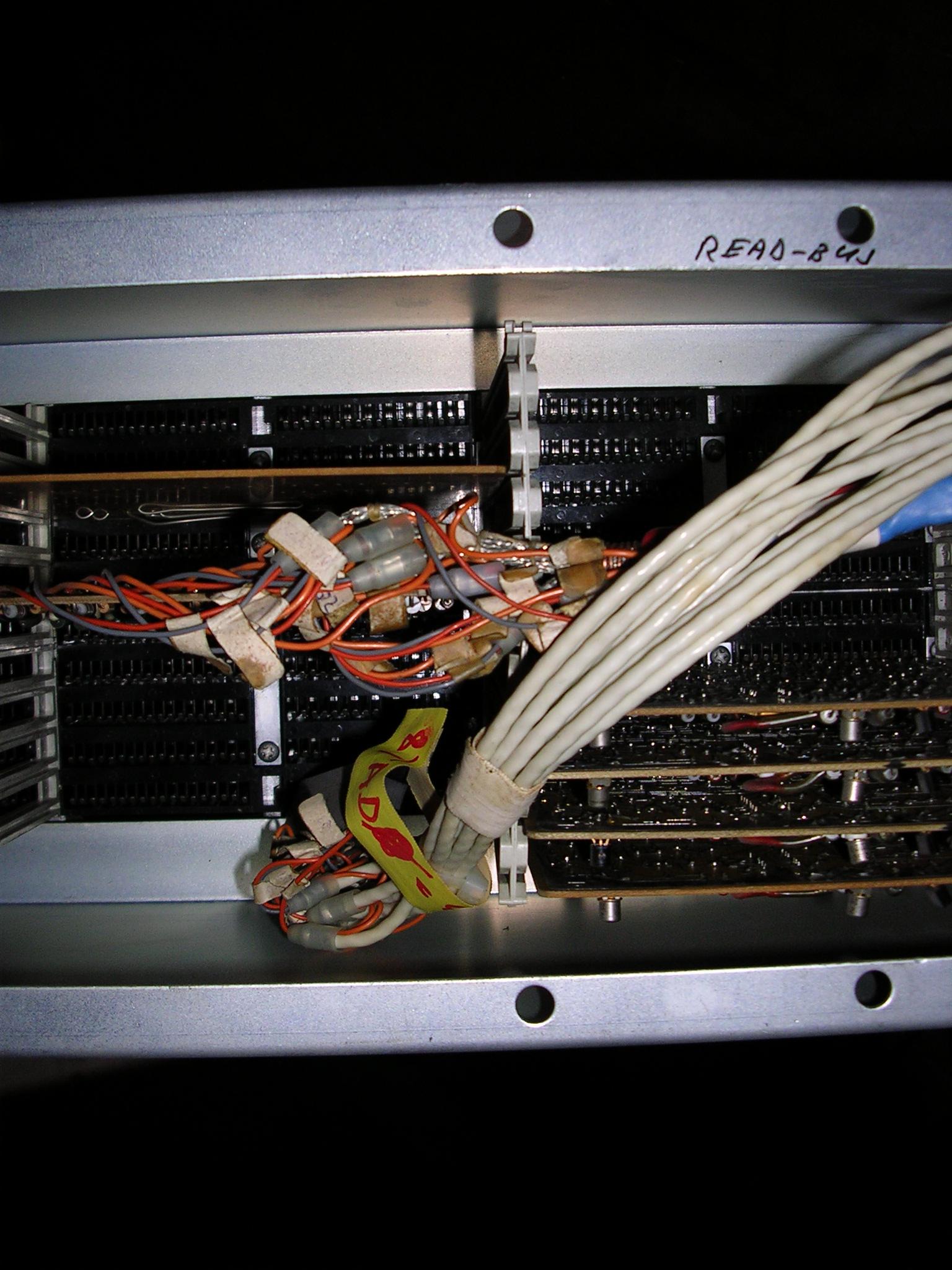

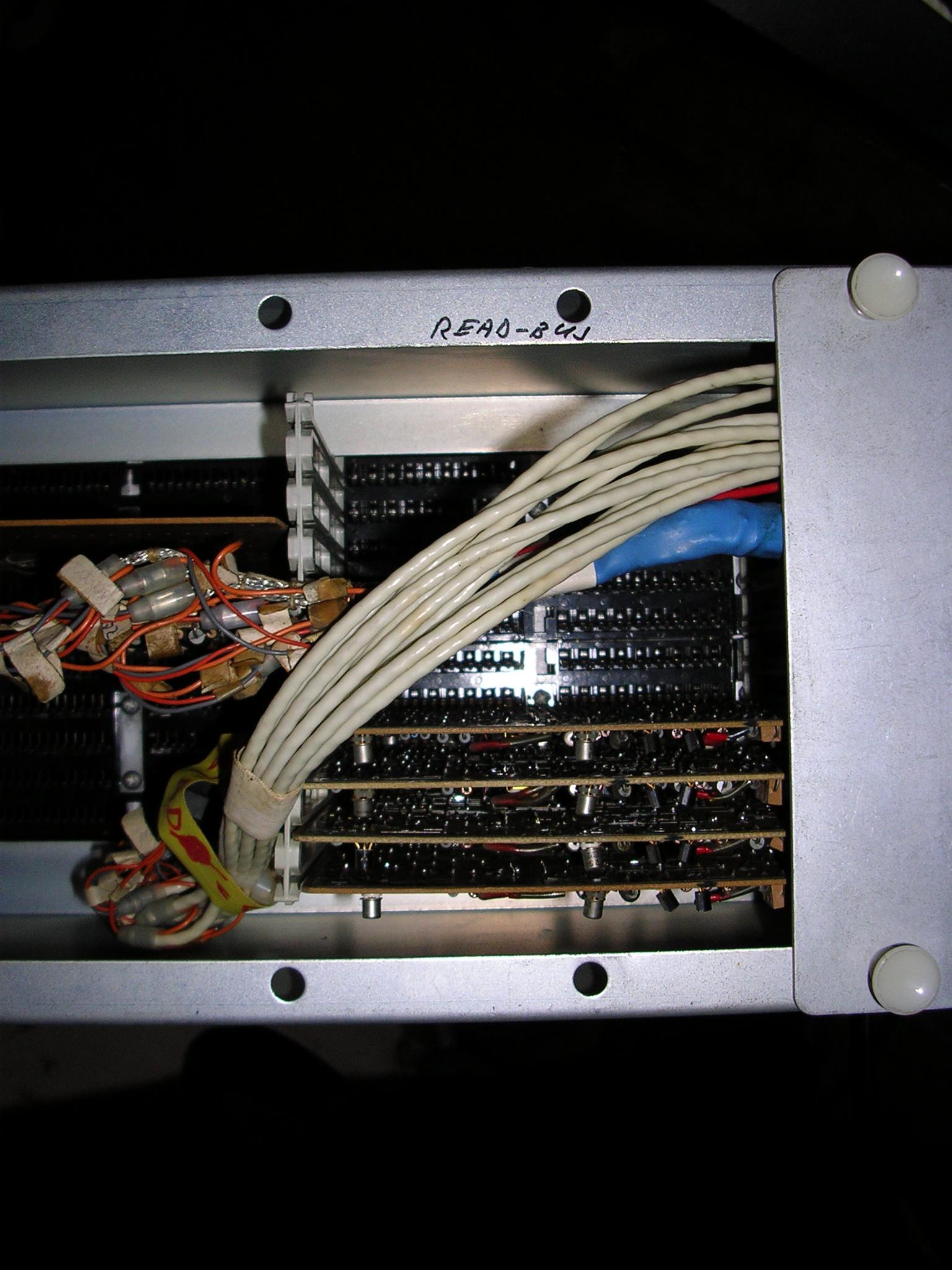

The "drawer UP", not much of the analog electronics is left. I will have to reconstruct that. | |
 1024x768 Full size |
Other part of "UP" | |
 1024x768 Full size |
The middle of "UP" | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
Here you can see the missing motor's four screw sockets and the capstan pulleys without the belt. | |
 1024x768 Full size |

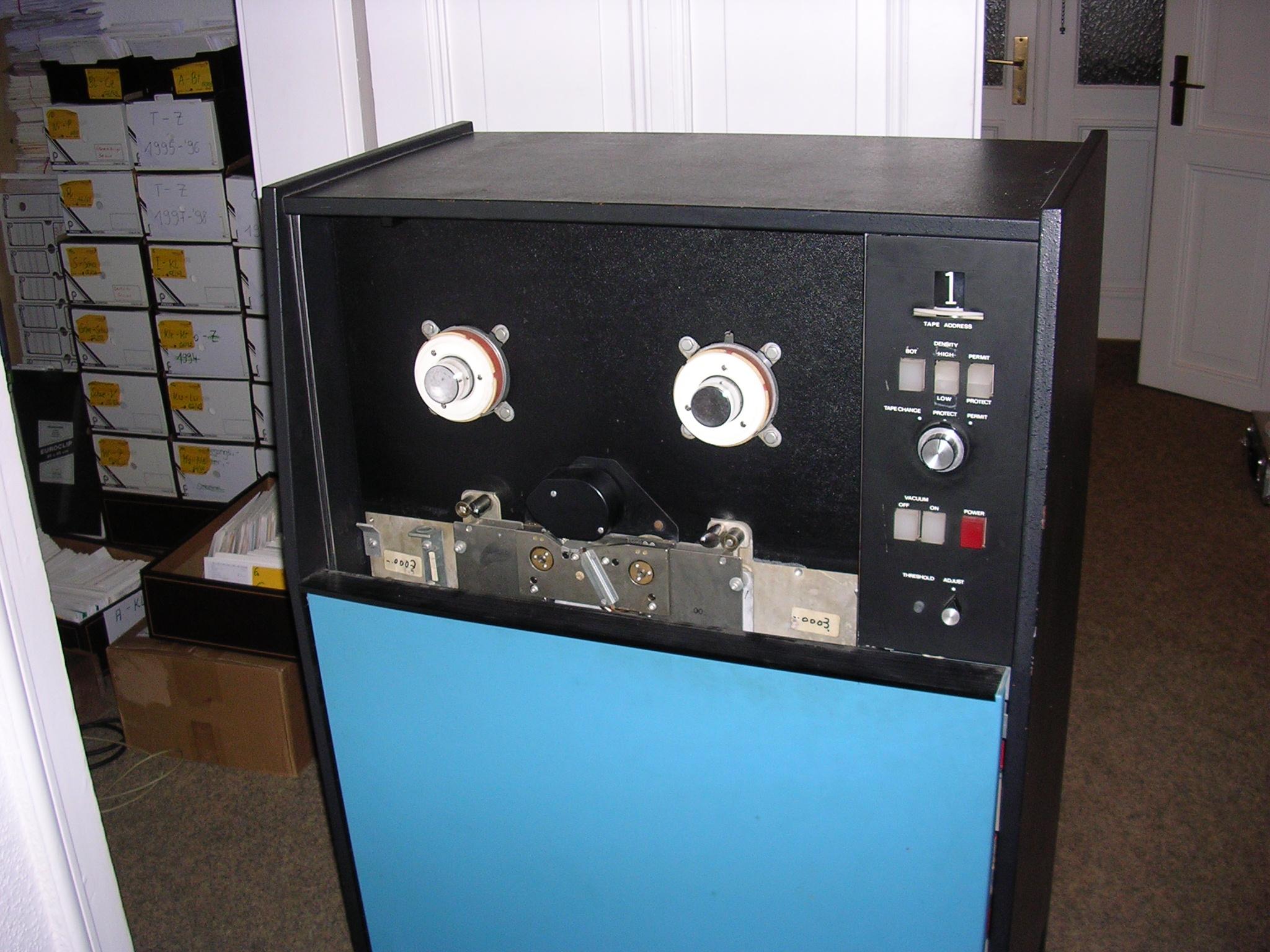

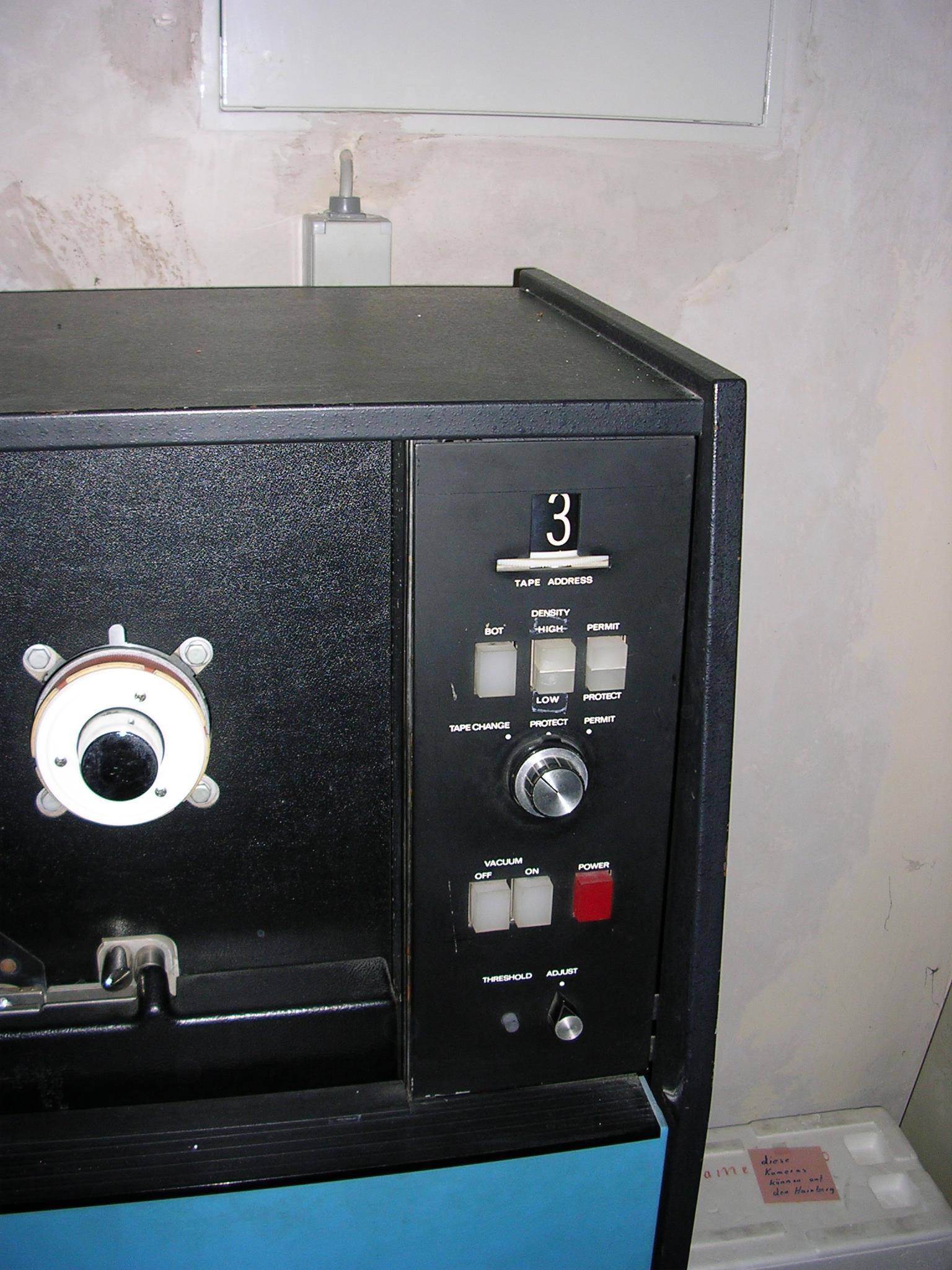

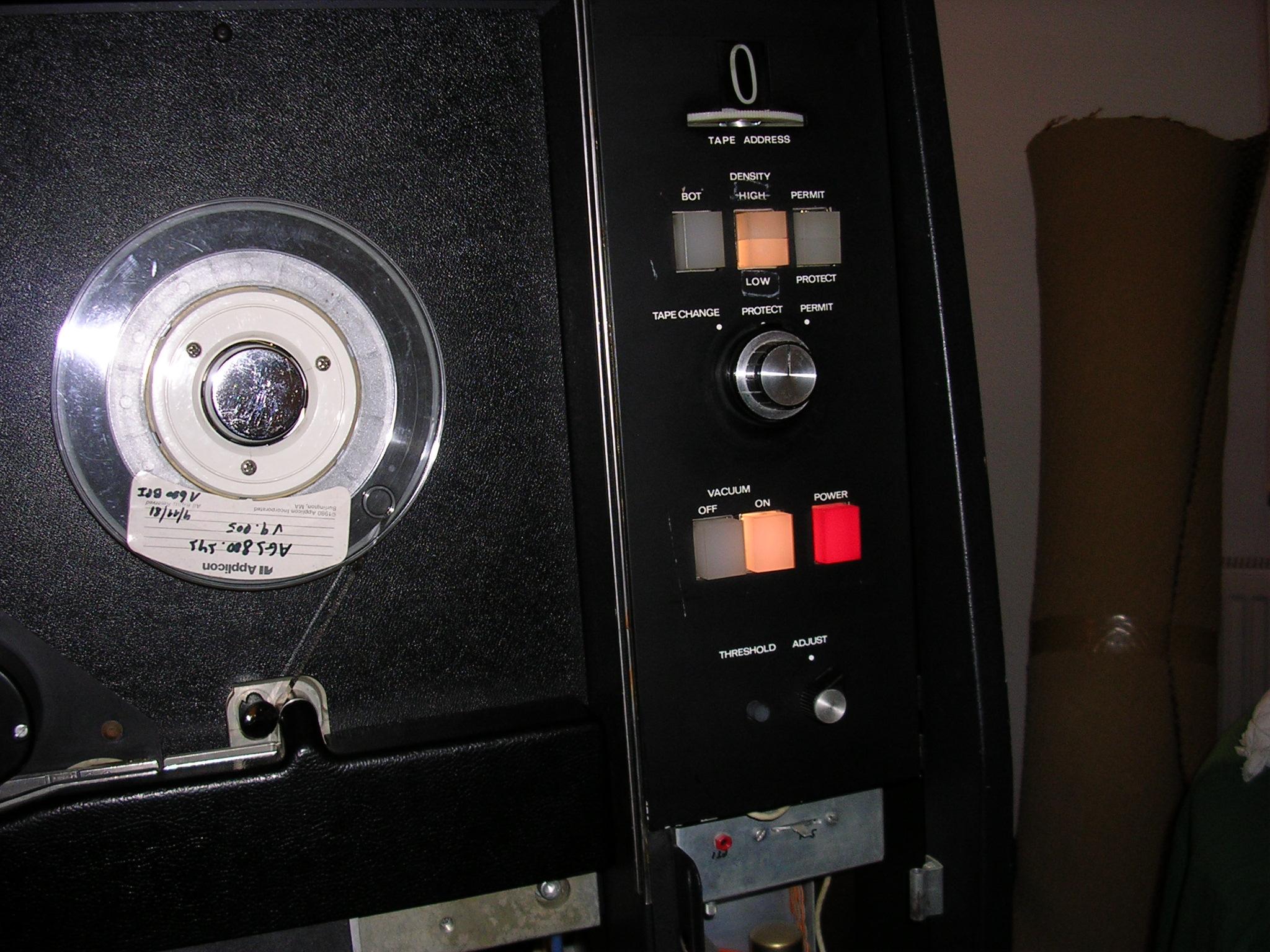

The front panel of the machine. Looks complete. | |
 1024x768 Full size |
No comment | |
 1024x768 Full size |
Hehe, that's my H316 with some new stuff around. It's getting more and more comfortable.... | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Volker and Robert inside the spectrometer room. The observatory was a sun observatory for spectrographical experiments. | |
 1024x768 Full size |

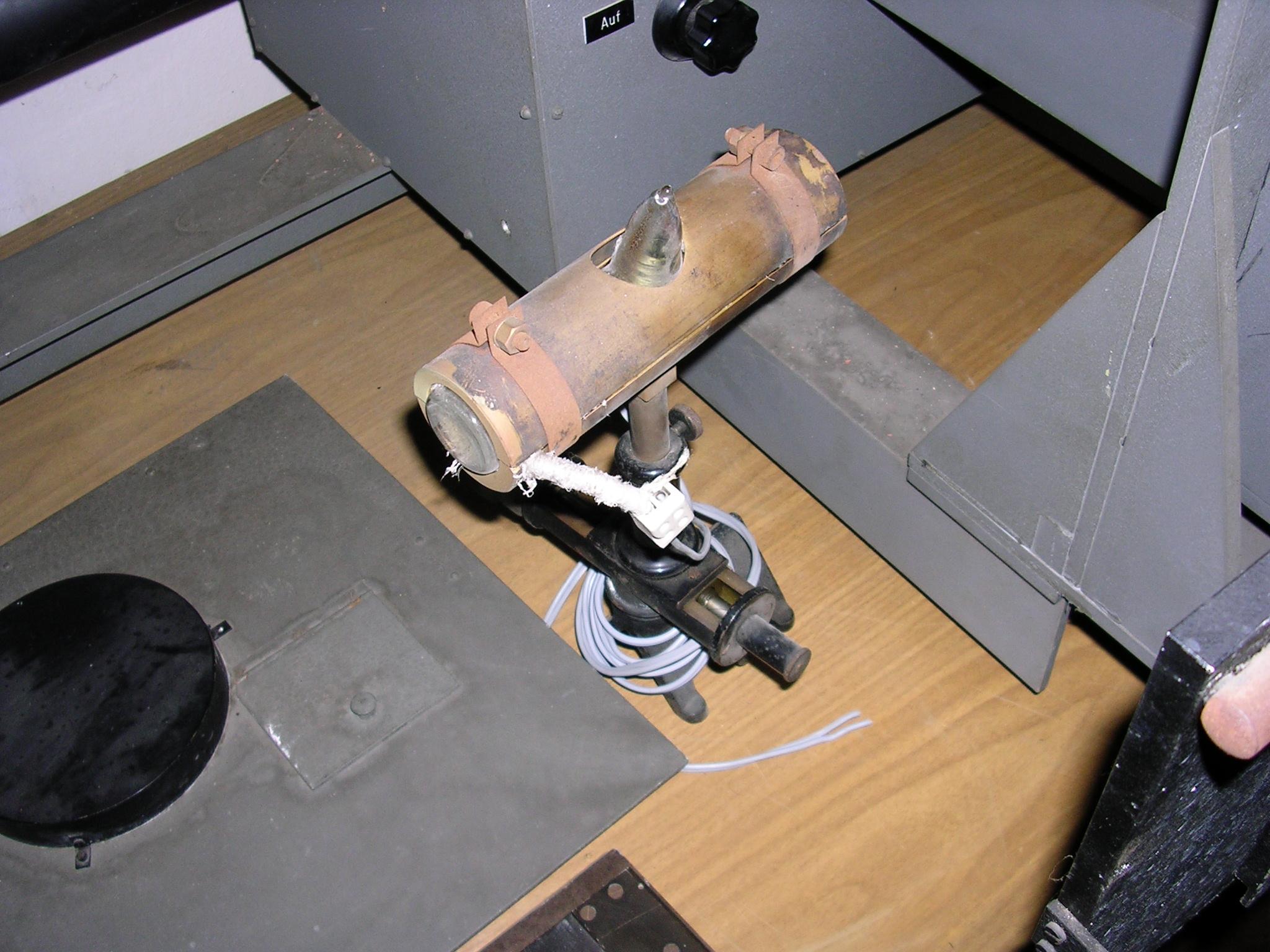

Something standing in the spectrometer room. | |
 1024x768 Full size |

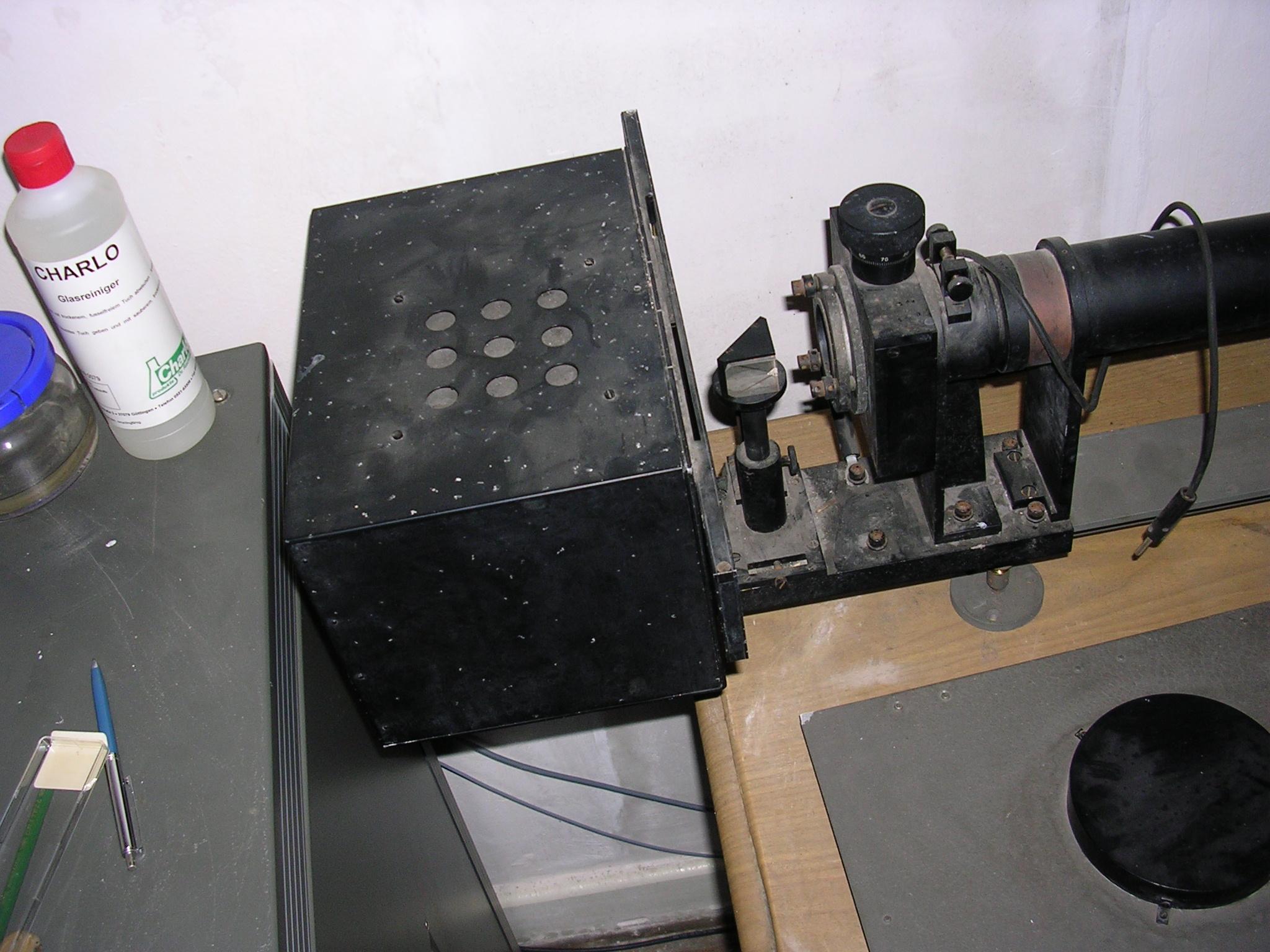

Nothing is adjusted.... The spectrometer is already gone. | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Nice device, isn't it? I thought of taking it with me - but I don't have the space. It's still there waiting for the scrapyard - like everything we did not pick up. | |
 1024x768 Full size |

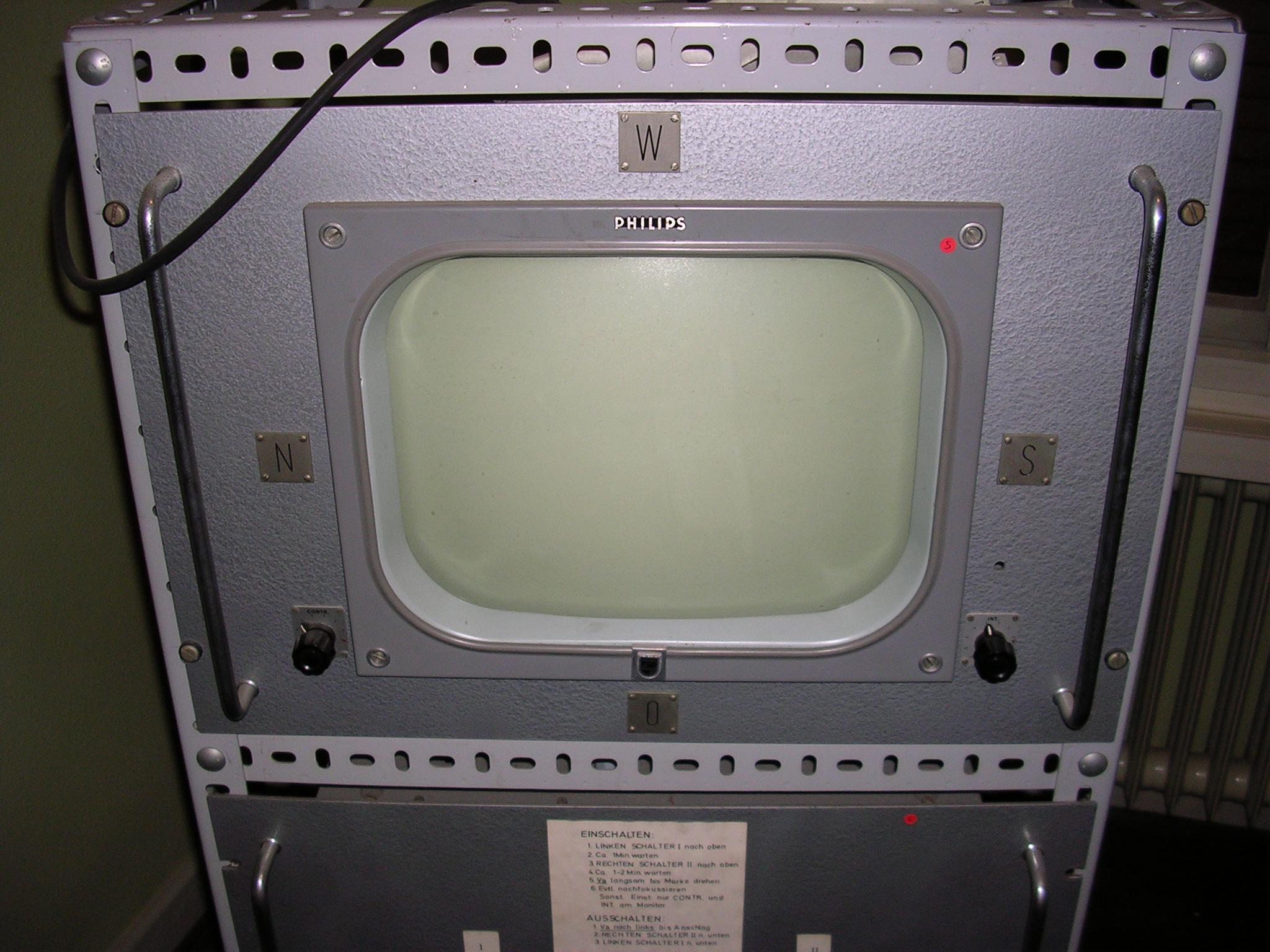

An old video screen | |
 1024x768 Full size |
Back of the screen | |
 1024x768 Full size |

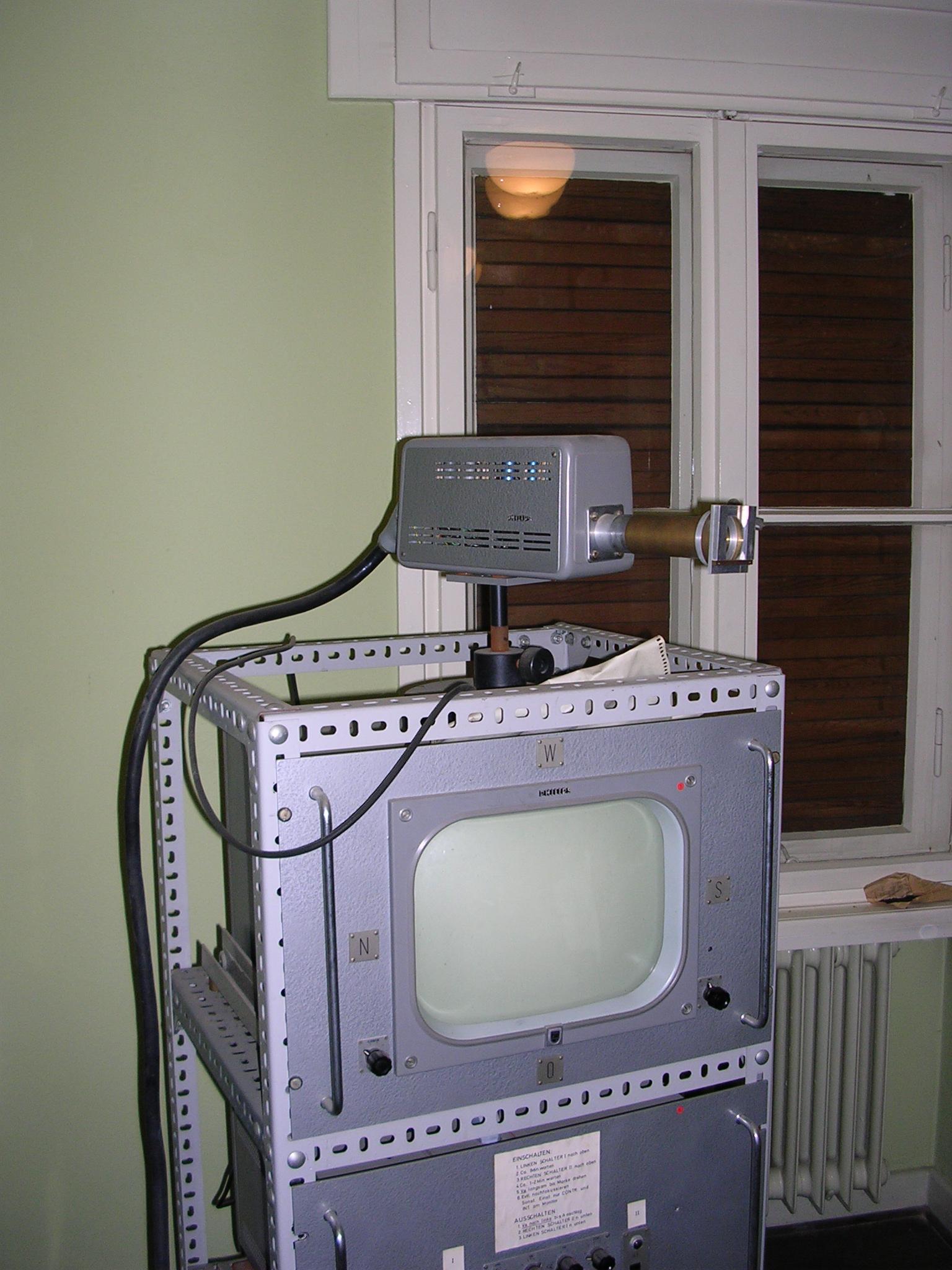

The screen with its camera | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |

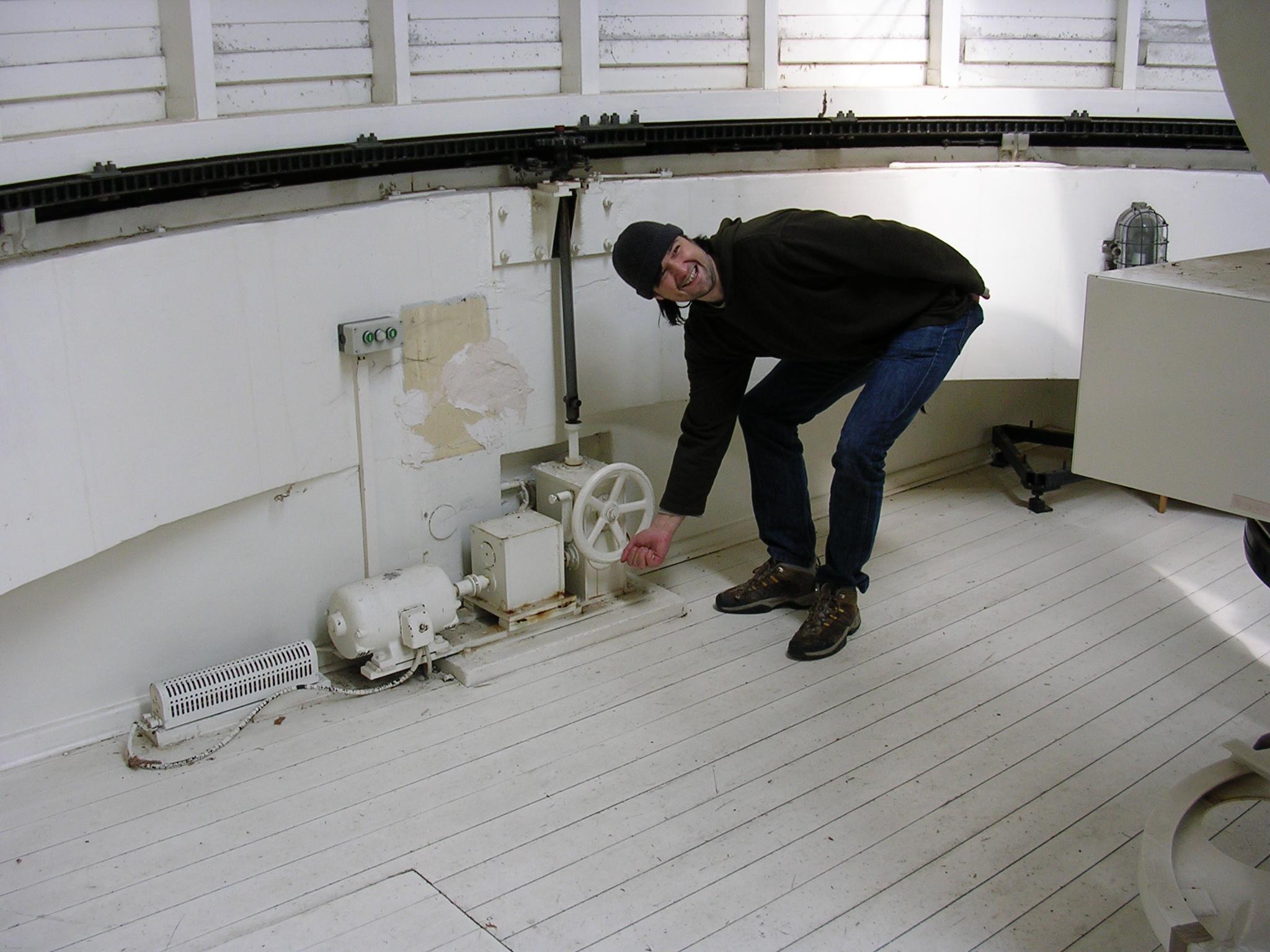

Robert turning the dome of the observatory. One can choose between a wrench and a crank lever. | |
 1024x768 Full size |

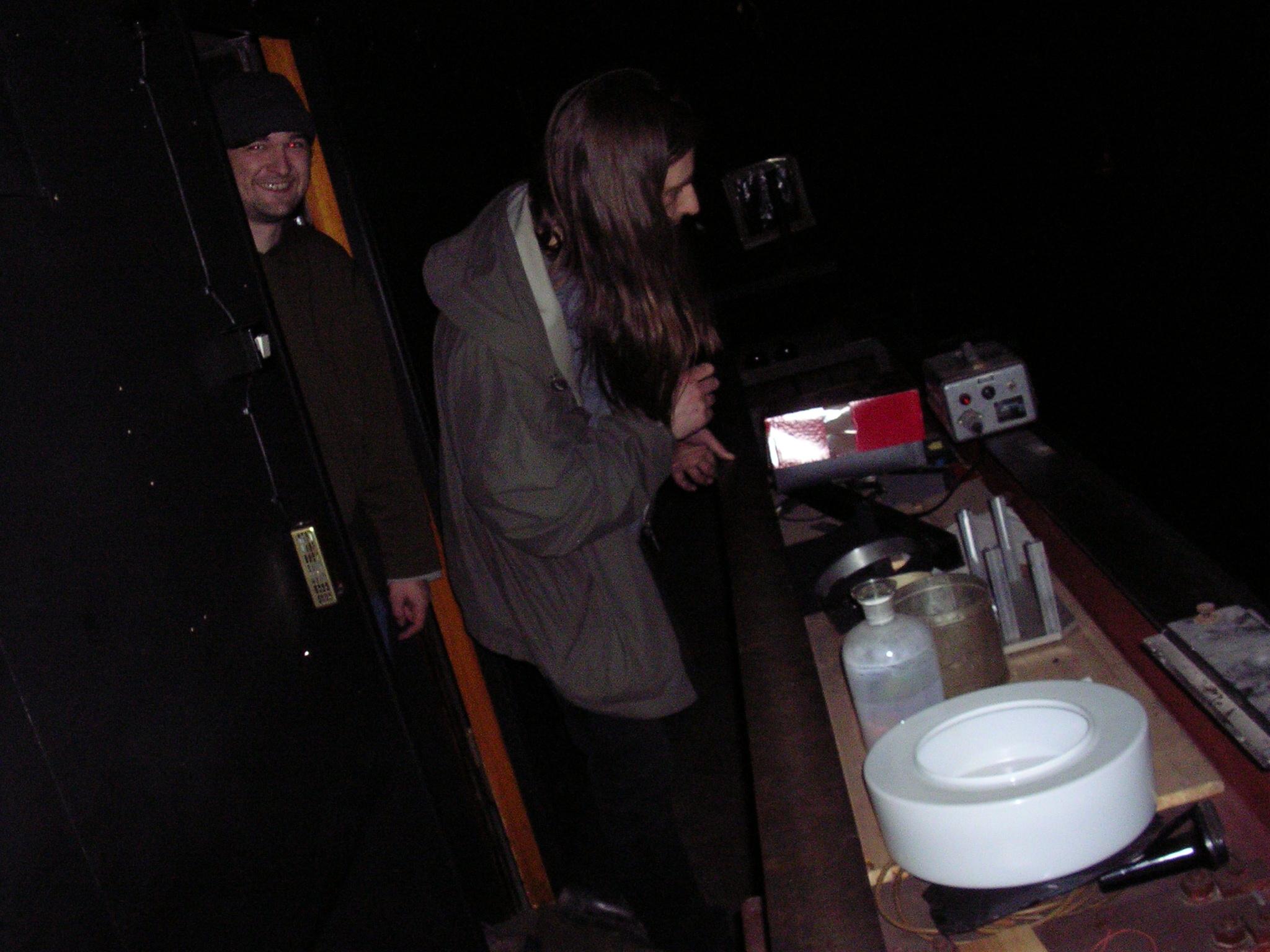

Mark and Robert inside the dome. | |
 1024x768 Full size |

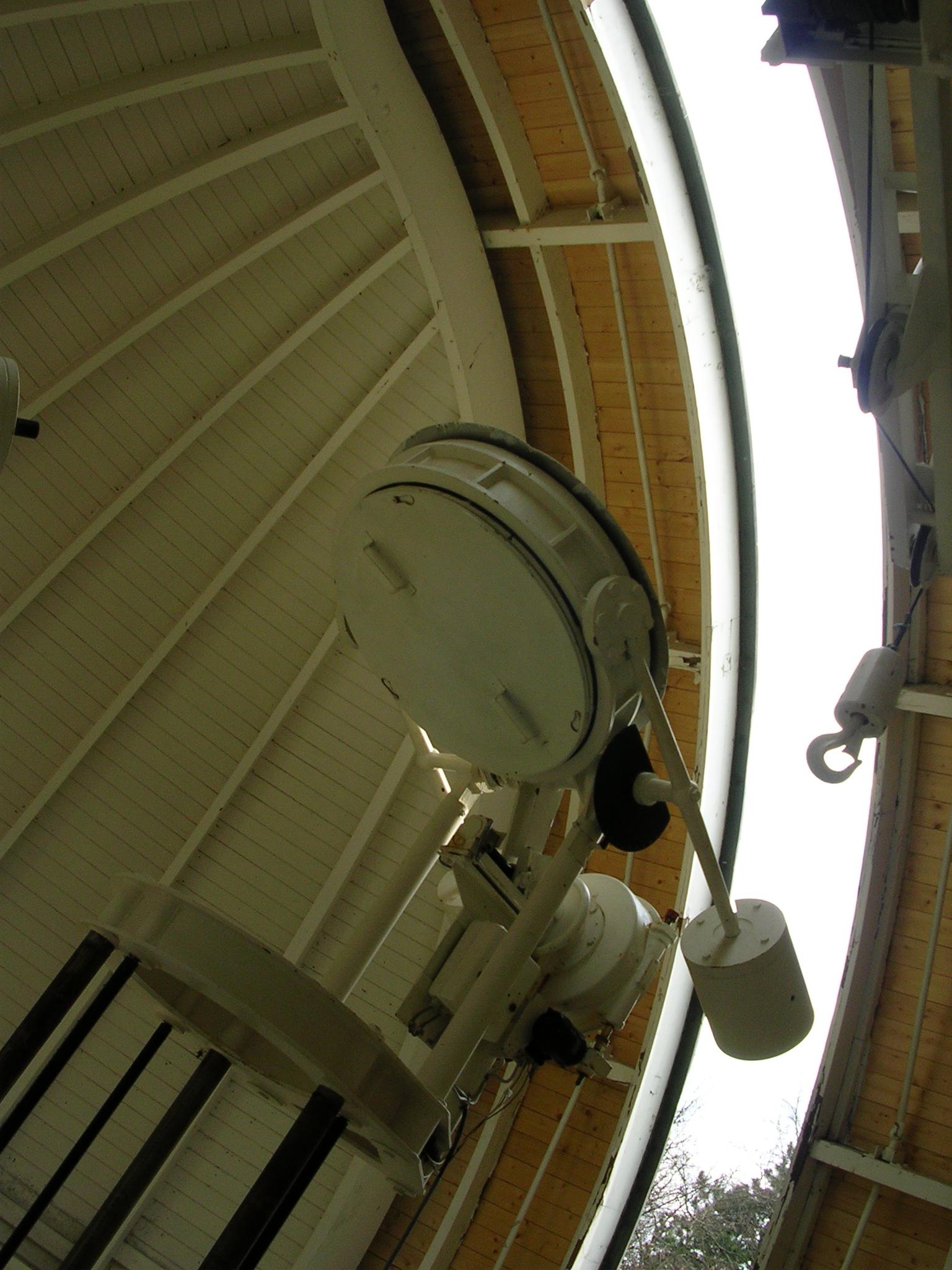

The open dome. | |
 1024x768 Full size |

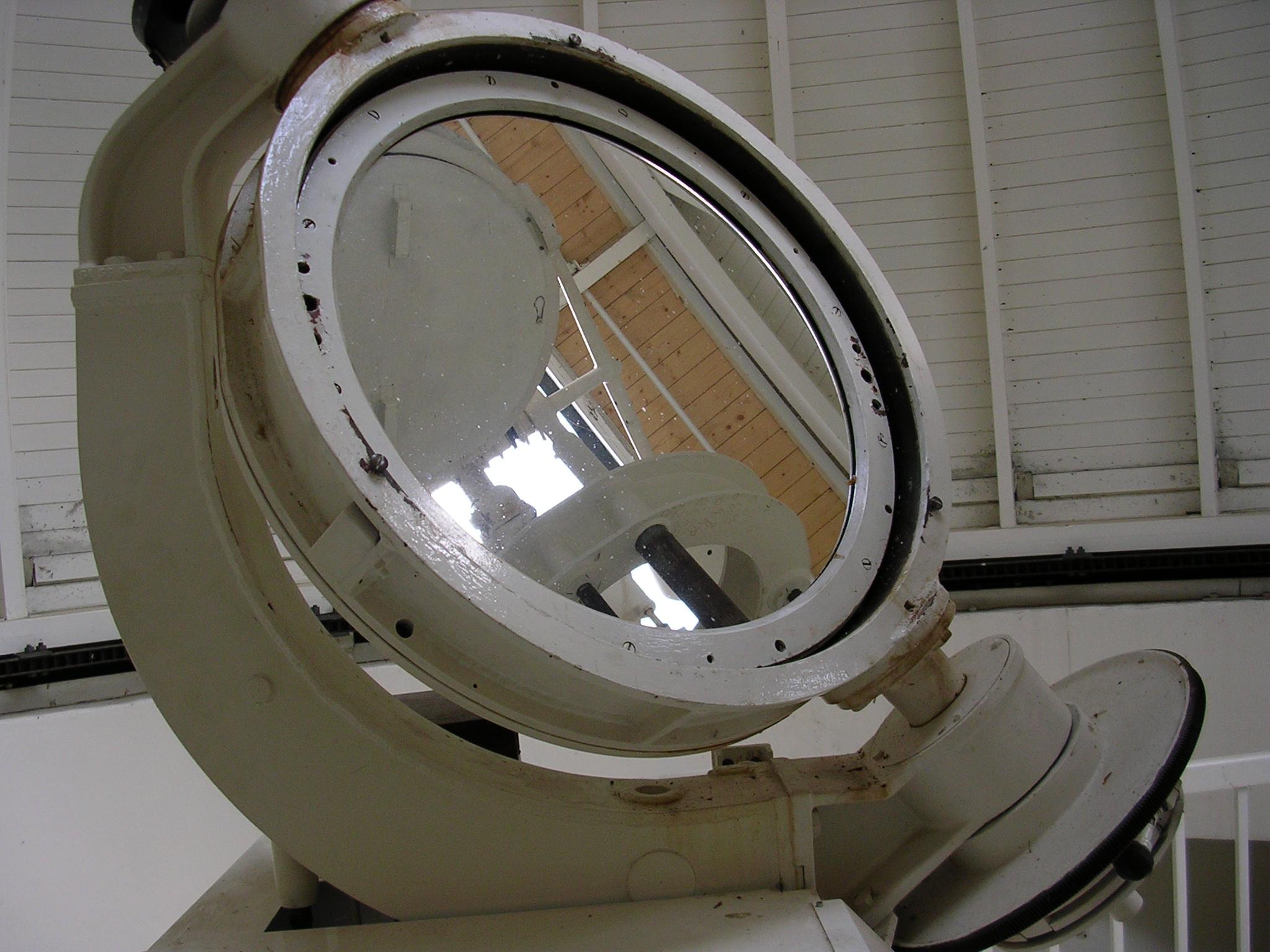

I uncovered one of the mirrors. | |
 1024x768 Full size |
Mark, Mr. Reinsch from Uni Göttingen, and Robert | |
 1024x768 Full size |
A sunny day | |
 1024x768 Full size |

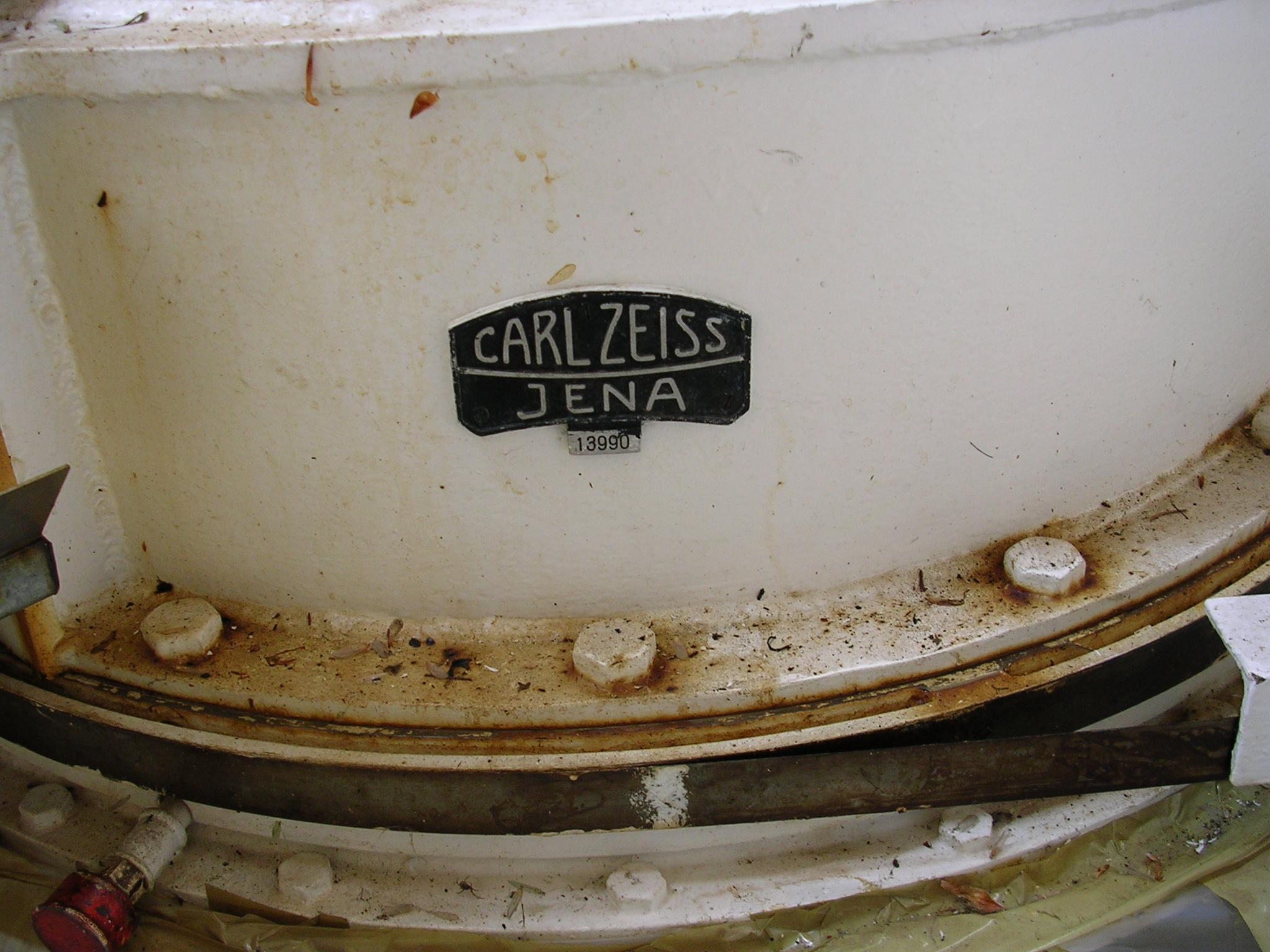

Type plate of the telescope. Must be from the 1940's | |
 1024x768 Full size |
A whole in the floor. The optical telescope mirror at the other end is gone. | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
Impression from the observatory | |
 1024x768 Full size |
More or less? | |
 1024x768 Full size |

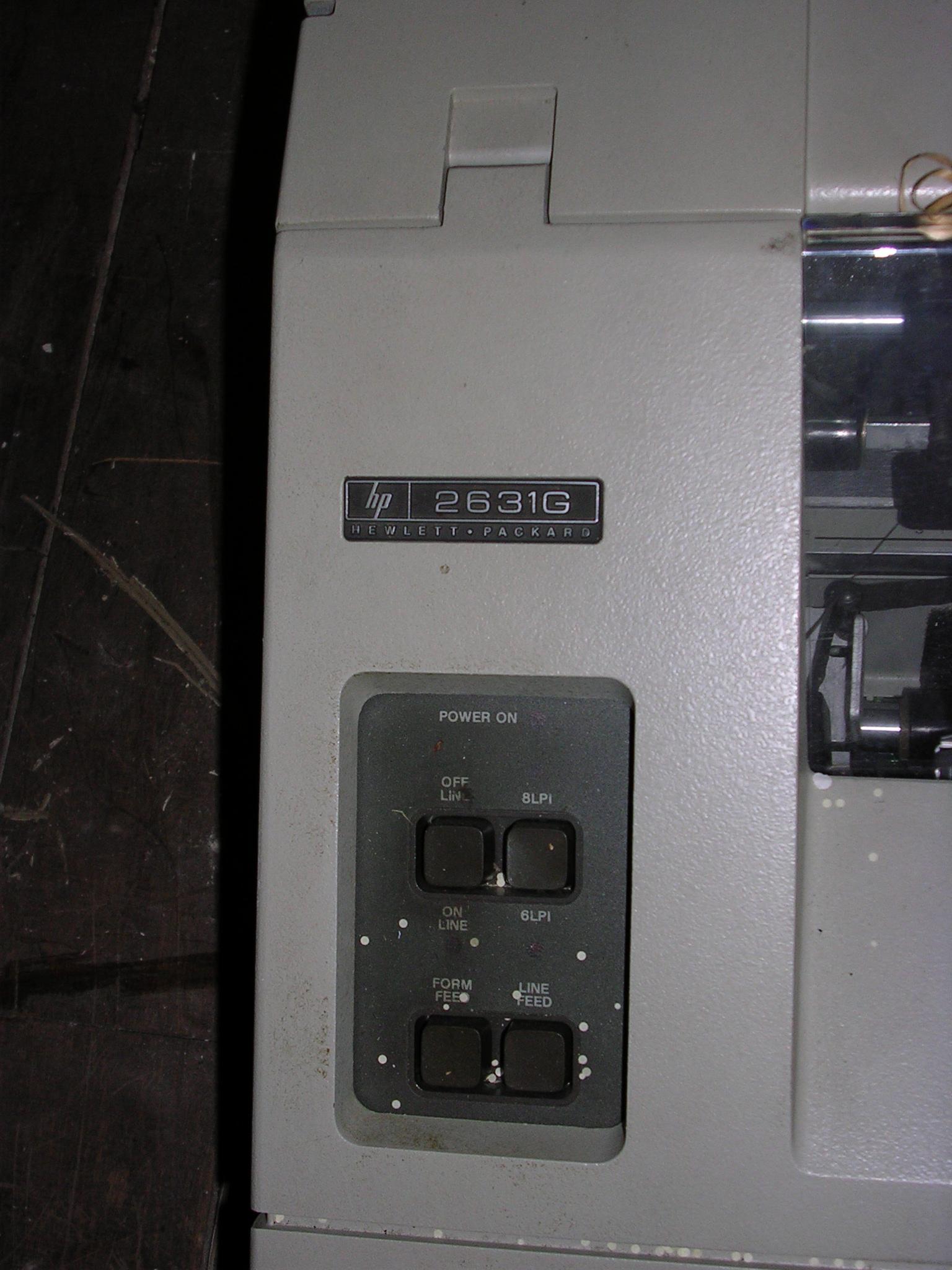

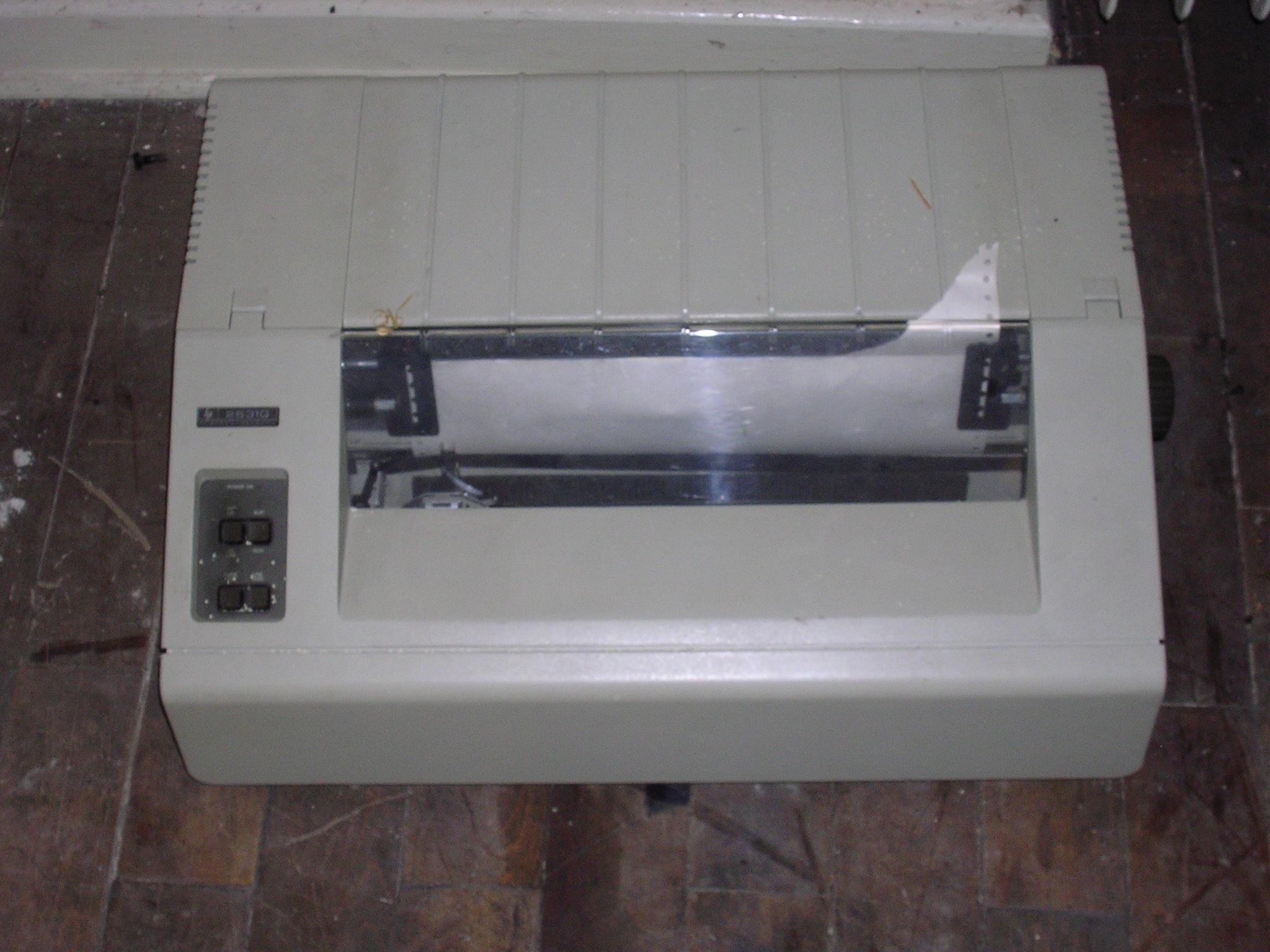

A Helett-Packard HP-IB dot matrix printer. I found it interesting - but left it. It's bulky, no space :-(
If anyone is interested.... | |
 1024x768 Full size |
The printer | |
 1024x768 Full size |

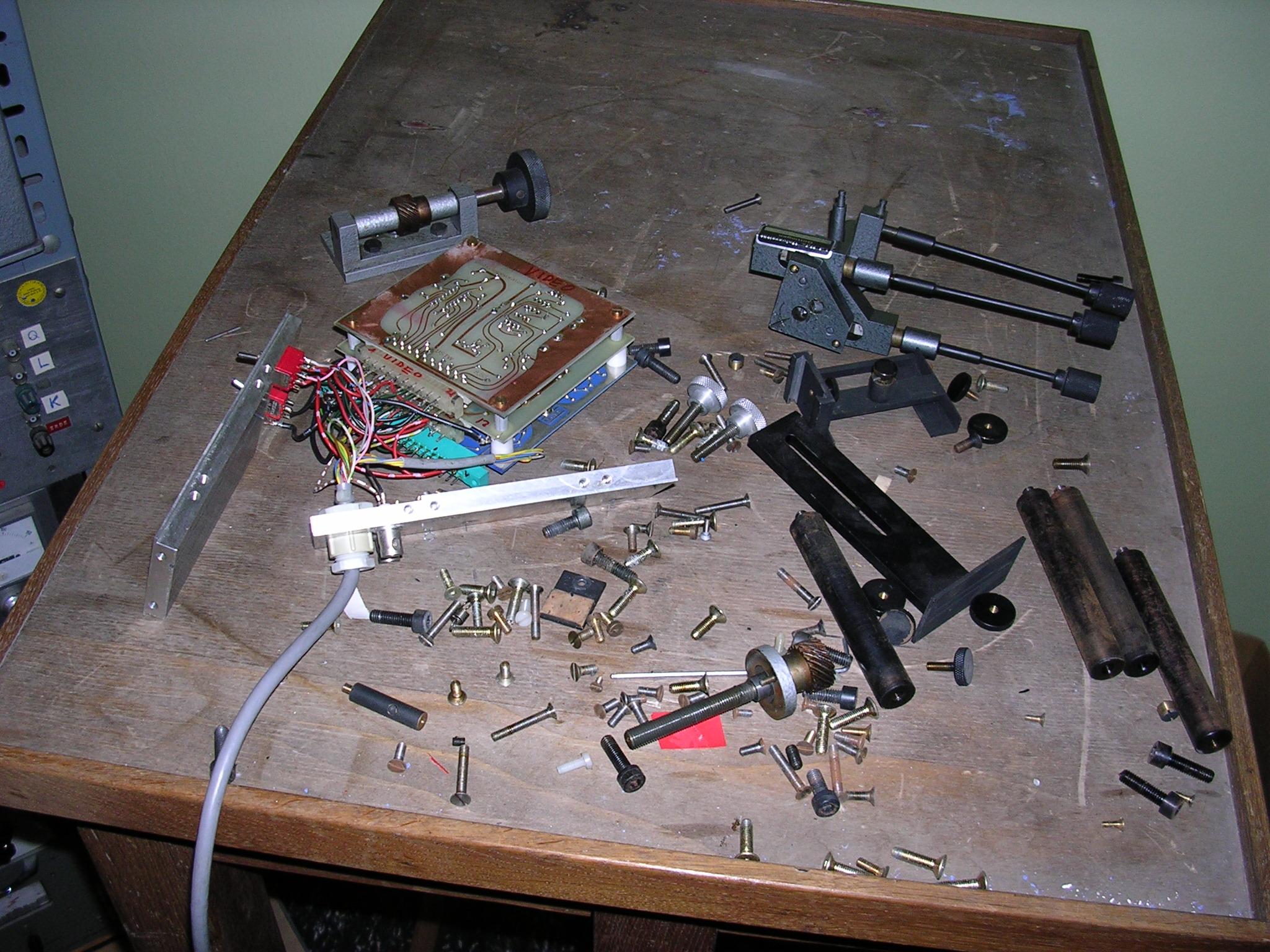

Some parts | |
 1024x768 Full size |

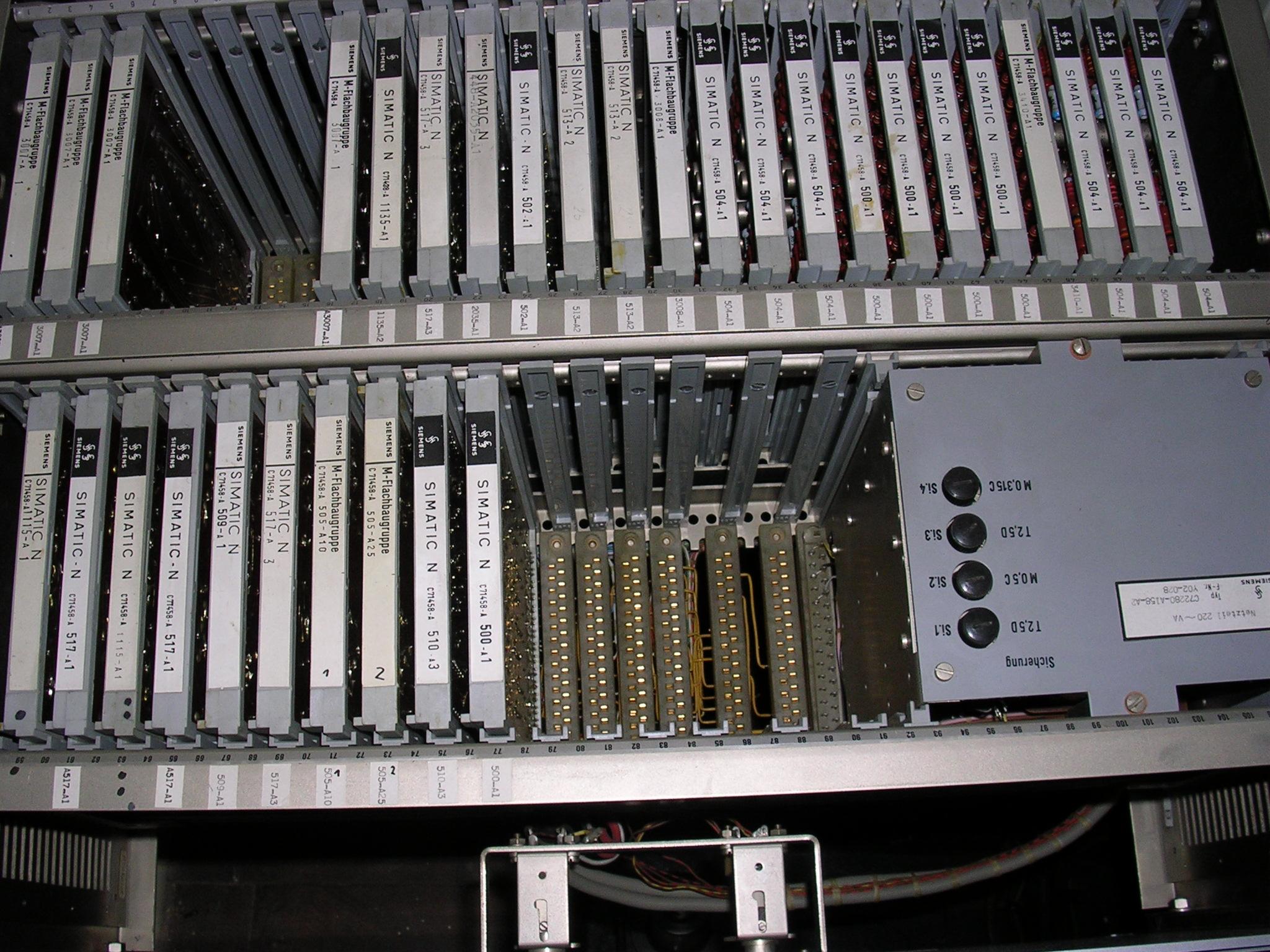

Simatic stuff | |
 1024x768 Full size |
Simatic stuff | |
 1024x768 Full size |

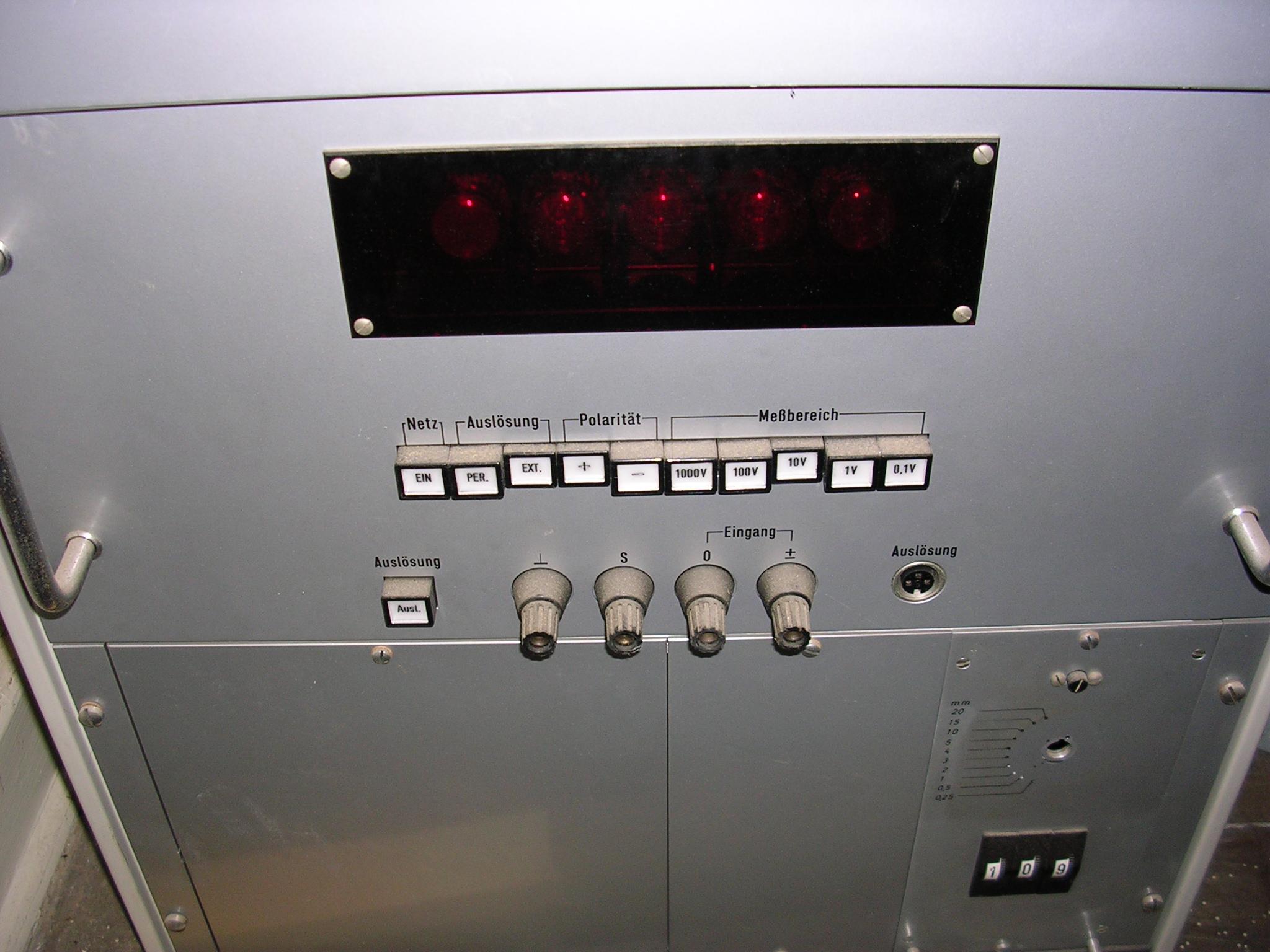

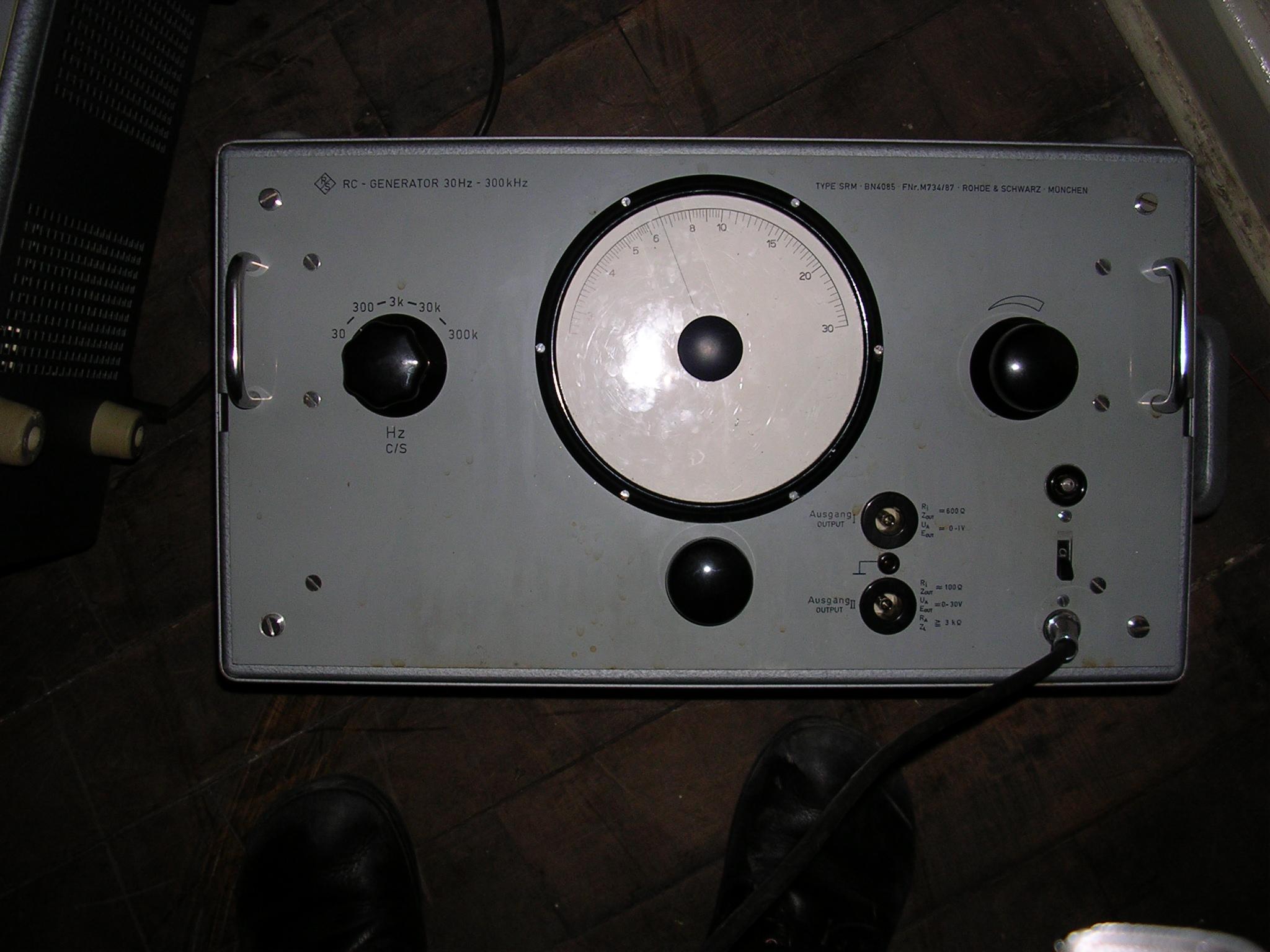

A frequency generator. | |
 1024x768 Full size |
No comment | |
 1024x768 Full size |

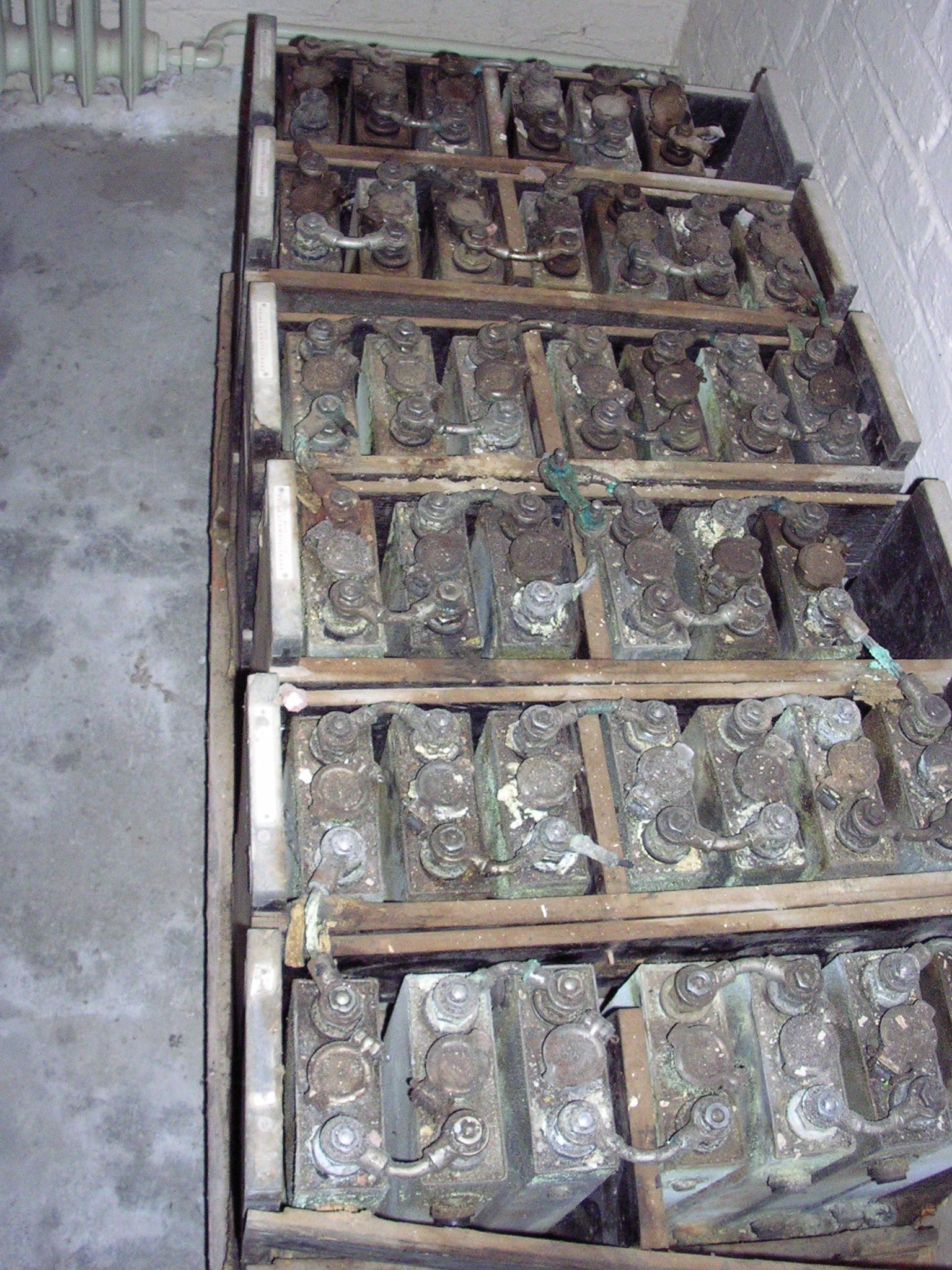

The UPS.... | |
 1024x768 Full size |
The UPS.... | |
 1024x768 Full size |
Volker outside | |
 1024x768 Full size |
The stairs to my collection room. | |
 1024x768 Full size |
Not much clearance. | |
 1024x768 Full size |
Oh...my back.... | |
 1024x768 Full size |

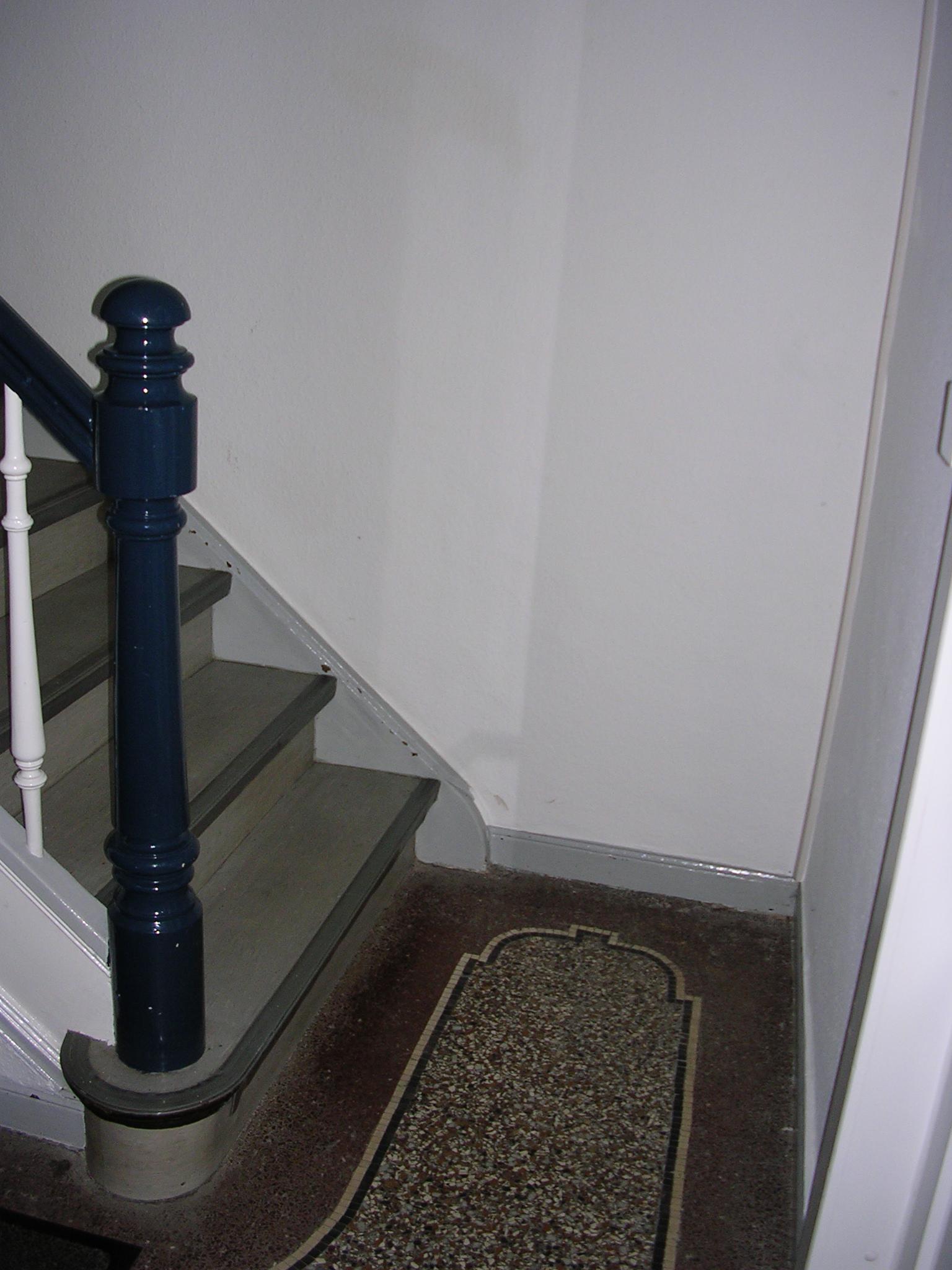

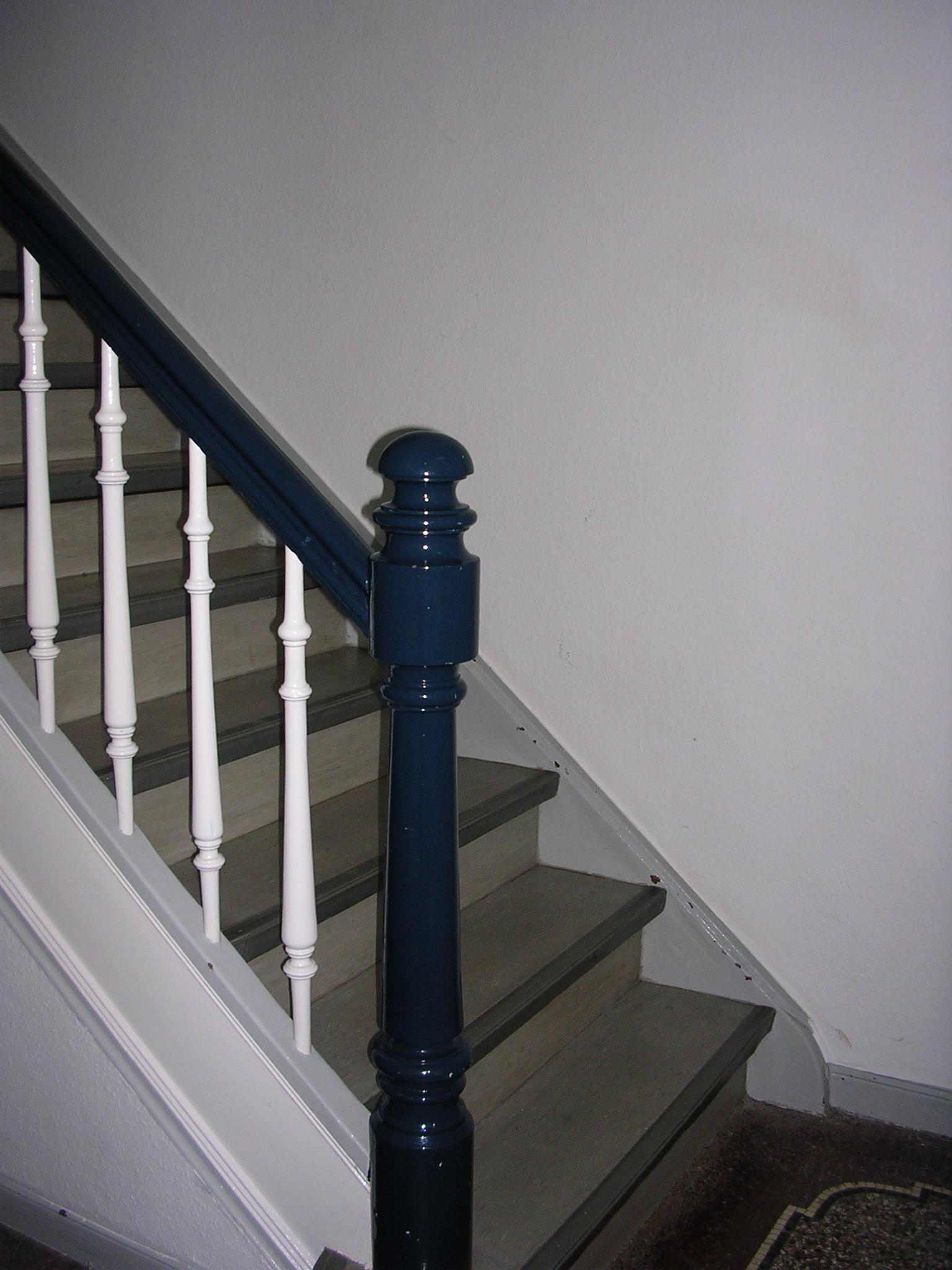

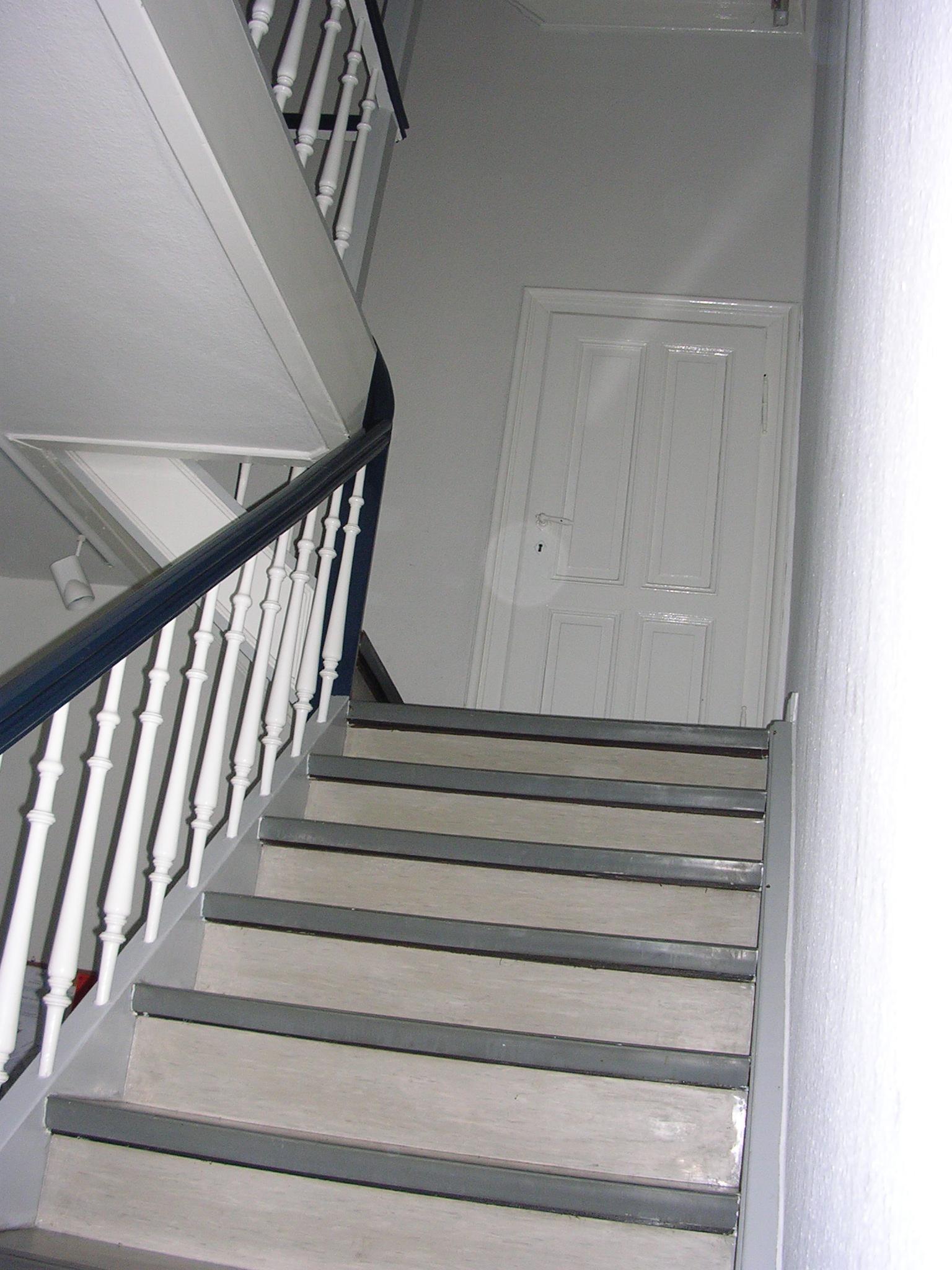

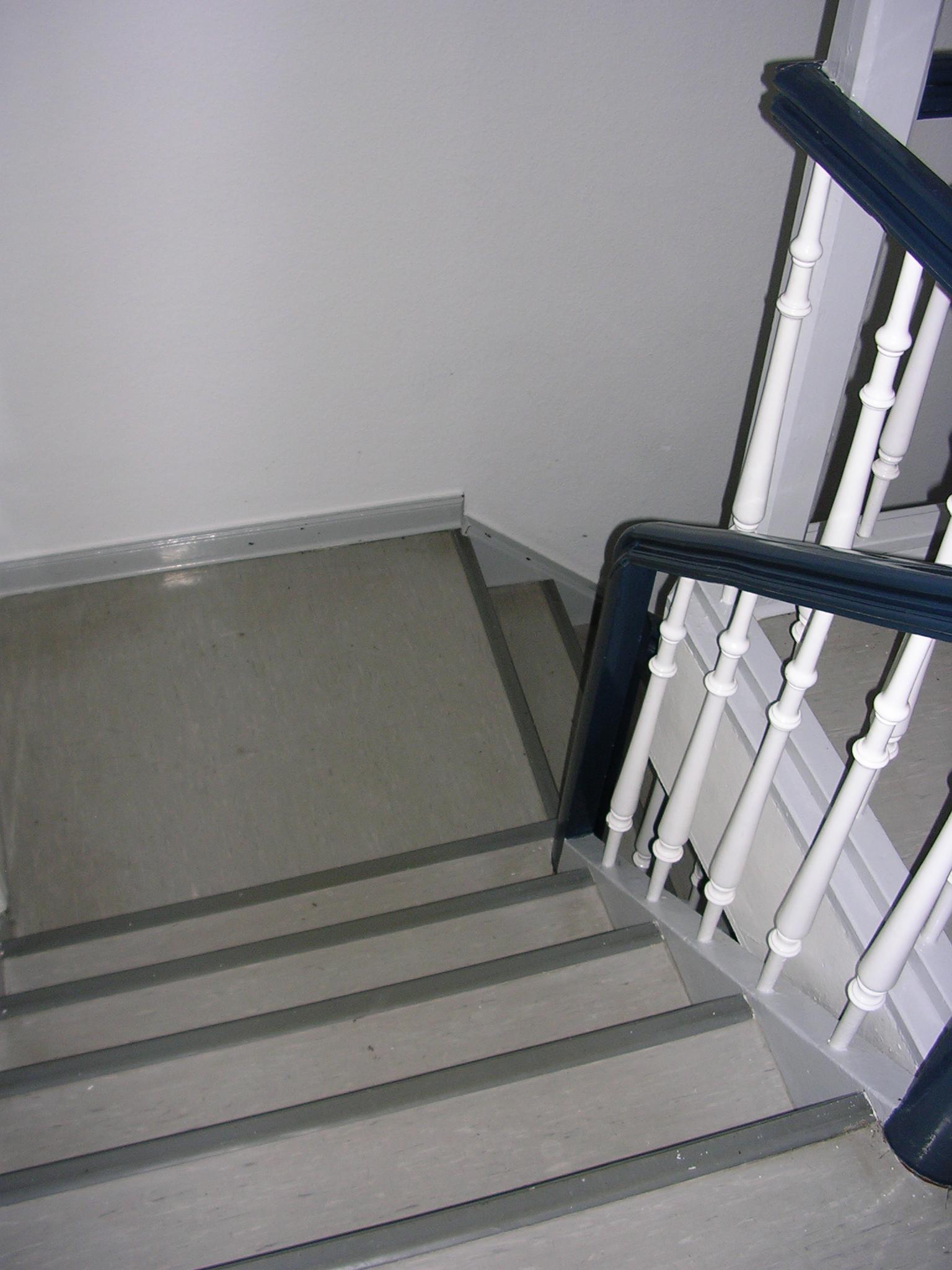

What are stairs without a turn? | |
 1024x768 Full size |
Haha, this photo is taken in the first floor. It's there! Juchuu! Mark, Robert, Volker, THANK YOU!!! | |
 1024x768 Full size |
The cut-off capstan motor cable | |
 1024x768 Full size |

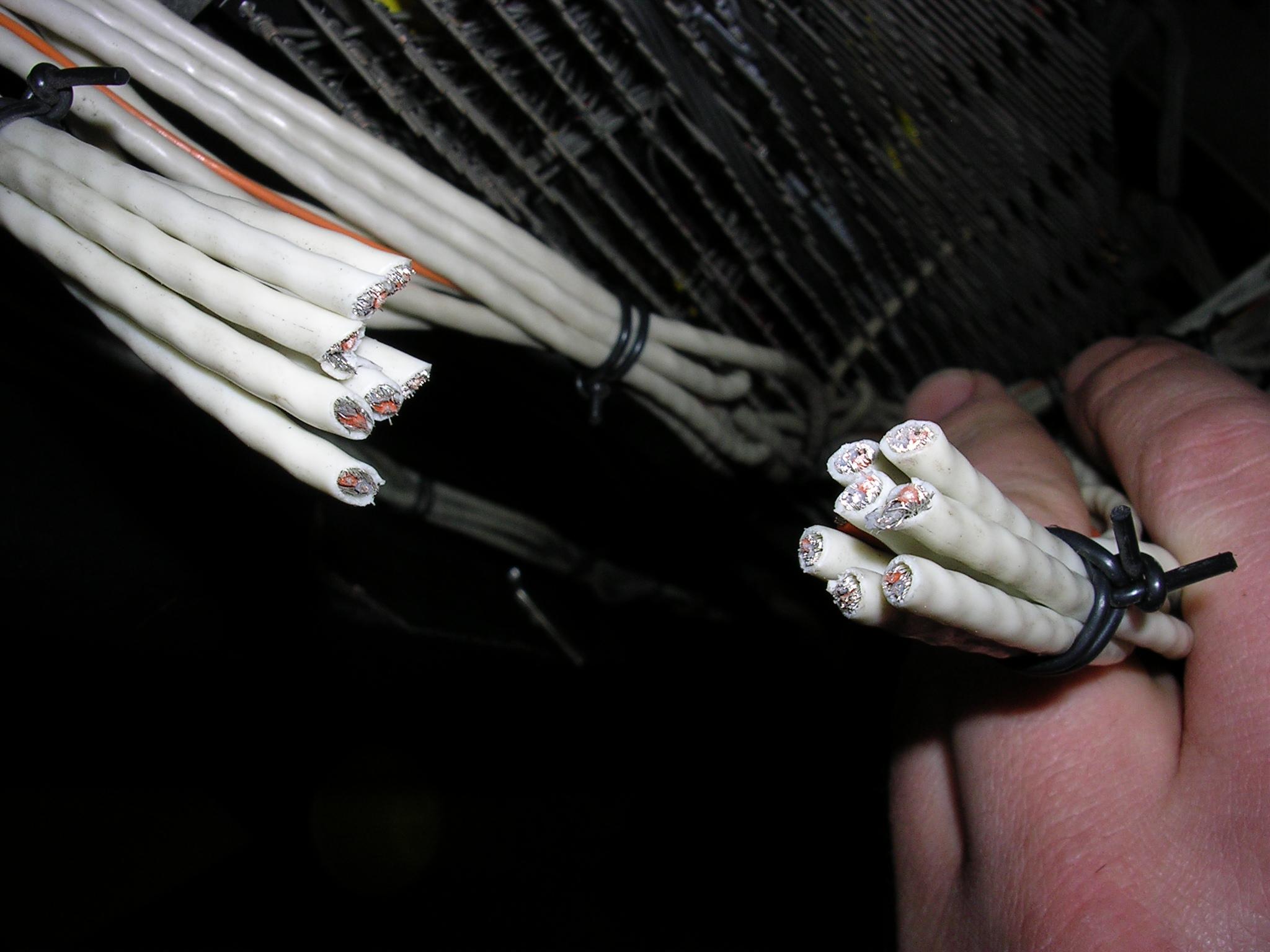

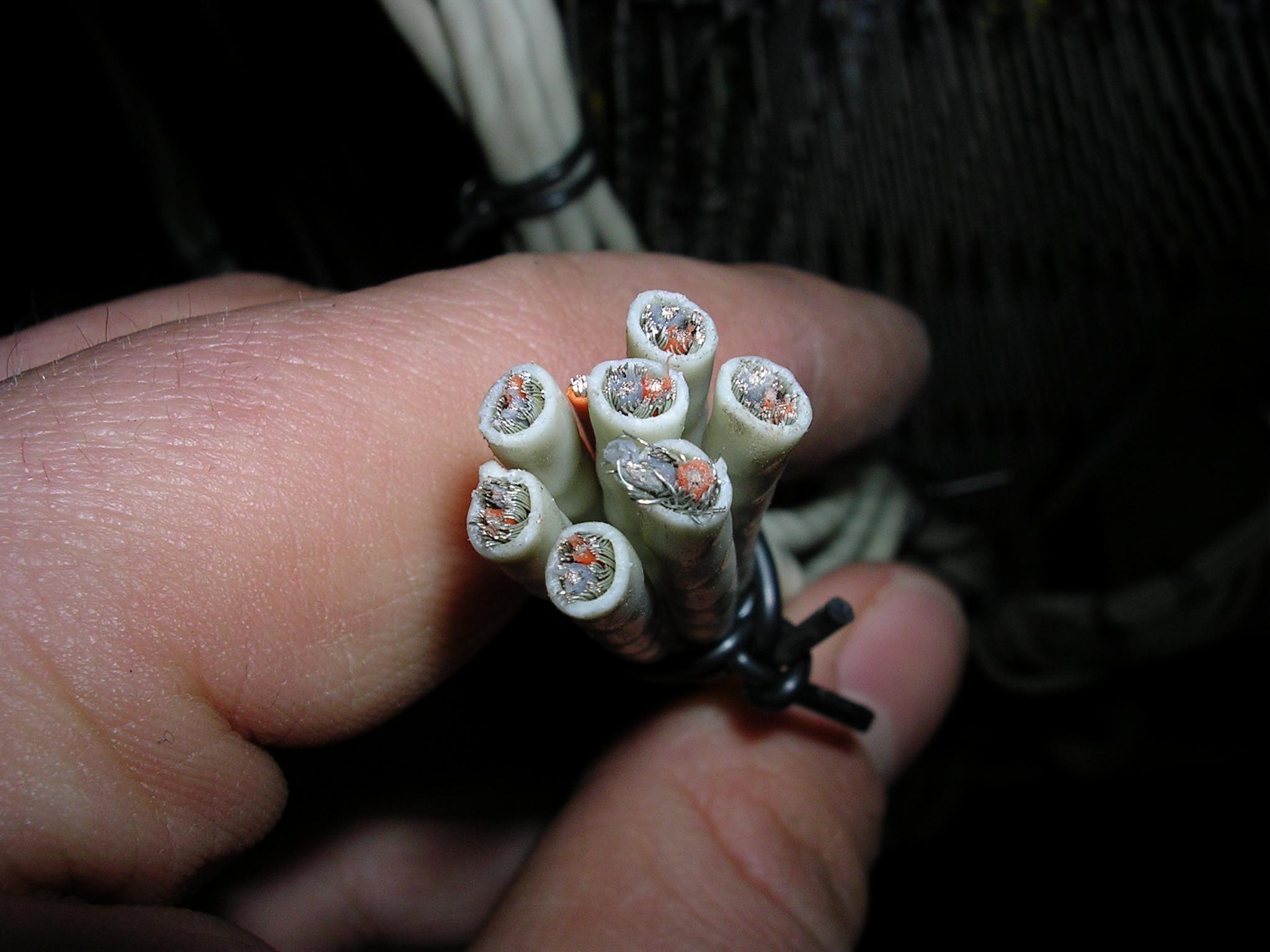

The cut-off head cable. That's awful! | |
 1024x768 Full size |

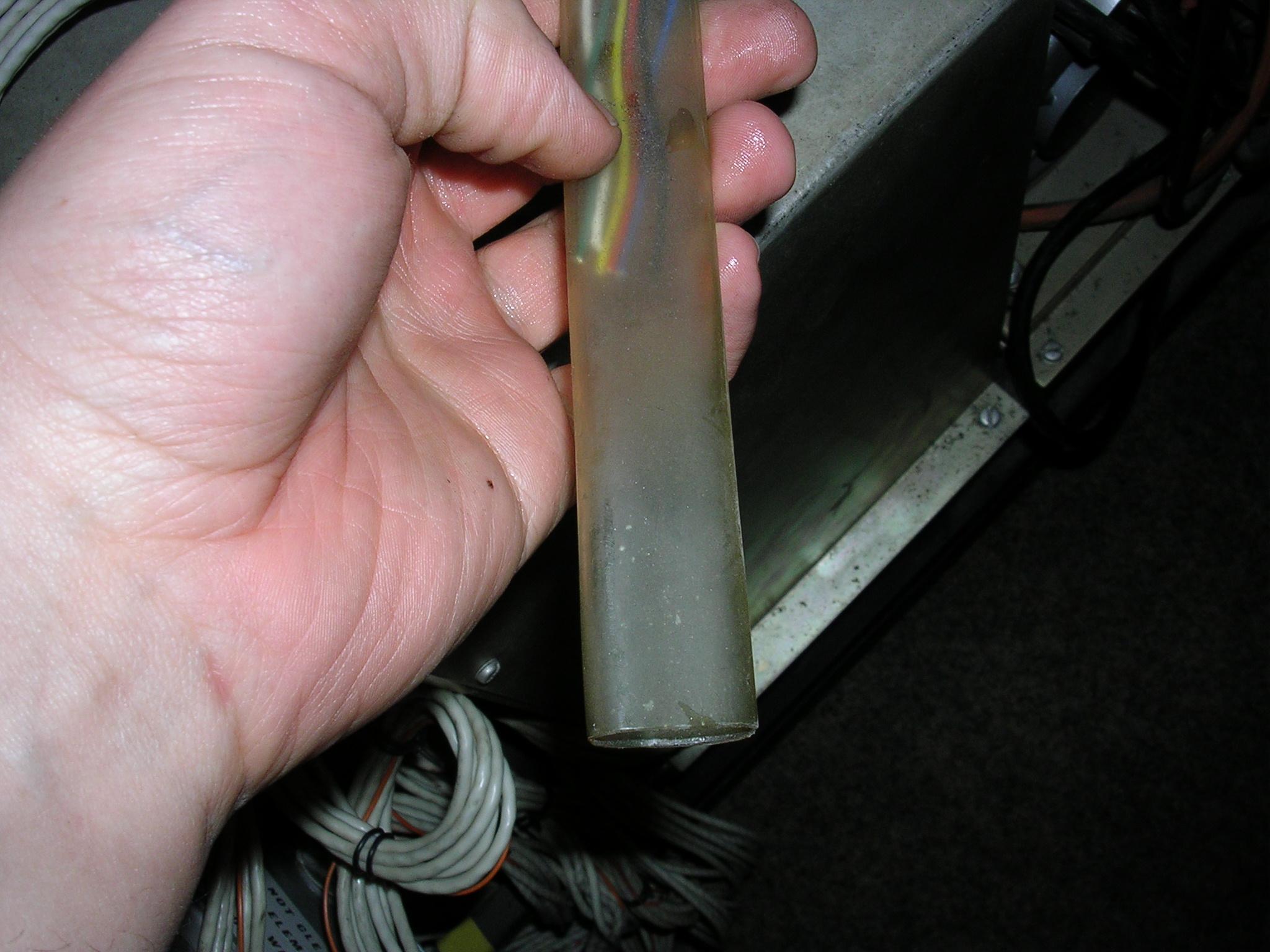

The cut-off head cable, closeup | |
 1024x768 Full size |

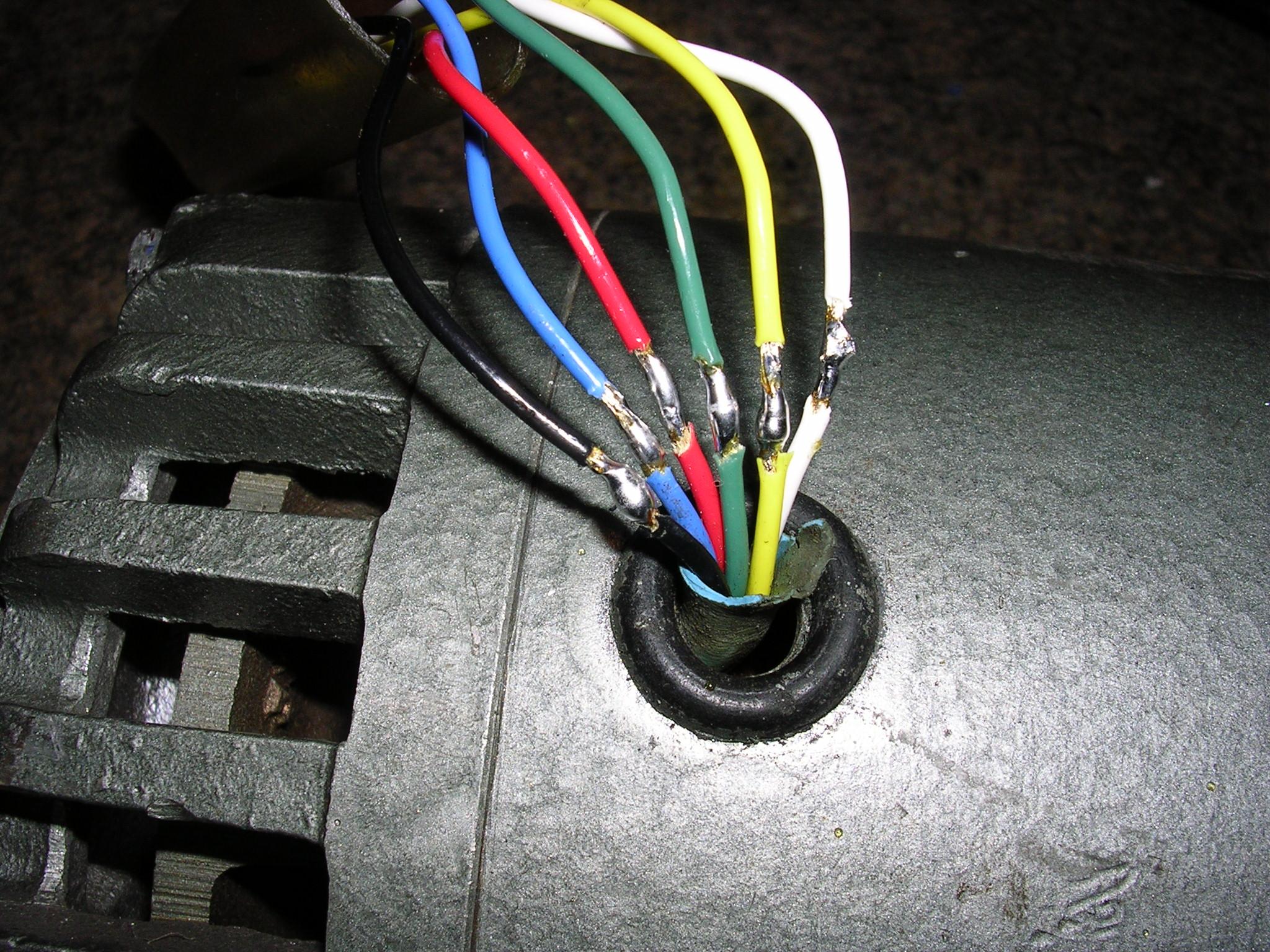

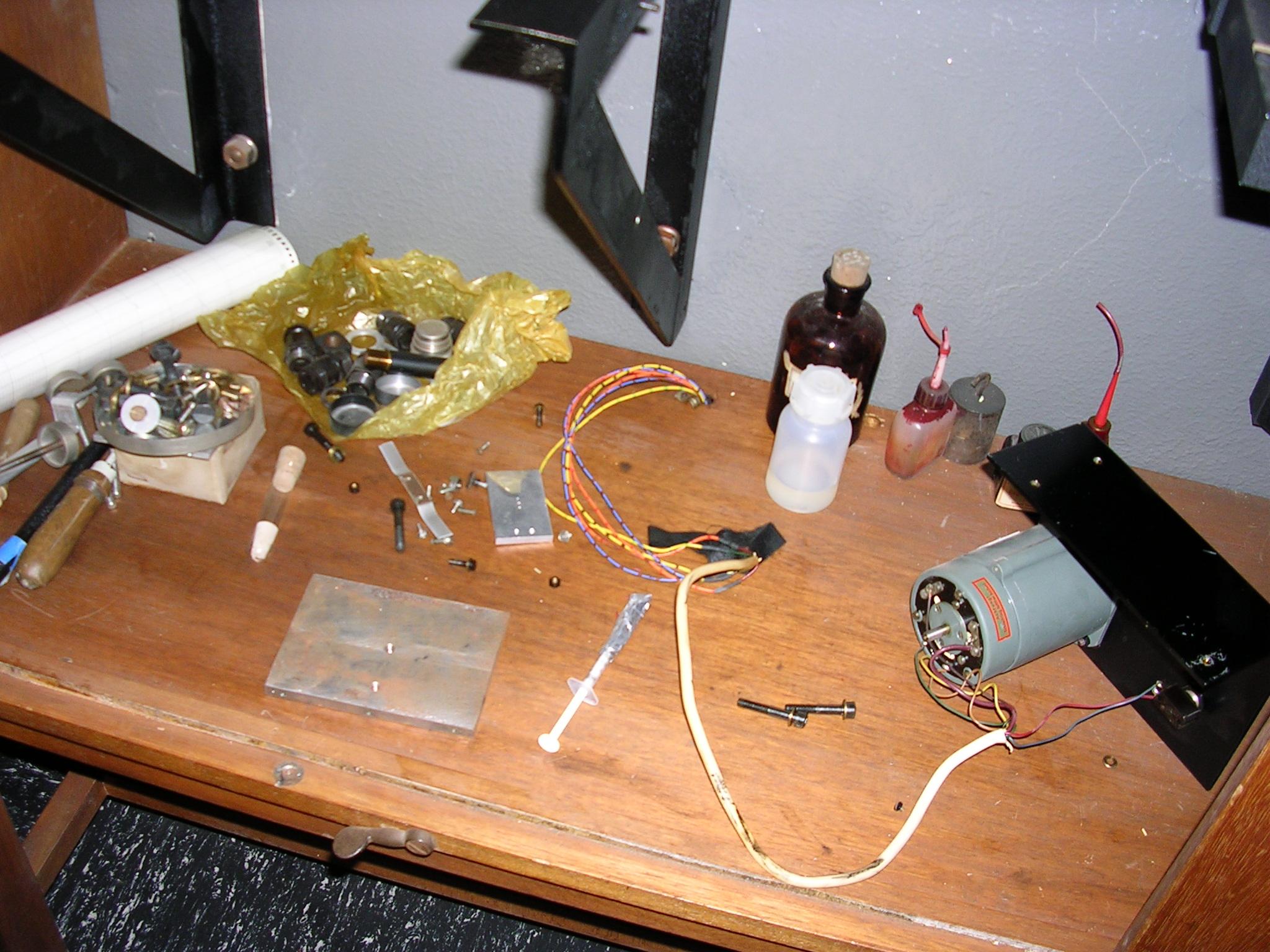

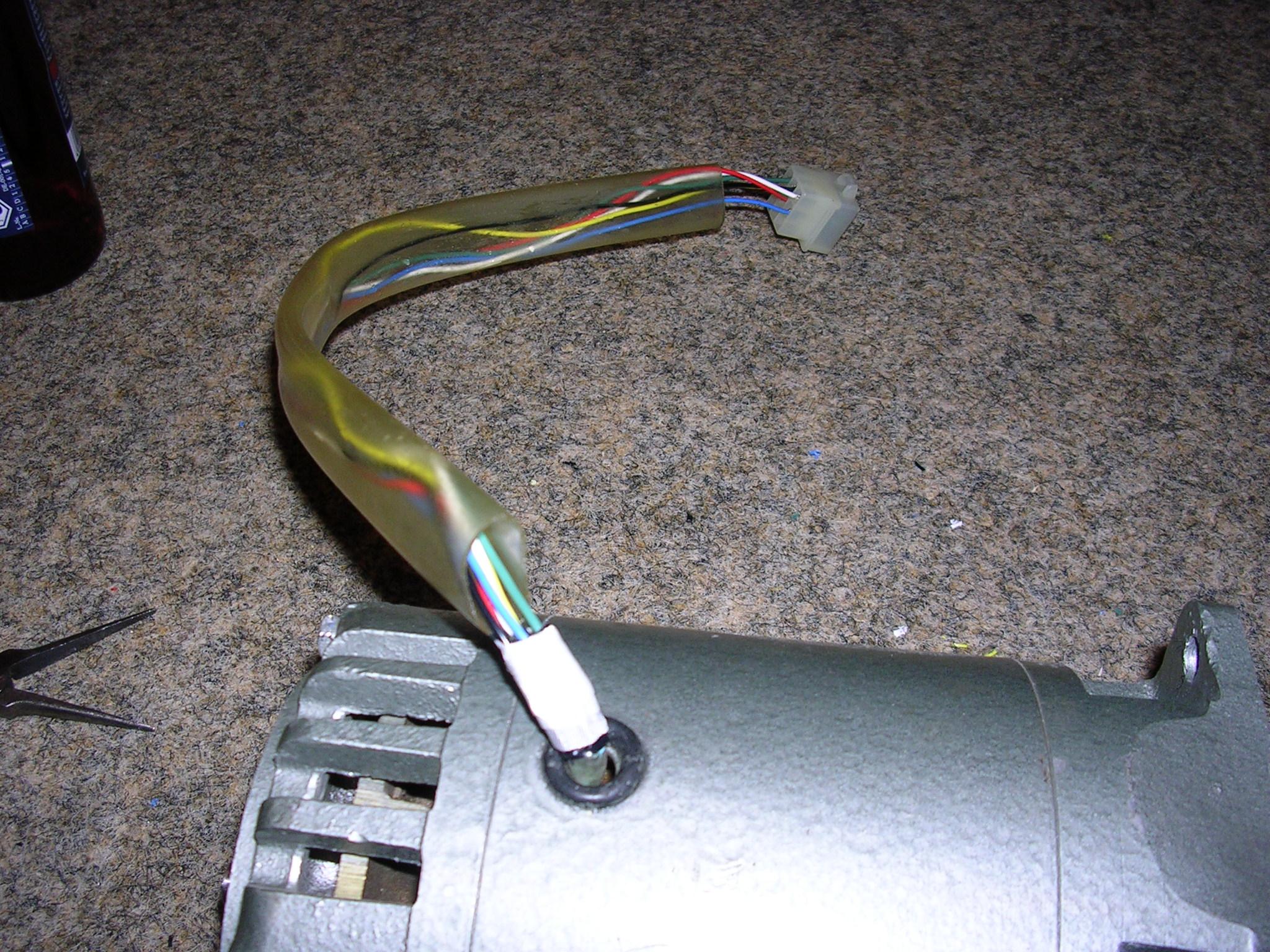

The cut-off capstand motor cable - did I mention that we found the motor laying around on a workbench in another room of the obervatory? Everything seems to be complete. Even the screws are present. Just one washer is lost. | |
 1024x768 Full size |

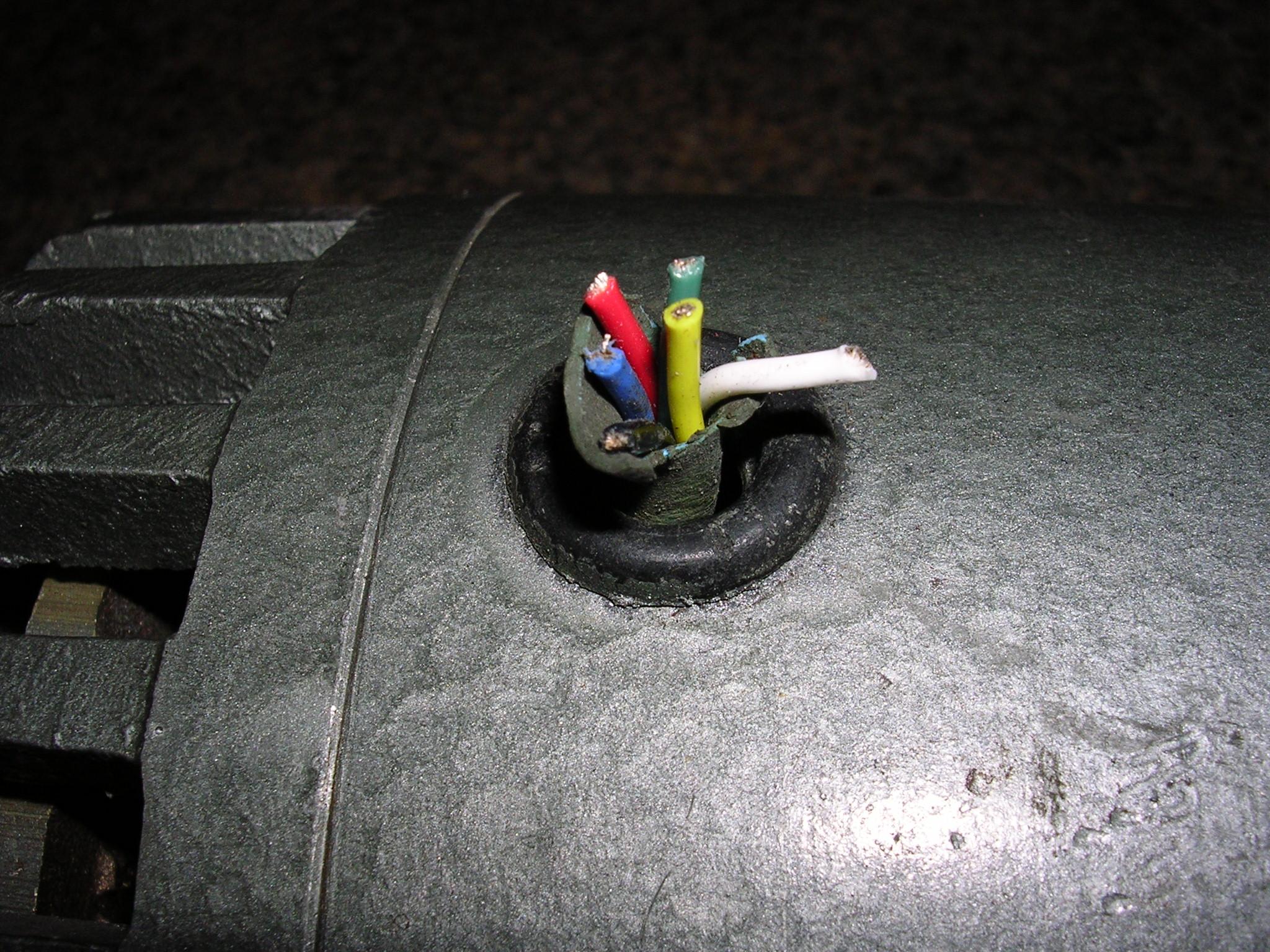

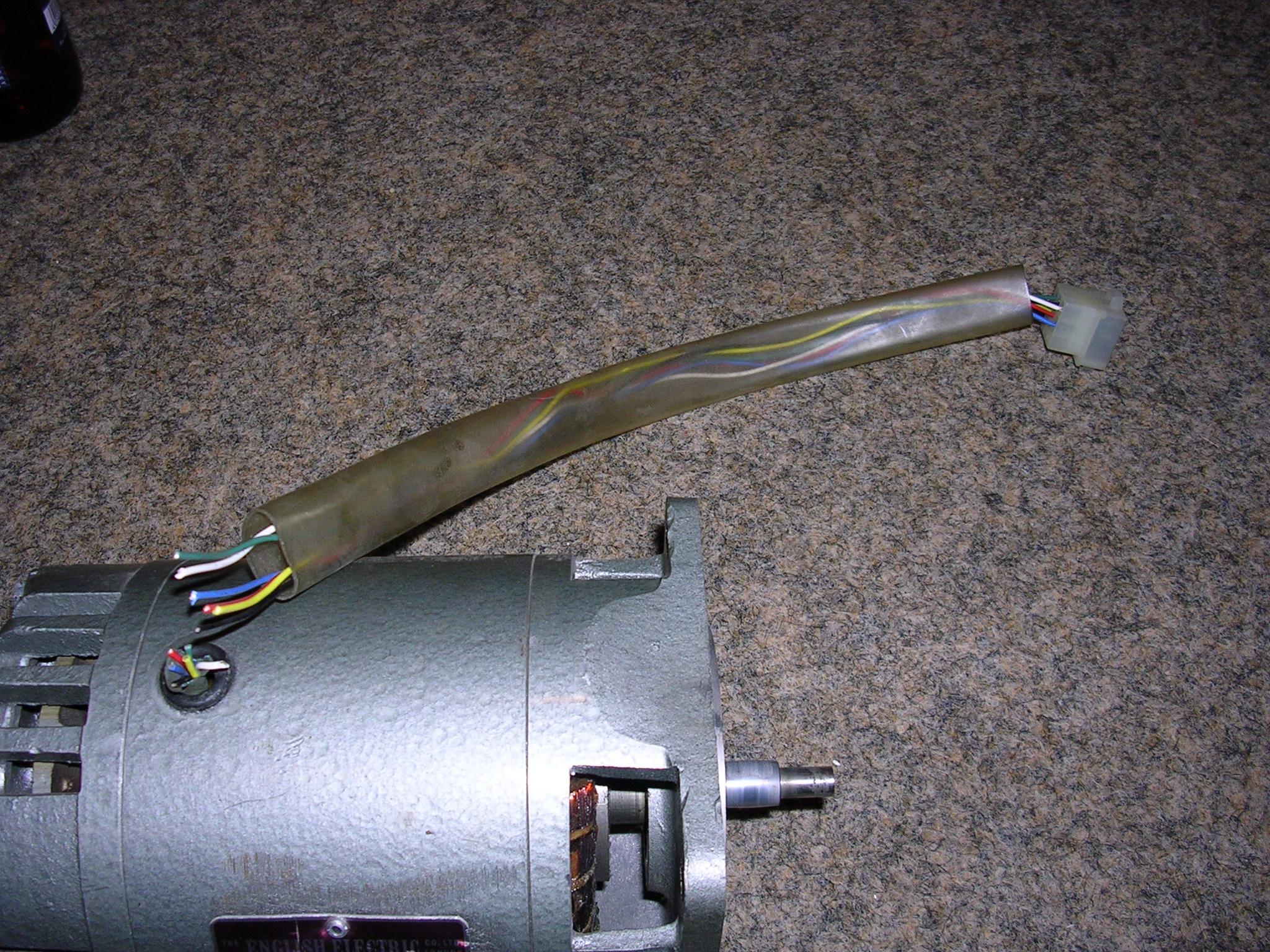

Someone has really been stupid: Why cut the cable if there's a plug??? And why that near at the motor? Don't understand that. | |
 1024x768 Full size |

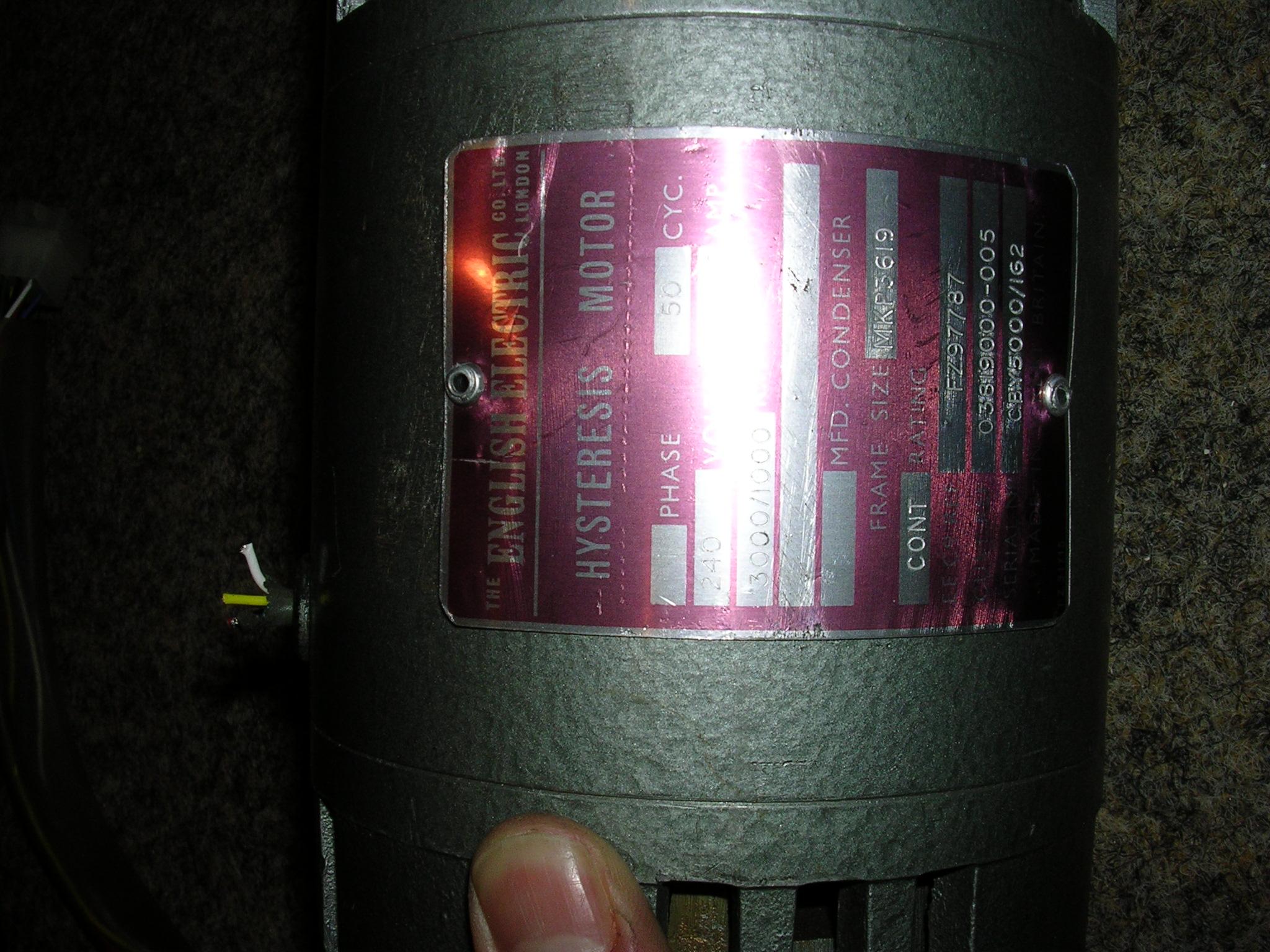

The motor type plate | |
 1024x768 Full size |
Repair has already begun! | |
 1024x768 Full size |
Now it looks like that. | |
 1024x768 Full size |
Oh, it's foamy. Had to vacuum-defoam that. I hate that foam! | |
 1024x768 Full size |

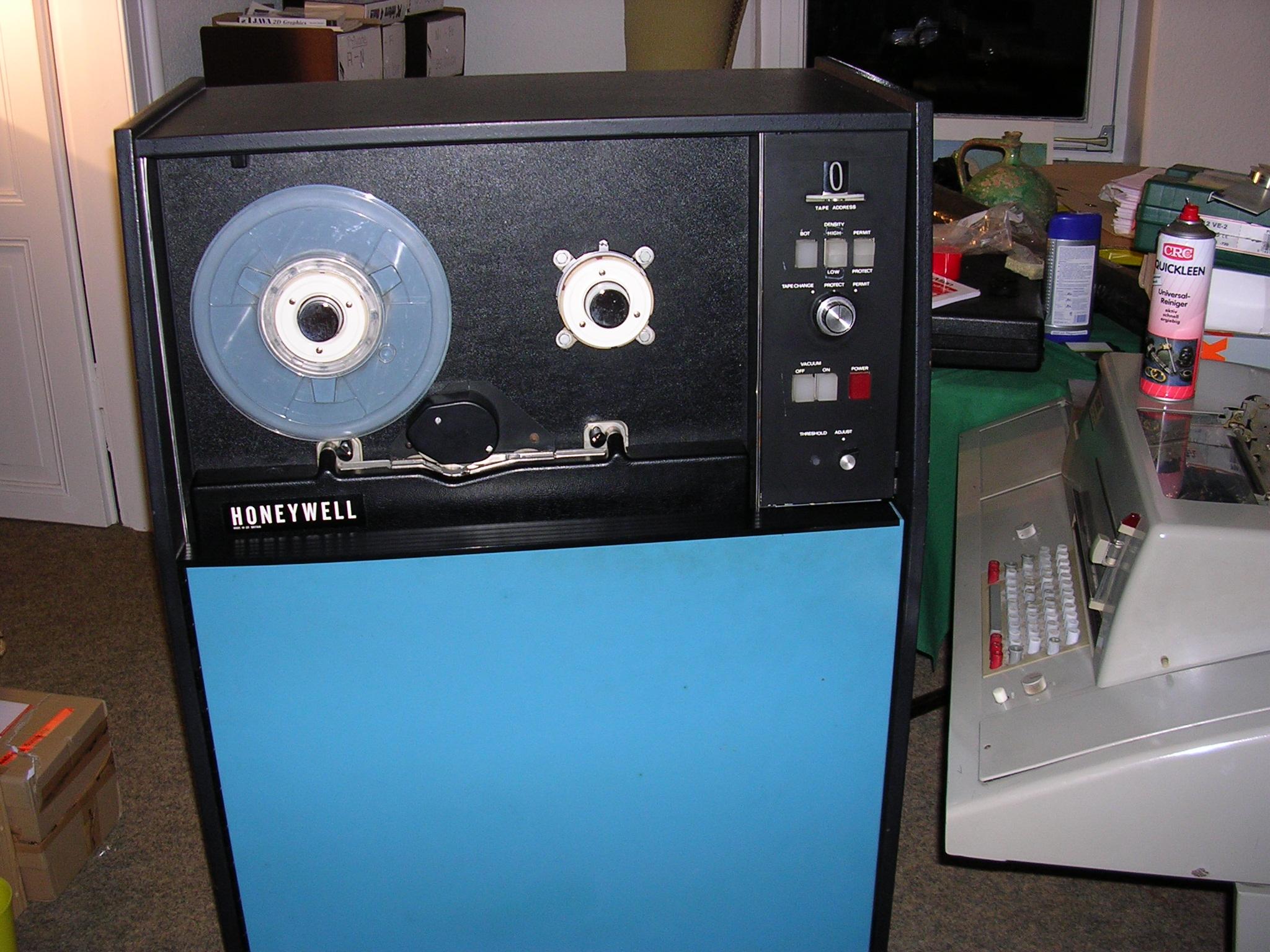

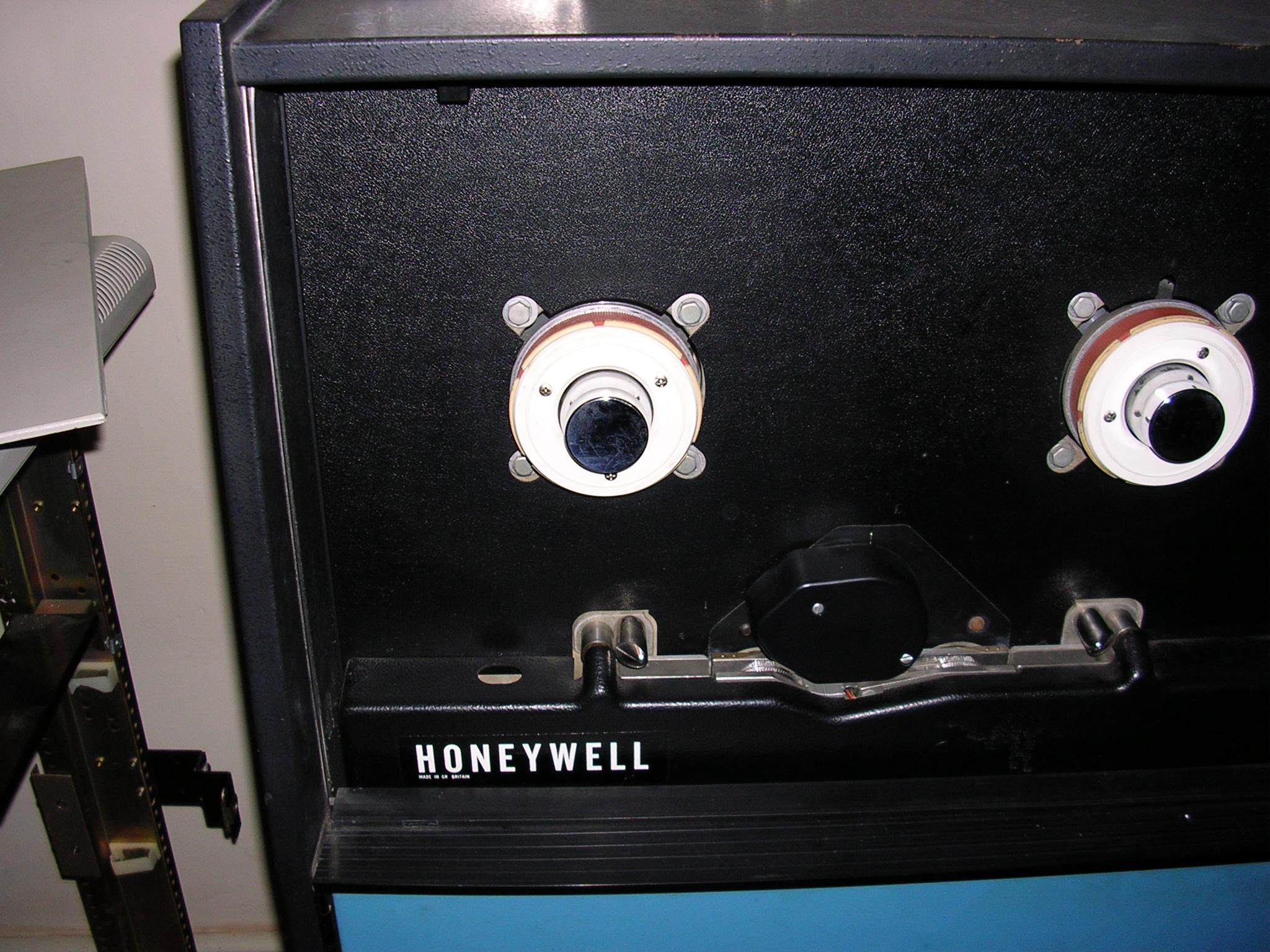

The tape drive after first cleaning | |
 1024x768 Full size |
Powered it up! No fuse blew, no smoke... The machine is nearly electronics-free: Most is controlled by mercury wetted contact relays :-) It loads a tape nearly correct. Vacuum works, most vacuum switches seem to work, too. The regulation of the right wheel seems to work correctly: It releases and breaks the wheel, turns forward and backward according to the tape loop position. On the left side there is some misbehaviour: You have to short one of the emergency stop vaccum switches to get the machine up. And it does not does not wind the tape on the left reel. Only the brake seems to work at the moment. I have a good feeling about the chances to get the machine back to work again :-) | |
